OPTIONAL HOTAS INSTALL
(SKIP TO PAGE 24 FOR EXTENDED HOTAS SETUP)
)
A

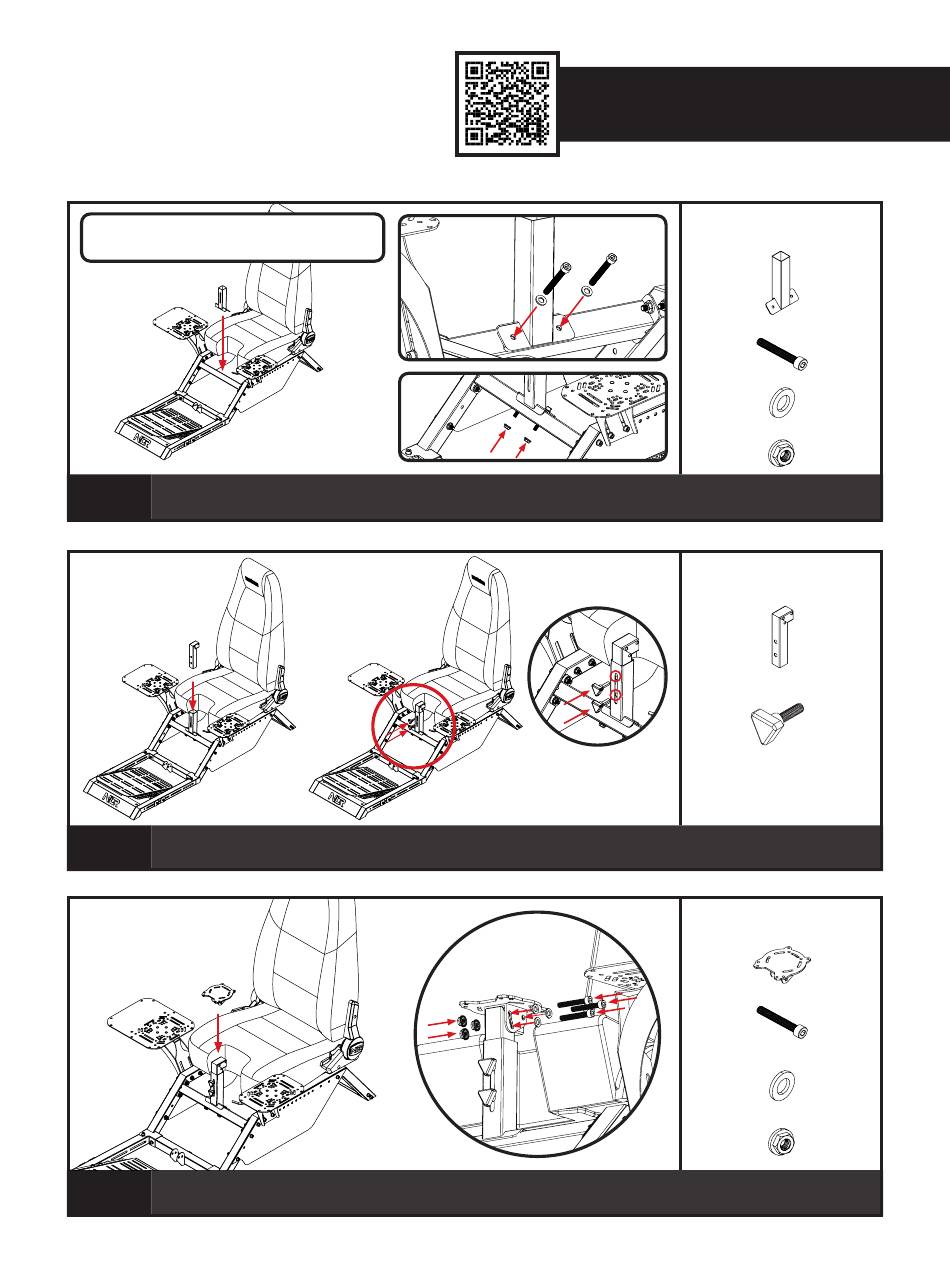

16 A) Align the mounting holes on the HOTAS Outer Pole with the through holes on the Cross Member.
B) Bolt through and secure with 2 x M8 Bolts, Washers, and Flange Nuts.
)
A
17 A) Align the threaded inserts on the HOTAS Inner Pole with the slot on the HOTAS Outer pole.
B) Bolt through and secure with 2 x Knobs.
)
A
18 A) Align the mounting holes on the HOTAS Plate with the through holes on the HOTAS Inner Pole.
B) Bolt through and secure with 3 x M8 Bolts, Washers and Flange Nuts.
)
B
)
B
)
B
19 19
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 1 x HOTAS Outer Pole
• • 2 x M8 55mm Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • 1 x HOTAS Inner Pole
• • 2 x 20mm Knobs
PARTS:
• • 1 x HOTAS Plate
• • 3 x M8 55mm Bolts
• • 3 x M8 16mm Washers
• • 3 x M8 Flange Nuts
