A

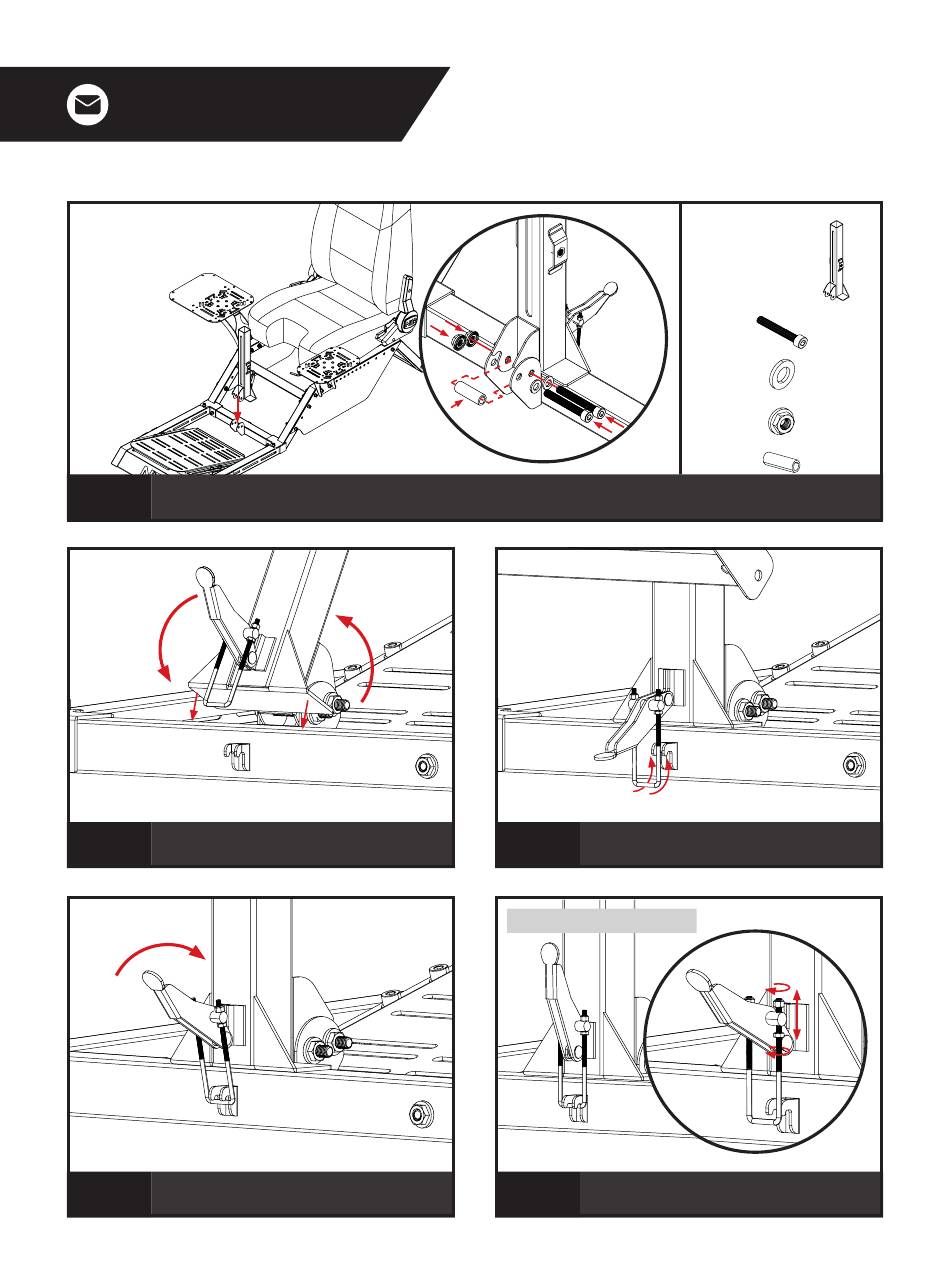

A) Align the mounting holes on the Centre Outer Pole with the holes on the Rudder Frame.
19
B) Align the Barrel Spacer with the holes on the Centre Outer Pole. Bolt through and secure with 2 x M8 Bolts, Washers and
Flange Nuts.
20a
Gently place the Centre Pole on top of the Rudder
Frame and make sure the latch is down.
20c
Make sure the U bolt is sitting properly in the
locking tab and pull the latch until its tight.
)
B
20b
Hook the U-Bolt into the locking tab on the
Rudder Frame.
NOTE: Periodically tighten the nuts.
20d
For a tighter lock, undo the latch, adjust the nuts
at the top of the latch and close it back again.
20 20
PARTS:
• • 1 x Centre Outer Pole
• • 2 x M8 55mm Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
• • 1 x Barrel Spacer
