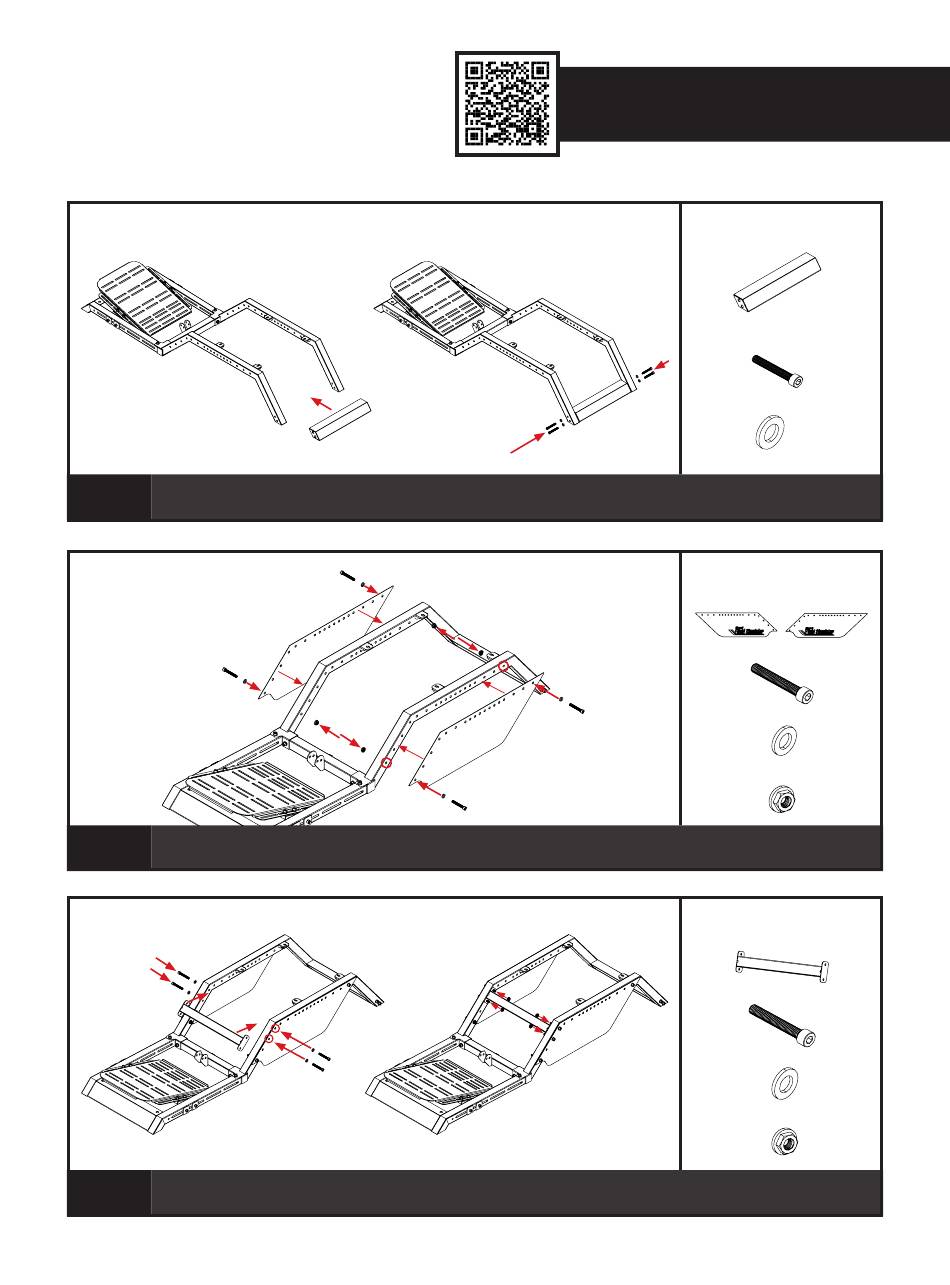

A) Align the threaded inserts on the End Plate with the mounting holes on the Left and Right Seat Frames.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
05 Align the mounting holes on the Side Panels with the through holes on the Seat Frames. Bolt through
and secure with 4 x M8 Bolts, Washers and Flange Nuts.
)
A
06
A) Align the mounting holes on the Cross Member with the through holes on the Left and Right Seat Frames and Side Panels.
B) Bolt through and secure with 4 x M8 Bolts, Washers and Flange Nuts.
)
B
)
B
15 15
Video Instruction: bit.ly/nlrbuild
PARTS:
• • 1 x End Plate
• • 4 x M8 55mm Bolts
• • 4 x M8 Washers
PARTS:
• • 2 x Side Panels
• • 4 x M8 55mm Bolts
• • 4 x M8 Washers
• • 4 x M8 Flange Nuts
PARTS:
• • 1 x Cross Member
• • 4 x M8 55mm Bolts
• • 4 x M8 Washers
• • 4 x M8 Flange Nuts
