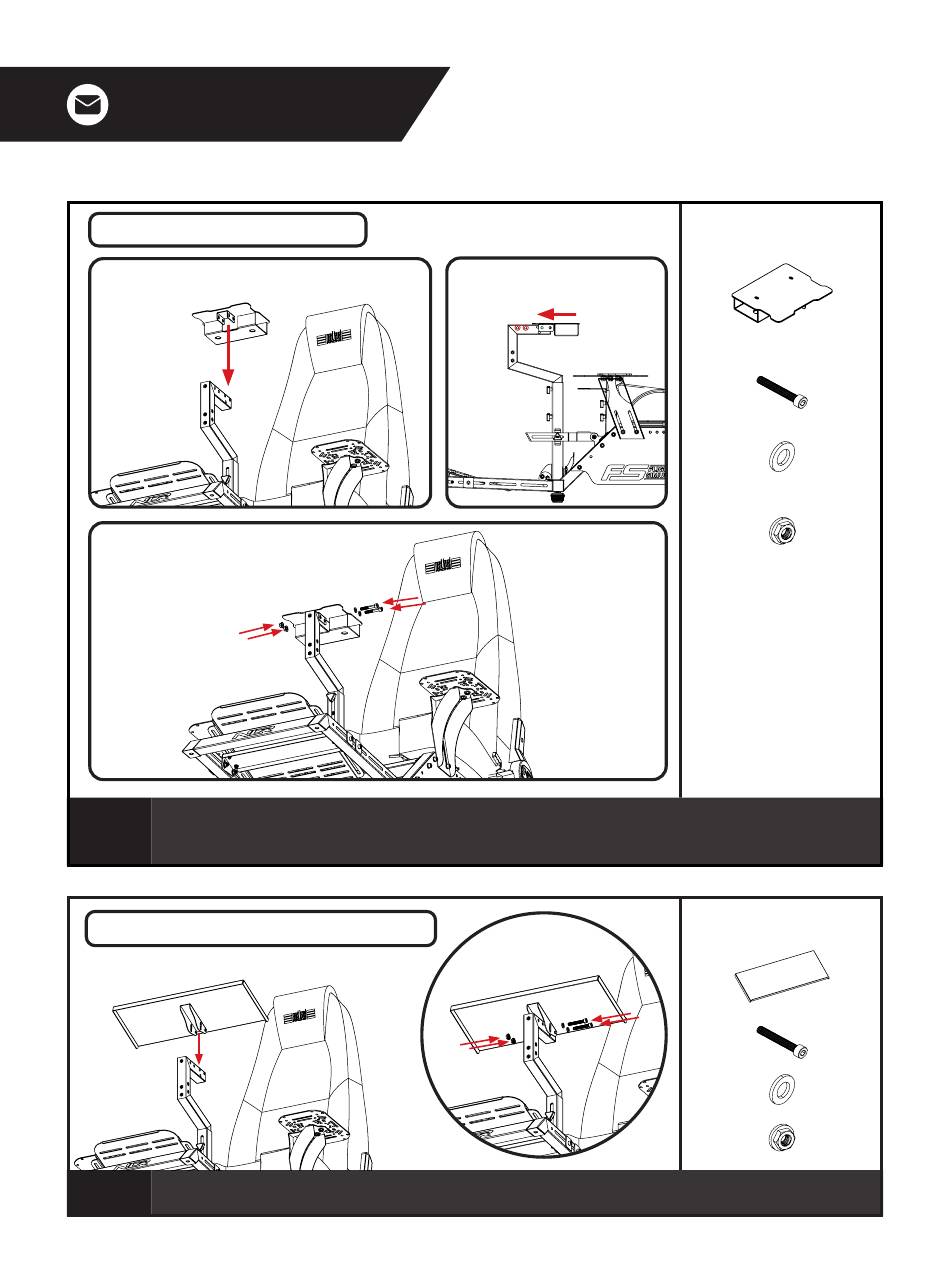

YOKE/CLAMP PLATE INSTALL
)
A
)
C
A) Place the Clamp Plate on top of the Centre Inner Pole.
22c
B) Slide the Clamp Plate forward and align the mounting holes on the Centre Inner Pole and Clamp Plate.
C) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
CENTRE KEYBOARD PLATE INSTALL
)
A
22d
A) Align the mounting holes and slots on the Keyboard Plate with the through holes on the Centre Inner Pole.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
)
B
)
B
22 22
PARTS:
• • 1 x Clamp Plate
• • 2 x M8 55mm Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • 1 x Keyboard Plate
• • 2 x M8 55mm Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
