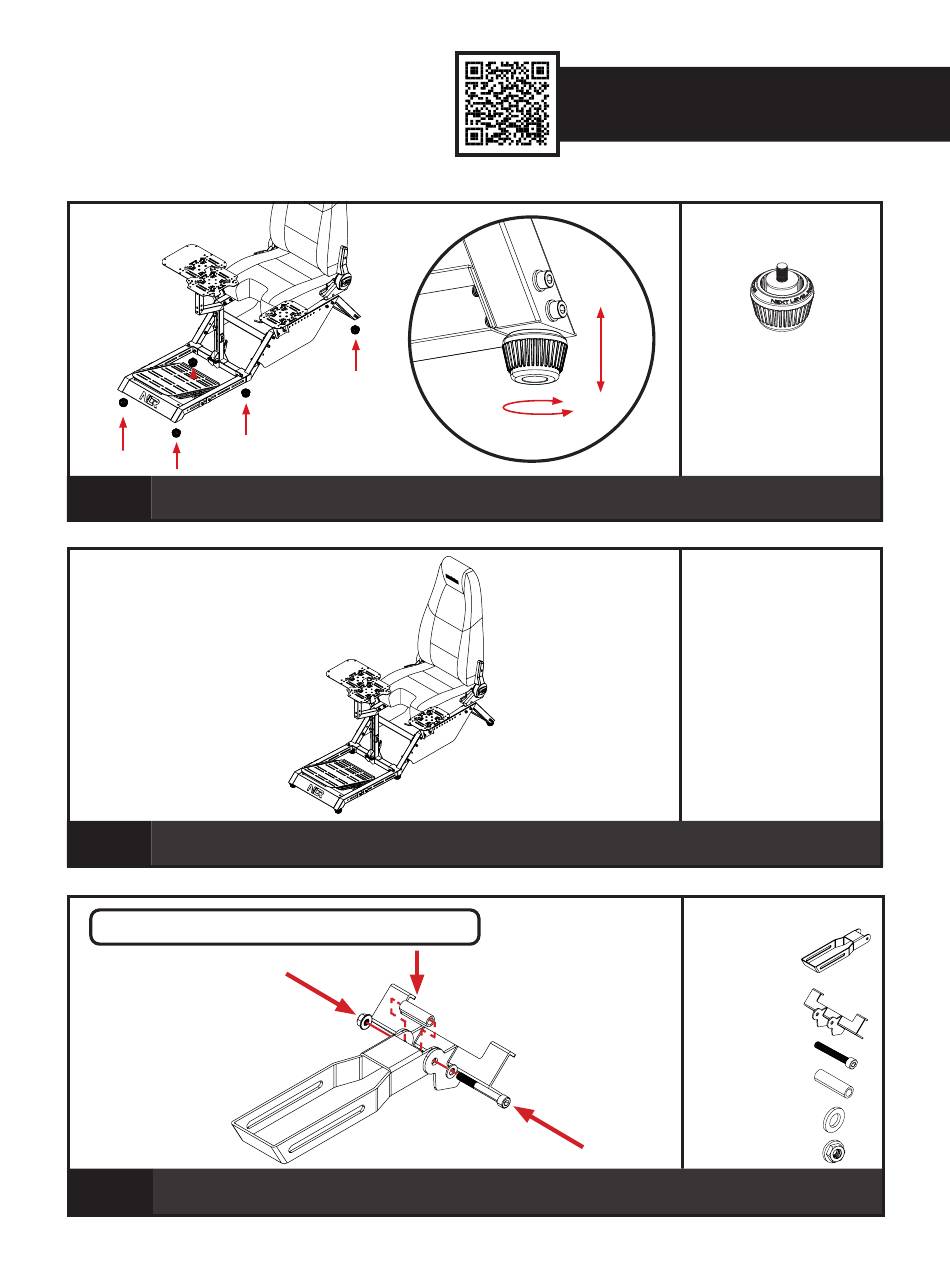

A) Align the Adjustable Feet with the threaded inserts on the bottom of the Rudder Frame and Seat Frames.
B) Lock into place by twisting the Adjustable feet into the threaded inserts. To raise an Adjustable Feet, twist anti-clockwise.
24
Your Flight Simulator cockpit is complete.
OPTIONAL SUPPORT BRACKET INSTALL
25 Align the pivot point on the Support Bracket with the mounting holes on the Support Bracket Mount.
Bolt through and secure with 1 x M8 Bolt, Washer, Barrel Spacer and Flange Nut.
Video Instruction: bit.ly/nlrbuild
)
B
23 23
PARTS:
• • 6 x Adjustable Feet
PARTS:
• • NIL
PARTS:
• • 1 x Support Bracket
• • 1 x Support Bracket Mount
• • 1 x M8 70mm Bolt
• • 1 x Barrel Spacer
• • 1 x M8 Washer
• • 1 x M8 Flange Nut
