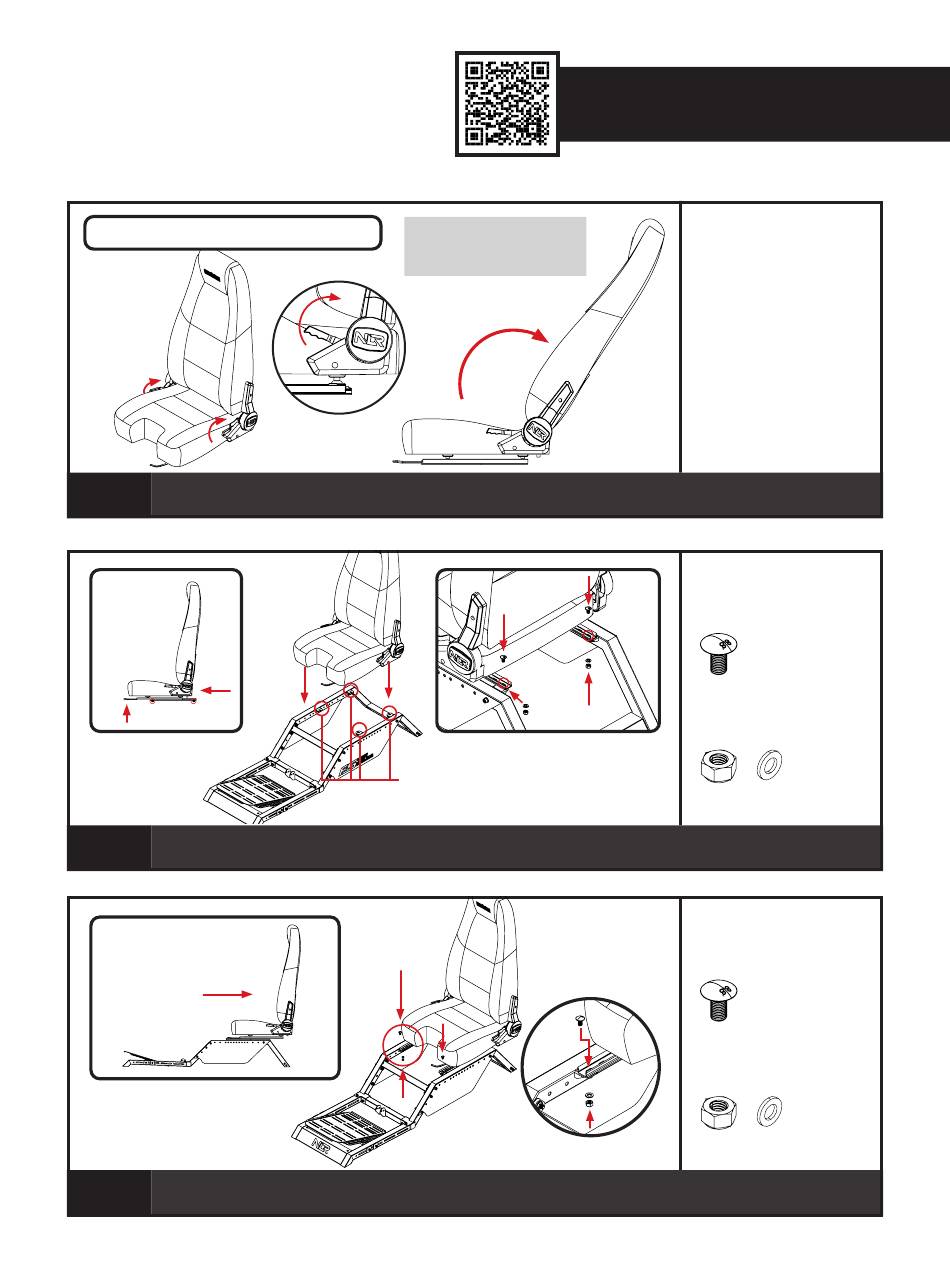

SEAT RECLINER ADJUSTMENT
10
Lift both Seat Recliner Levers to change the angle of the Seat Backrest. Release the levers adjusting
the backrest to lock in place.
)
A
11
A) Remove Preinstalled Hardware and pull the Seat Slider handle up and adjust the Seat to the forward-most position.
B) Align the mounting holes on the Seat Sliders with the seat mounting locations (Refer to image) on the Left and Right Seat Frames.
C) At the rear, bolt through and secure with 2 x M8 Square Neck Bolts, Nylon Lock Nuts and Washers.
)
A
12
A) Pull the Seat Slider handle up and adjust the Seat to the rear-most position.
B) At the front, bolt through and secure with 2 x M8 Square Neck Bolts, Nylon Lock Nuts and Washers.
WARNING: The Seat Recliners
are spring loaded, take care when
adjusting to avoid injury.
)
B
C
(4x Seat Mounting Locations)
(Two Each Side of Seat Frames)
)
B
Video Instruction: bit.ly/nlrbuild
)
17
PARTS:
• •
NIL
PARTS:
• • 2 x M8 16mm Square Neck Bolts
(preinstalled to seat rails)
• • 2 x M8 Nylon Lock Nuts
• • 2 x M8 Washers
(preinstalled to seat rails)
PARTS:
• • 2 x M8 16mm Square Neck Bolts
(preinstalled to seat rails)
• • 2 x M8 Nylon Lock Nuts
• • 2 x M8 Washers
(preinstalled to seat rails)
