A

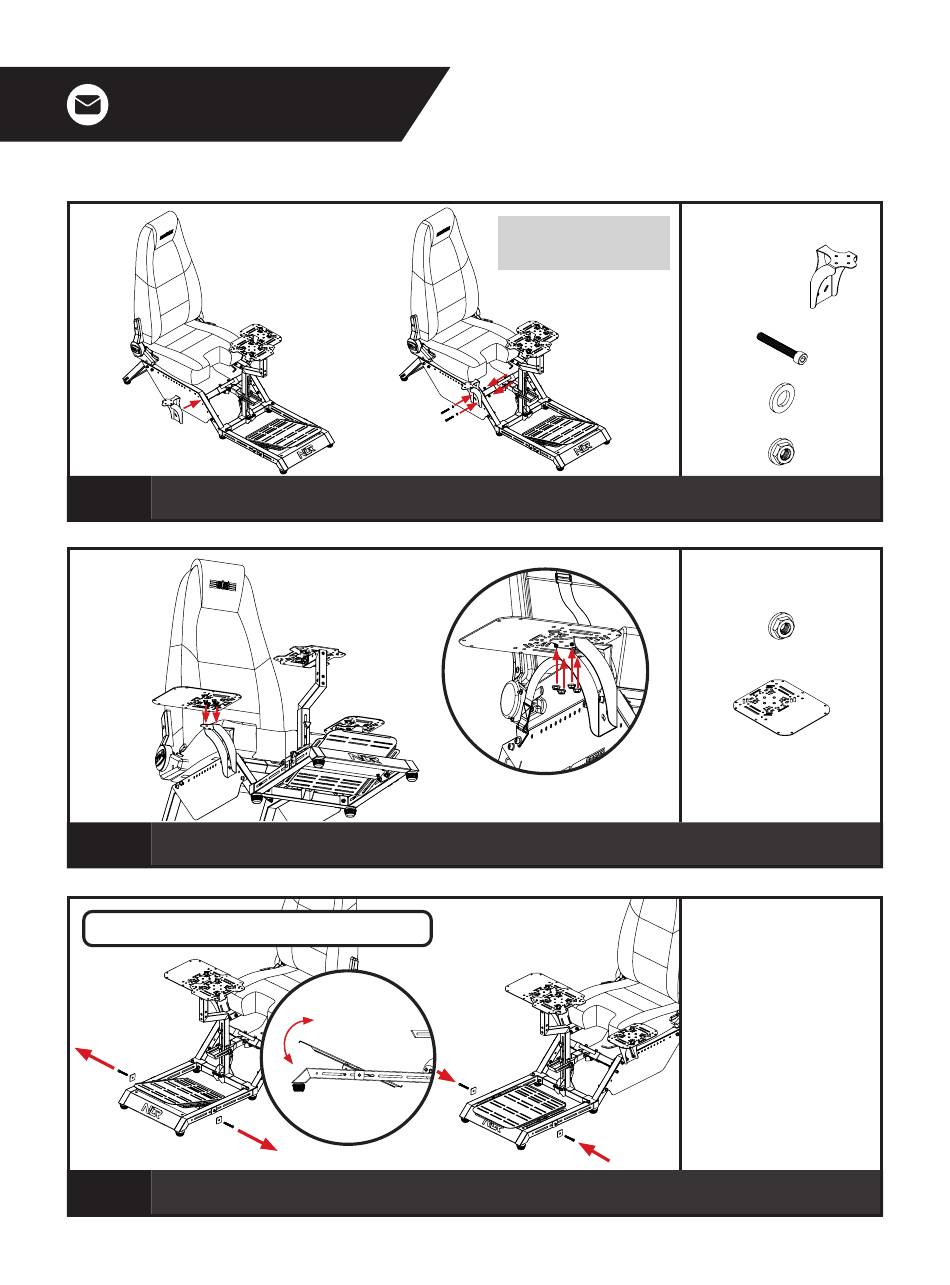

32 A) Align the Straight Side Arm with the through holes in the Seat Frame and Cross Member.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts uninstalled in Step 31.
)
A
33 A) Align the Mouse Plate Threaded Studs with the mounting holes on the Straight Side Arm.
B) Secure with 4 x M8 Flange Nuts.
PEDAL PLATE ANGLE ADJUSTMENT
34
Uninstall the front Bolts, Square Washers and Flange Nuts securing the Rudder Angle Plate to the Rudder Frame and loosen the rear
Bolts. Adjust to the desired angle. Bolt through and secure with the Bolts, Square Washers and Flange Nuts previously uninstalled.
NOTE: The Straight Side Arm is
)
B interchangeable and works on both
sides of the cockpit.
)
B
26 26
PARTS:
• • 1 x Straight Side Arm
• • 2 x M8 55mm Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • 4 x M8 Flange Nuts
1 x Mouse Plate
PARTS:
• • NIL
