A

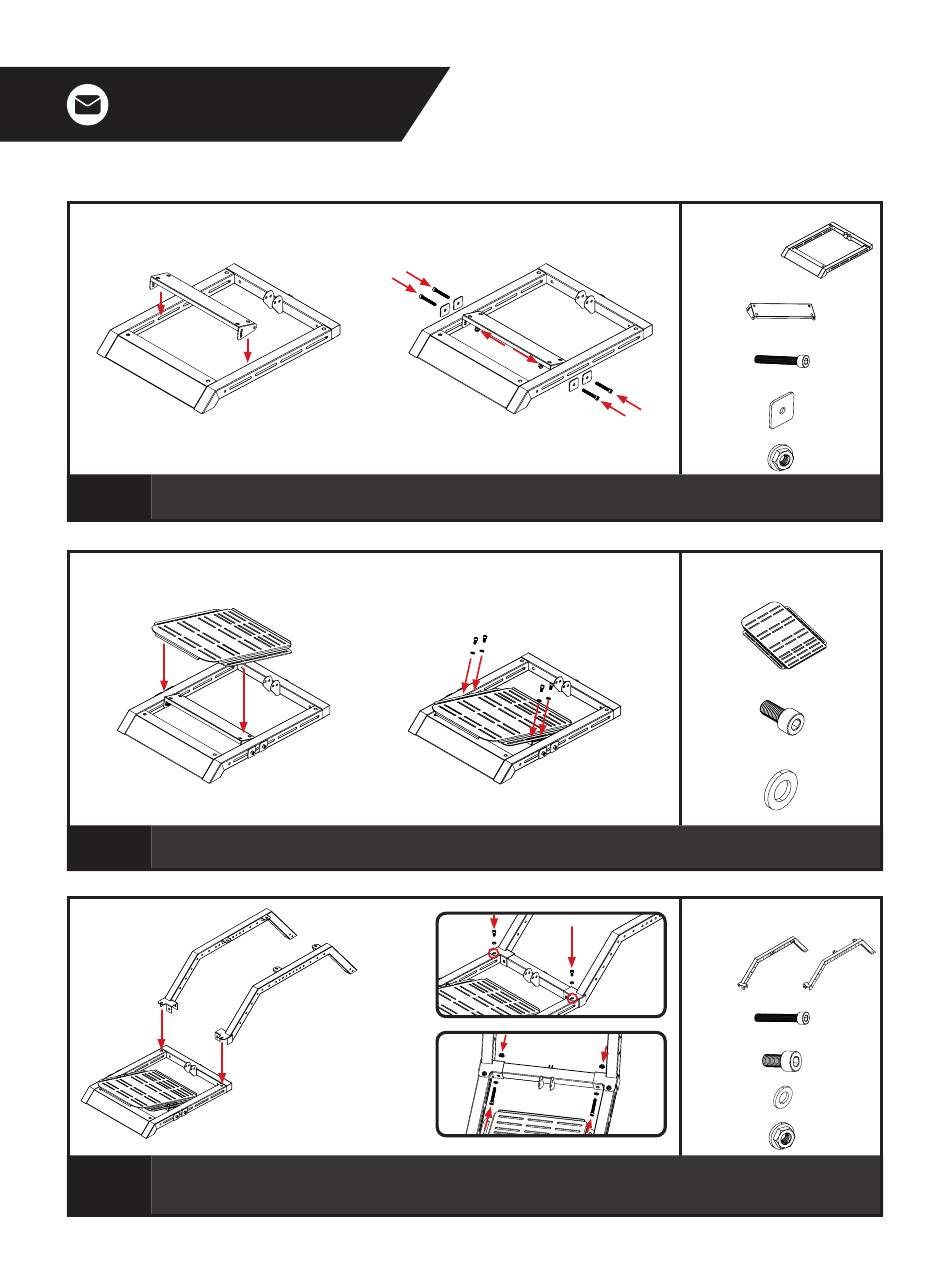

01 A) Align the mounting holes on the Rudder Angle Plate with the slots on the Rudder Frame.
B) Bolt through and secure with 4 x M8 Bolts, Square Washers and Flange Nuts.
)
A
02 A) Align the mounting slots on the Rudder Plate with the threaded inserts on the Rudder Angle Plate.
B) Bolt through and secure with 4 x M8 Bolts and Washers.
)
A
A) Align the mounting holes on the Seat Frames with the mounting holes and threaded inserts on the Rudder Frame.
03
B) On the top of the frame, bolt through and secure the Seat Frames with 2 x M8 16mm Bolts and Washers.
C) Bolt through the centre of the frame and secure with 2 x M8 55mm Bolts, Washers and Flange Nuts.
)
B
)
B
)
B
)
C
14
PARTS:
• • 1 x Rudder Frame
• • 1 x Rudder Angle Plate
• • 4 x M8 55mm Bolts
• • 4 x Square Washers
• • 4 x M8 Flange Nuts
PARTS:
• • 1 x Rudder Plate
• • 4 x M8 16mm Bolts
• • 4 x M8 Washers
PARTS:
• • 2 x Seat Frames
• • 2 x M8 55mm Bolts
• • 2 x M8 16mm Bolts
• • 4 x M8 Washers
• • 2 x M8 Flange Nuts
