Next Level Racing MICROSOFT EDITION Bedienungsanleitung Seite 25

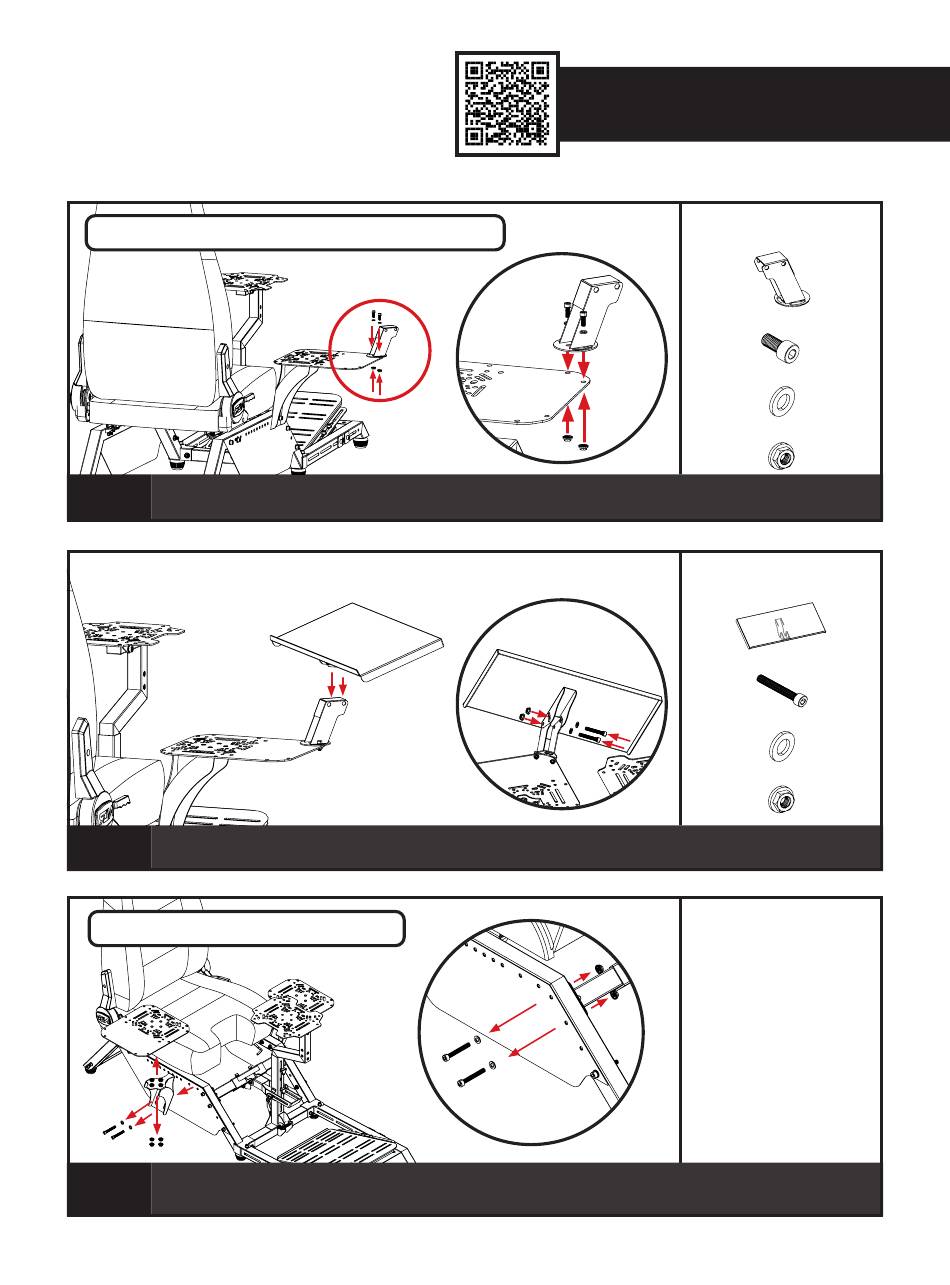

OPTIONAL KEYBOARD PLATE SIDE MOUNT
29 Align the mounting slots on the Keyboard Arm with the holes on the Mouse Plate. Bolt through and
secure with 2 x M6 Bolts, Washers and Flange Nuts.
)
A
30
A) Align the mounting holes on the Keyboard Plate with the through holes on the Keyboard Arm.
B) Bolt through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
OPTIONAL STRAIGHT SIDE ARM
)
A
A) Uninstall 2 x M8 Bolts, Washers and Flange Nuts securing the Side Arm. Detach the Flight Plate from the Side
31
Arm.
B) Uninstall 2 x M8 Bolts, Washers and Flange Nuts securing one side of the Cross Member to the Seat Frame.
Video Instruction: bit.ly/nlrbuild
)
B
)
B
25 25
PARTS:
• • 1 x Keyboard Arm
• • 2 x M6 16mm Bolts
• • 2 x M6 Washers
• • 2 x M6 Flange Nuts
PARTS:
• • 1 x Keyboard Plate
• • 2 x M8 55mm Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • NIL
