A
26

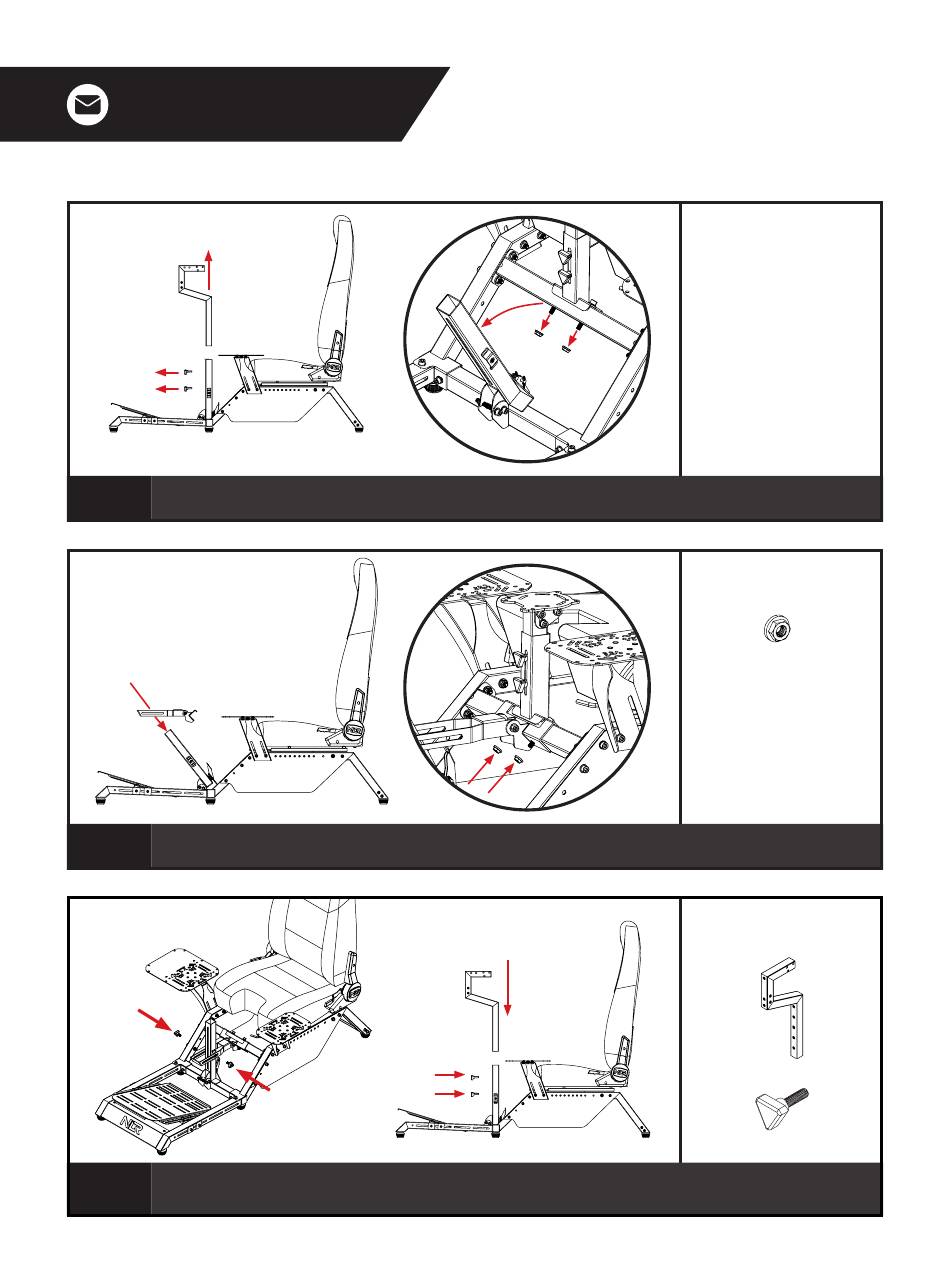

A) Uninstall the Knobs securing the Centre Inner Pole to the Centre Outer Pole and remove the Centre Outer Pole.
B) Uninstall the 2 x M8 Flange Nuts securing the HOTAS Outer Pole to the Cross Member.
)
A
27
A) Align the mounting holes on the Support Bracket with the through holes on the Cross Member.
B) Secure with 2 x M8 Flange Nuts previously uninstalled in Step 26.
)
A
A) Align the threaded inserts on the Centre Outer Pole with the slots on the Support Bracket. Bolt through with 2 x Knobs.
28
B) Fit the Centre Inner Pole into the Centre Outer Pole. Align the threaded inserts on the Centre Inner Pole with the slot in the
Centre Outer Pole. Bolt through and secure with 2 x Knobs previously uninstalled in Step 26.
)
B
)
B
)
B
24 24
PARTS:
• • NIL
PARTS:
• • 2 x M8 Flange Nuts
PARTS:
• • 1 x Centre Inner Pole
• • 4 x 12mm Knobs
