Next Level Racing MICROSOFT EDITION Bedienungsanleitung Seite 21

)
A
21

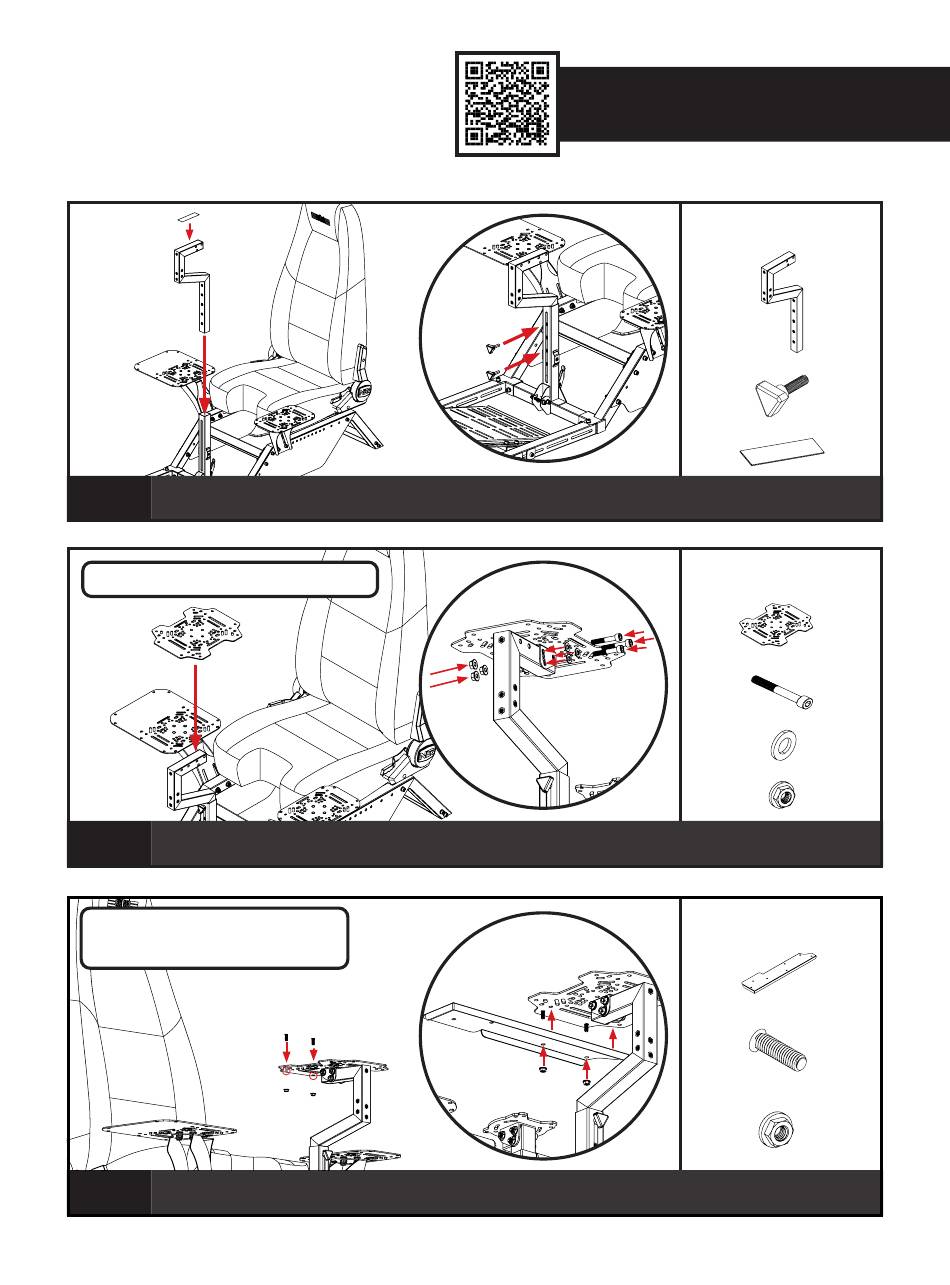

A) Install 1 x Felt Pad onto the top of the Centre Inner Pole. Align the threaded inserts on the Centre Inner Pole
with the slots on the Centre Outer Pole. B) Bolt through and secure with 2 x Knobs.
CENTRE YOKE PLATE INSTALL
)
A
22a A) Align the mounting holes on the Centre Yoke Plate with the through holes on the Centre Inner Pole.
B) Bolt through and secure with 3 x M8 55mm Bolts, Washers and Flange Nuts.
OPTIONAL TURTLE BEACH
ADAPTOR INSTALL
(Continue from Step 19a)
)
A
22b
A) Insert the 2 x M6 Studs into the rear-most holes on the Centre Yoke Plate.
B) Align the mounting holes on the Turtle Beach Adaptor Plate with the threaded studs, secure with 2 x M6 Flange Nuts.
Video Instruction: bit.ly/nlrbuild
)
B
)
B
)
B
21 21
PARTS:
• • 1 x Centre Inner Pole
• • 2 x 20mm Knobs
• • 1 x Felt Pad
PARTS:
• • 1 x Centre Yoke Plate
• • 3 x M8 55mm Bolts
• • 3 x M8 16mm Washers
• • 3 x M8 Flange Nuts
PARTS:
• • 1 x Turtle Beach Adaptor Plate
• • 2 x M6 20mm Press Fit Studs
• • 2 x M6 Flange Nuts
