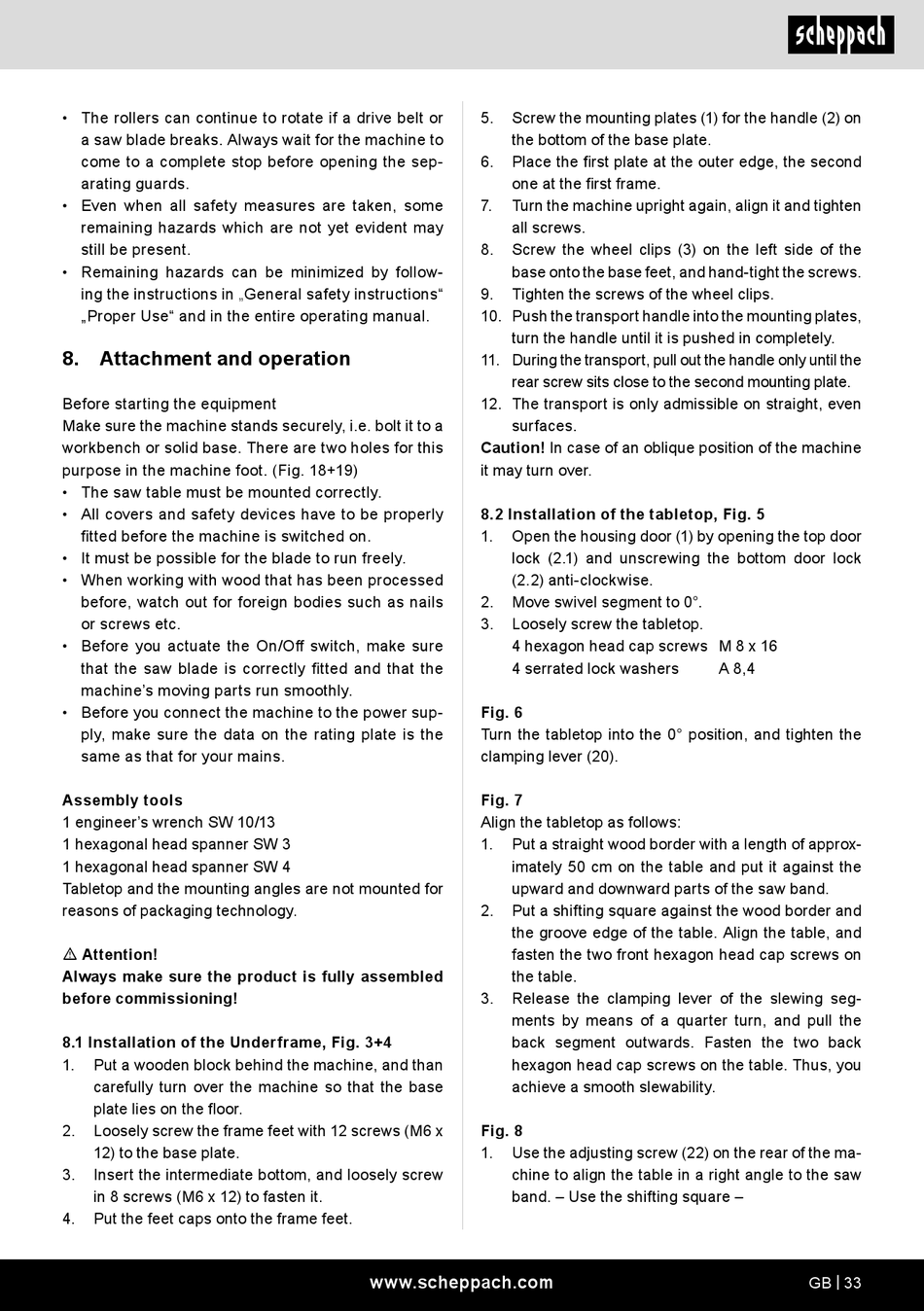

Scheppach BASA4 Originalbetriebsanleitung Seite 33

• The rollers can continue to rotate if a drive belt or
a saw blade breaks. Always wait for the machine to
come to a complete stop before opening the sep-
arating guards.
• Even when all safety measures are taken, some
remaining hazards which are not yet evident may
still be present.
• Remaining hazards can be minimized by follow-
ing the instructions in „General safety instructions"
„Proper Use" and in the entire operating manual.
8. Attachment and operation
Before starting the equipment
Make sure the machine stands securely, i.e. bolt it to a
workbench or solid base. There are two holes for this
purpose in the machine foot. (Fig. 18+19)
• The saw table must be mounted correctly.
• All covers and safety devices have to be properly
fitted before the machine is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws etc.
• Before you actuate the On/Off switch, make sure
that the saw blade is correctly fitted and that the
machine's moving parts run smoothly.
• Before you connect the machine to the power sup-
ply, make sure the data on the rating plate is the
same as that for your mains.
Assembly tools
1 engineer's wrench SW 10/13
1 hexagonal head spanner SW 3
1 hexagonal head spanner SW 4
Tabletop and the mounting angles are not mounted for
reasons of packaging technology.
m Attention!
Always make sure the product is fully assembled
before commissioning!
8.1 Installation of the Underframe, Fig. 3+4
1. Put a wooden block behind the machine, and than
carefully turn over the machine so that the base
plate lies on the floor.
2. Loosely screw the frame feet with 12 screws (M6 x
12) to the base plate.
3. Insert the intermediate bottom, and loosely screw
in 8 screws (M6 x 12) to fasten it.
4. Put the feet caps onto the frame feet.
5. Screw the mounting plates (1) for the handle (2) on
the bottom of the base plate.
6. Place the first plate at the outer edge, the second
one at the first frame.
7. Turn the machine upright again, align it and tighten
all screws.
8. Screw the wheel clips (3) on the left side of the
base onto the base feet, and hand-tight the screws.
9. Tighten the screws of the wheel clips.
10. Push the transport handle into the mounting plates,
turn the handle until it is pushed in completely.
11. During the transport, pull out the handle only until the
rear screw sits close to the second mounting plate.
12. The transport is only admissible on straight, even
surfaces.
Caution! In case of an oblique position of the machine
it may turn over.
8.2 Installation of the tabletop, Fig. 5
1. Open the housing door (1) by opening the top door
lock (2.1) and unscrewing the bottom door lock
(2.2) anti-clockwise.
2. Move swivel segment to 0°.
3. Loosely screw the tabletop.
4 hexagon head cap screws M 8 x 16
4 serrated lock washers
Fig. 6
Turn the tabletop into the 0° position, and tighten the
clamping lever (20).
Fig. 7
Align the tabletop as follows:
1. Put a straight wood border with a length of approx-
imately 50 cm on the table and put it against the
upward and downward parts of the saw band.
2. Put a shifting square against the wood border and
the groove edge of the table. Align the table, and
fasten the two front hexagon head cap screws on
the table.
3. Release the clamping lever of the slewing seg-
ments by means of a quarter turn, and pull the
back segment outwards. Fasten the two back
hexagon head cap screws on the table. Thus, you
achieve a smooth slewability.
Fig. 8
1. Use the adjusting screw (22) on the rear of the ma-
chine to align the table in a right angle to the saw
band. – Use the shifting square –
