5. OPERATING ELEMENTS

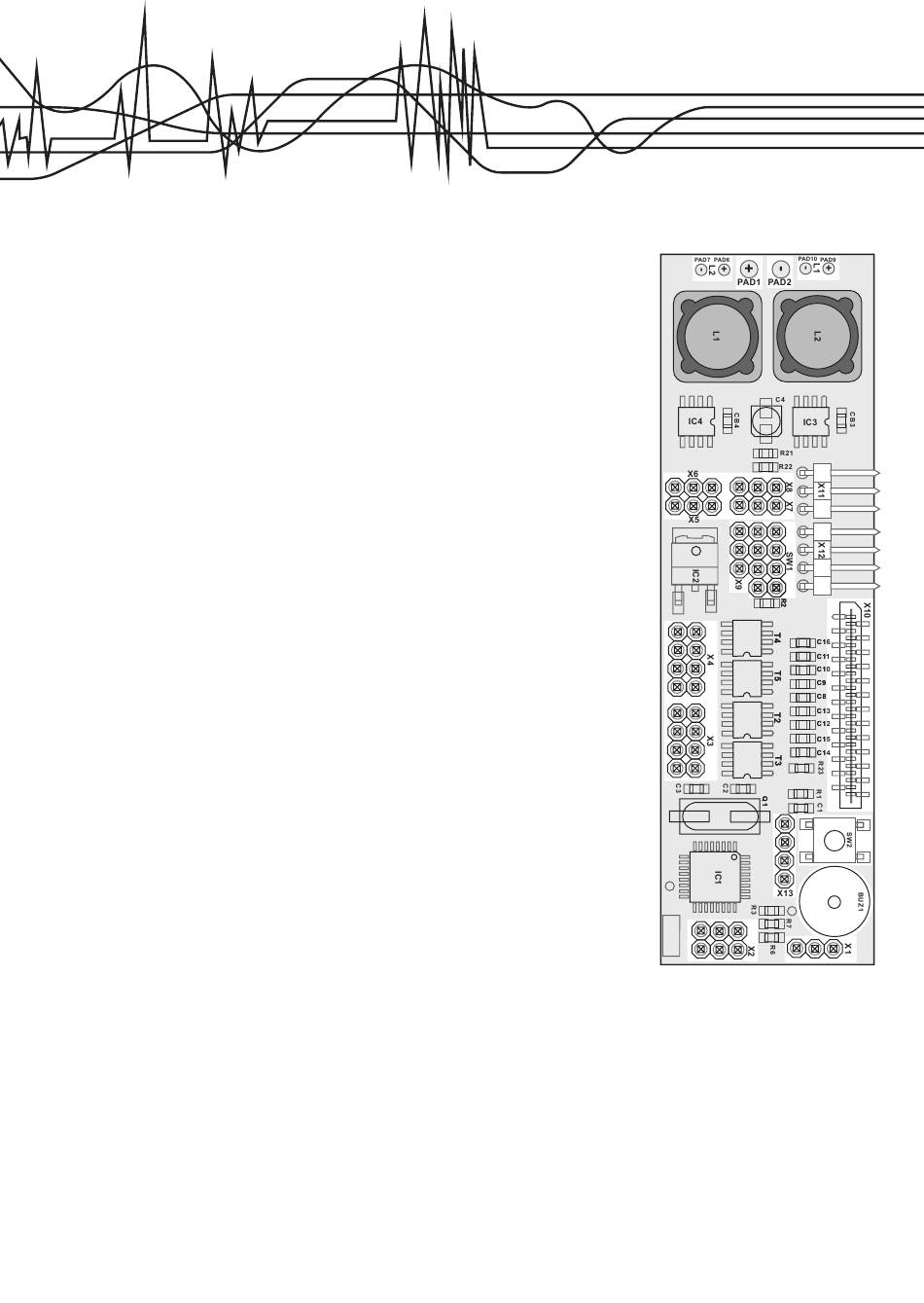

The lightboard has the following connection contacts or jumper plugs:
PAD1: Plus solder connection for supply voltage (+)
PAD2: Minus solder connection for supply voltage (-)
PAD6: Plus solder connection for power LED output L2
PAD7: Minus solder connection for power LED output L2
PAD9: Plus solder connection for power LED output L1
PAD10: Minus solder connection for power LED output L1
X1: Jumper for buzzer
X2: Jumper for light mode
X3: Connection contacts for LED or LED-strips 1 - 4
X4: Connection contacts for LED or LED-strips 5 - 8
X5: Connection contacts for servo 1 (channel 5)
X6: Connection contacts for servo 2 (channel 6)
X7: Connection contacts for servo 3 (channel 7)
X8: Connection contacts for servo 4 (channel 8)
X9: Connection contacts for an external RC input signal
X10: Connection strip for the broad interface cable
X11: Jumper for the interface selection
X12: Serial interface
X13: Control connection for lines SA1, SA2 and Status
SW1: Jumper for the RC input selection
SW2: Reset button
BUZ1: Buzzer
