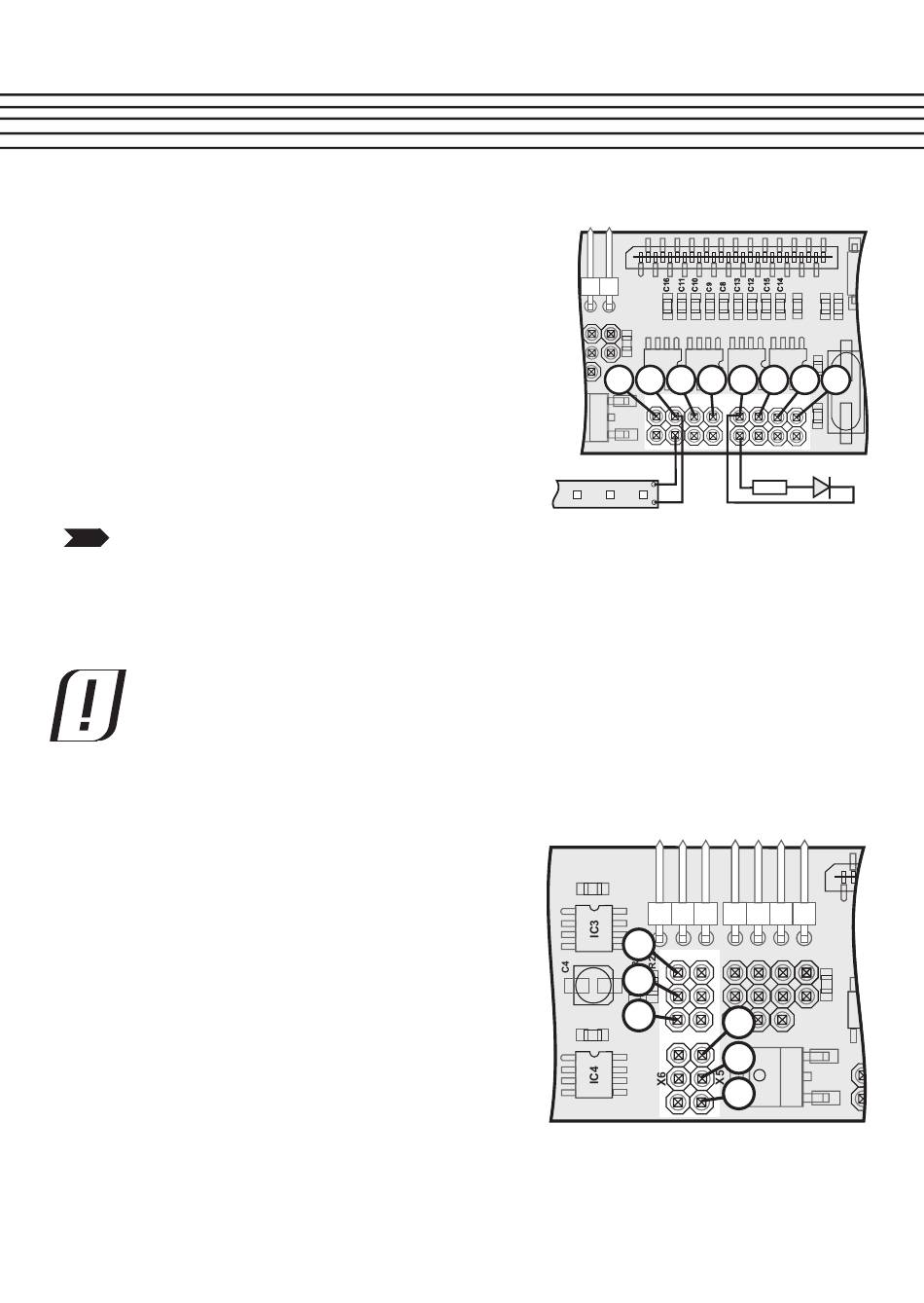

Connection pattern
The figure shows the scheme for the connection of a LED
with dropping resistor at the output L1 and the connection of
a 12 V light strip at the output L6.
Instead of connection wires, you may also solder 2.54 mm pin strips to the lightboard at the
connections X3 and X4. In connection with the matching socket strips, the LEDs can be con-
nected easily this way, and also easily removed or reordered if required.
Servo Connection
Please observe that the impulse line (PPM) always has to be connected to the upper
pin of the three contact plugs when connecting the servos!
When the lightboard is installed in the RC EYE 650 and the remote control was connected programmed
correctly, up to four servos (channel 5 - 8) can be connected to the lightboard and operated by remote
control. However, this is only possible if transmitter and receiver provide this function.
The following plug contacts are intended for the servo
connection:
X5: Servo 1 (Receiver output/channel 5)
X6: Servo 2 (Receiver output/channel 6)
X7: Servo 3 (Receiver output/channel 7)
X8: Servo 4 (Receiver output/channel 8)
