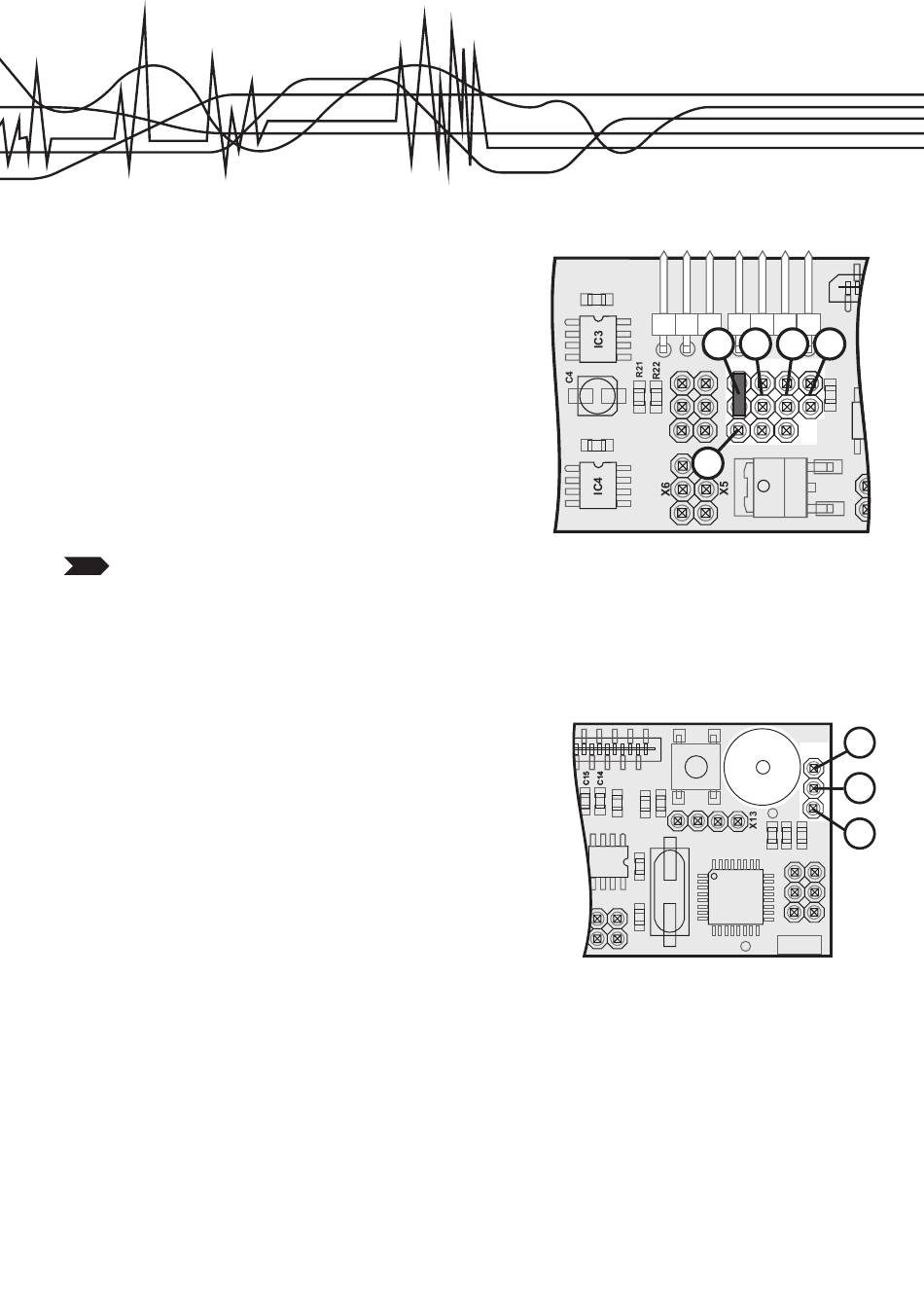

Selecting the RC Input
The desired RC input for switching the light effect can be set
using the jumper SW1. Always connect the upper and lower
contacts with the jumper. Assignment is as follows:
Jumper in position 1 = channel 8
Jumper in position 2 = channel 7
Jumper in position 3 = channel 6
Jumper in position 4 = channel 5
Control via channels 5, 6, 7 or 8 is only possible, however, if the channels are also provided
by the transmitter/receiver! If this is not the case, you are able to directly feed an external
servo signal (PPM) into the left connection contact of the X9 plug of an unassigned receiver
output (e.g. channel 9).
Buzzer Configuration
The buzzer can be switched on or off with the jumper (X1).
If no jumper is set or contacts 1 and 2 are connected with a
jumper, the buzzer is off.
When contacts 2 and 3 are connected with a jumper, the buzzer
is on and outputs signals according to the modes table.
16
CB3
X11
X12
1
2
X8 X7
CB4
PPM
BUZ1
SW2
R23
C1
R1
T3
T3
Q1
Q1
C2
IC1
C3
X10
X10
3
4
SW1
R2
R2
X9
IC2
3
X1
2
R7
1
R6
R3
X2
