English
1

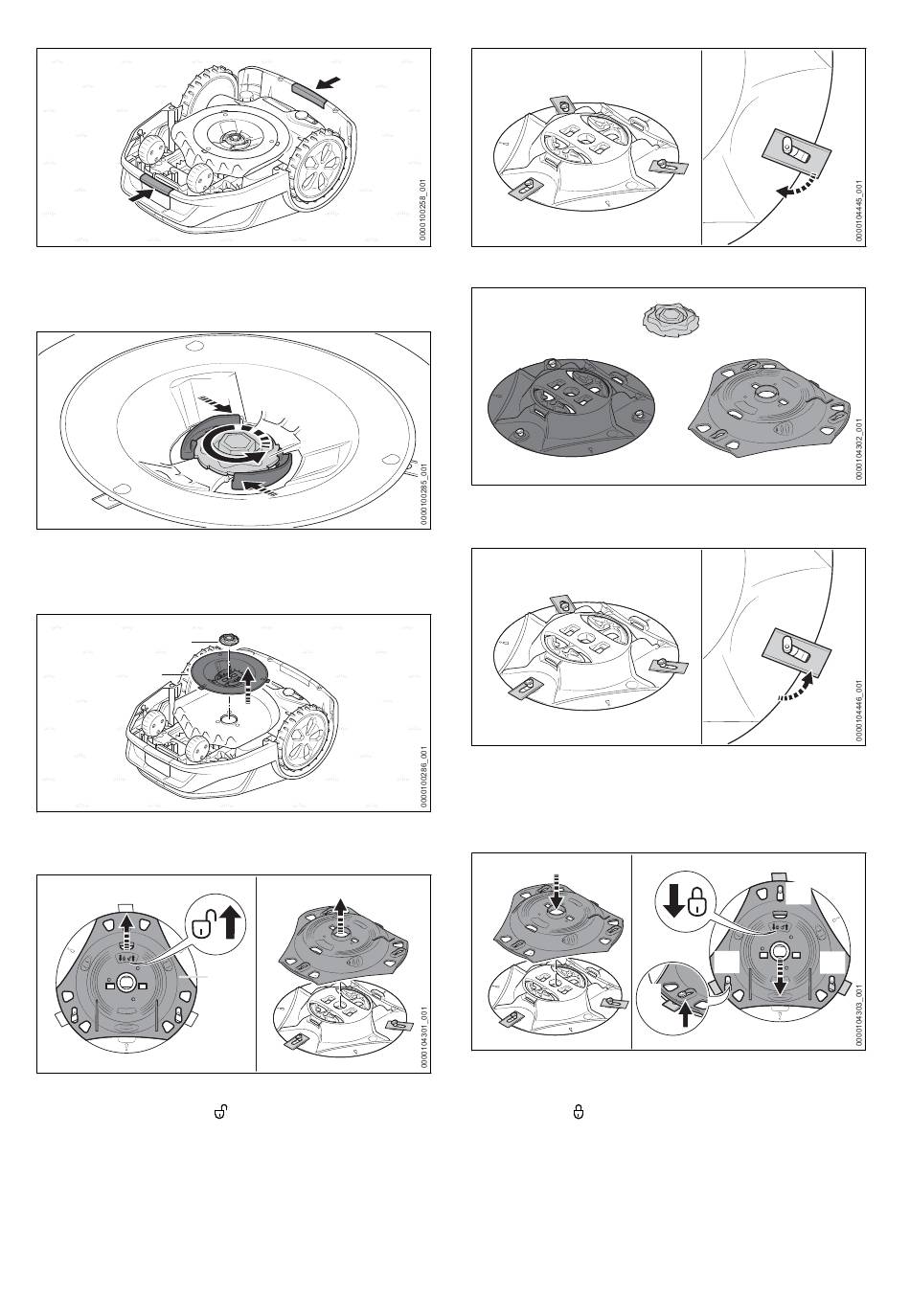

► Grip the robotic mower at the front grip sur‐
face (1) and the rear grip surface (2).
► Turn the robot mower on its back.
► Press and hold the lever (3).
► Rotate the nut (4) counterclockwise until it can
be removed.
4
5
► Remove the nut (4).
► Remove the blade disk (5).
► Push the blade carrier (6) in the direction indi‐
cated by the arrow
The blade carrier (6) is unlocked.
► Remove the blade carrier (6).
90
2
3
4
3
6
.
20 Maintenance and replacement of blades
7
7
► Detach all old blades (7).
5
► Clean, blade disk (5), blade carrier (6) and
nut (4).
8
8
► Attach new blades (8). Insert only one blade
per L-pin (9).
The blades can be oriented in any direction.
The blades can move freely around the L-pin.
6
► Put on the blade carrier (6).
► Push the blade carrier (6) in the direction of
the arrow and make sure that all three
arms (10) underneath the L-pins (9) are posi‐
tioned.
The blade carrier (6) is locked.
► Position the blade disk (5) on the robotic
mower.
► Turn the nut (4) clockwise.
7
4
6
8
10
10
9
0458-074-9601-A
