3 Overview
2.3 Symbols in Text
This symbol refers to a chapter in this
instruction manual.
3 Overview

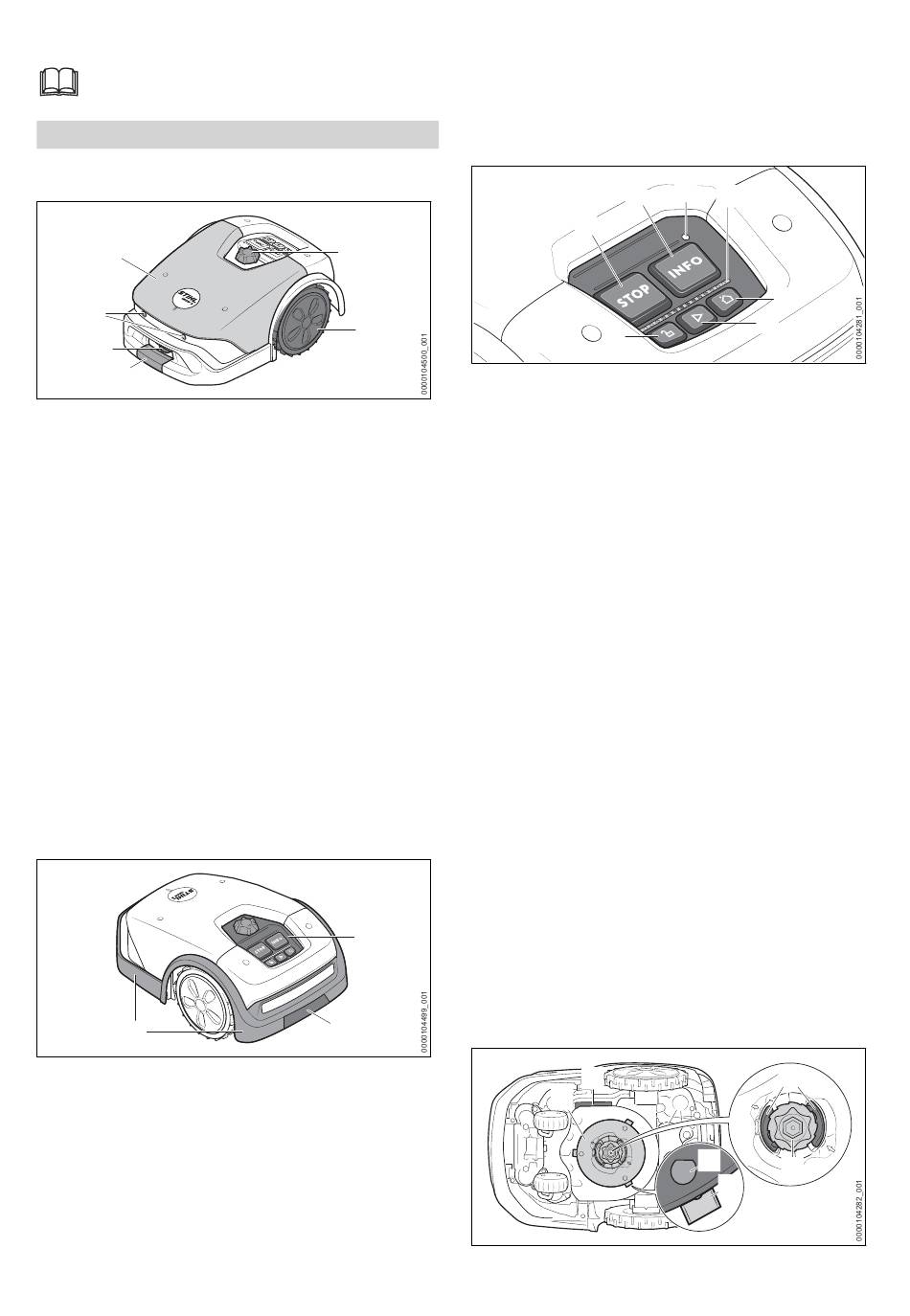

3.1 Robotic mower
4
3
2
1
1 Front grip surface
Lift and transport the robot mower by simulta‐
neously gripping it at the front and rear grip
surface.
2 Charging contacts
The charging contacts connect the robot
mower with the docking station.
3 Ultrasound sensors
The ultrasound sensors detect obstacles.
4 Cover
The hood is spring-mounted and features a
bump sensor to detect obstacles on the mow‐
ing area.
5 Drive wheels
The drive wheels drive the robotic mower.
6 Control knob
The control knob is used to set the cutting
height.
8
7 Rear grip surface
Lift and transport the robot mower by simulta‐
neously gripping it at the front and rear grip
surface.
8 Protective strip
The protective strip protects the user against
ejected objects and contact with the blades.
0458-074-9601-A
9 Control panel
The control panel features pushbuttons and a
rain sensor.
3.2
6
5
1 INFO pushbutton
This pushbutton lets the robotic mower talk
about its current status.
2 STOP pushbutton
The pushbutton stops the robot mower and
mowing unit. The pushbutton also activates
the device lock.
3 LOCK pushbutton
This pushbutton unlocks the robot mower in
conjunction with a displayed key combination.
4 START pushbutton
This pushbutton starts mowing operations.
5 HOME pushbutton
This pushbutton makes the robotic mower
return to the docking station or cancels the
current mowing job if the robotic mower is in
the docking station.
6 Light strip
The light strip shows the robotic mower's sta‐
tus and signals which key combination to
press for a certain action.
7 Rain sensor
The rain sensor reacts to moisture. Depend‐
ing on the setting, the robotic mower can take
9
weather conditions into account for its mow‐
ing plan.
3.3
7
Control panel
7
1
6
2
3
Mowing deck
#
1
2
English
5
4
4
5
3
