English

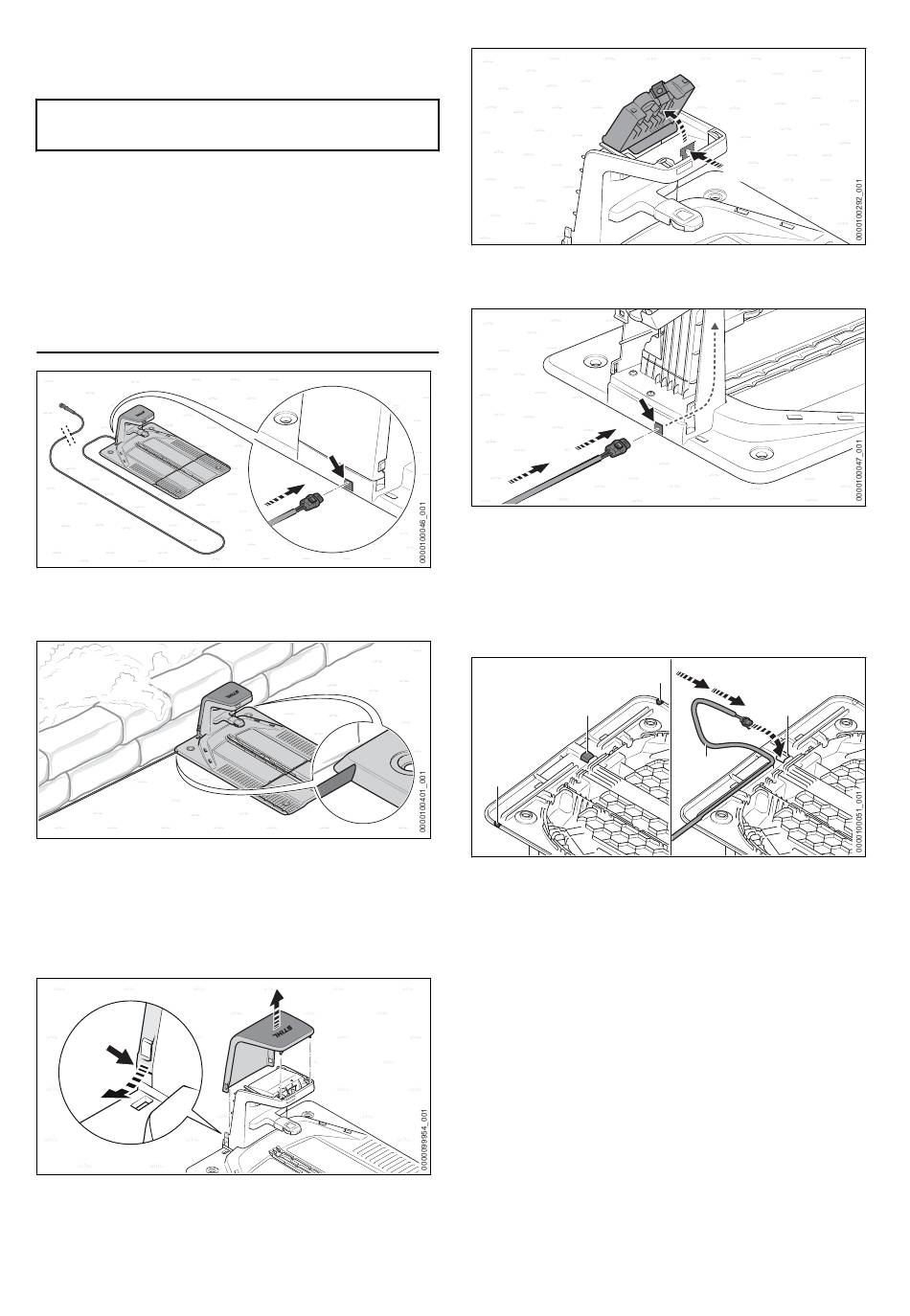

7.3 Preparing the docking station
Connecting the charging cable.
NOTICE
■ In assembled condition, the plug connections
of the charging cable are protected against
contamination, e.g. dust and dirt. Contamina‐
tion of the plug connections may result in
breakdowns of the docking station.
► Protect open plug connections against con‐
tamination.
► Clean the contaminated plug connections
as described in this User Manual.
Normally the charging cable is connected from
the rear.
If the docking station has been positioned
directly against a wall, it is also possible to install
the charging cable under the base plate. The
charging cable can be routed out of the base
plate to the left or right.
1
► Slightly bend the hood (1) toward the outside
on both sides and remove it upward.
66
7 Positioning the docking station
► Press the retaining latch (2) and open the
cover (3).
► If you intend to connect the docking station
from the rear:
► Insert the plug (4) into the conduit (5) and
feed the charging cable (6) through.
Push the charging cable (6) upward inside
the docking station.
B
A
► If the docking station has been positioned
directly against a wall or you want to route the
charging cable underneath the base plate
toward the side:
► Open the edge and deburr it on the desired
side of the base plate at position (A).
► Cut out and deburr an opening in the center
of the base plate (B).
► Insert the plug (4) into the opening (B) and
feed the charging cable (6) through.
Push the charging cable (6) upward inside
the docking station.
3
2
A
B
4
6
