English
1 Blade disk
The blade disk serves to attach the blades.
2 L-pins
The L-pins are for mounting the blades.
3 Blades
The blades mow the lawn.
4 Levers
The levers secure the nut.
5 Nut
The nut secures the blade disk.
# Rating plate with machine number

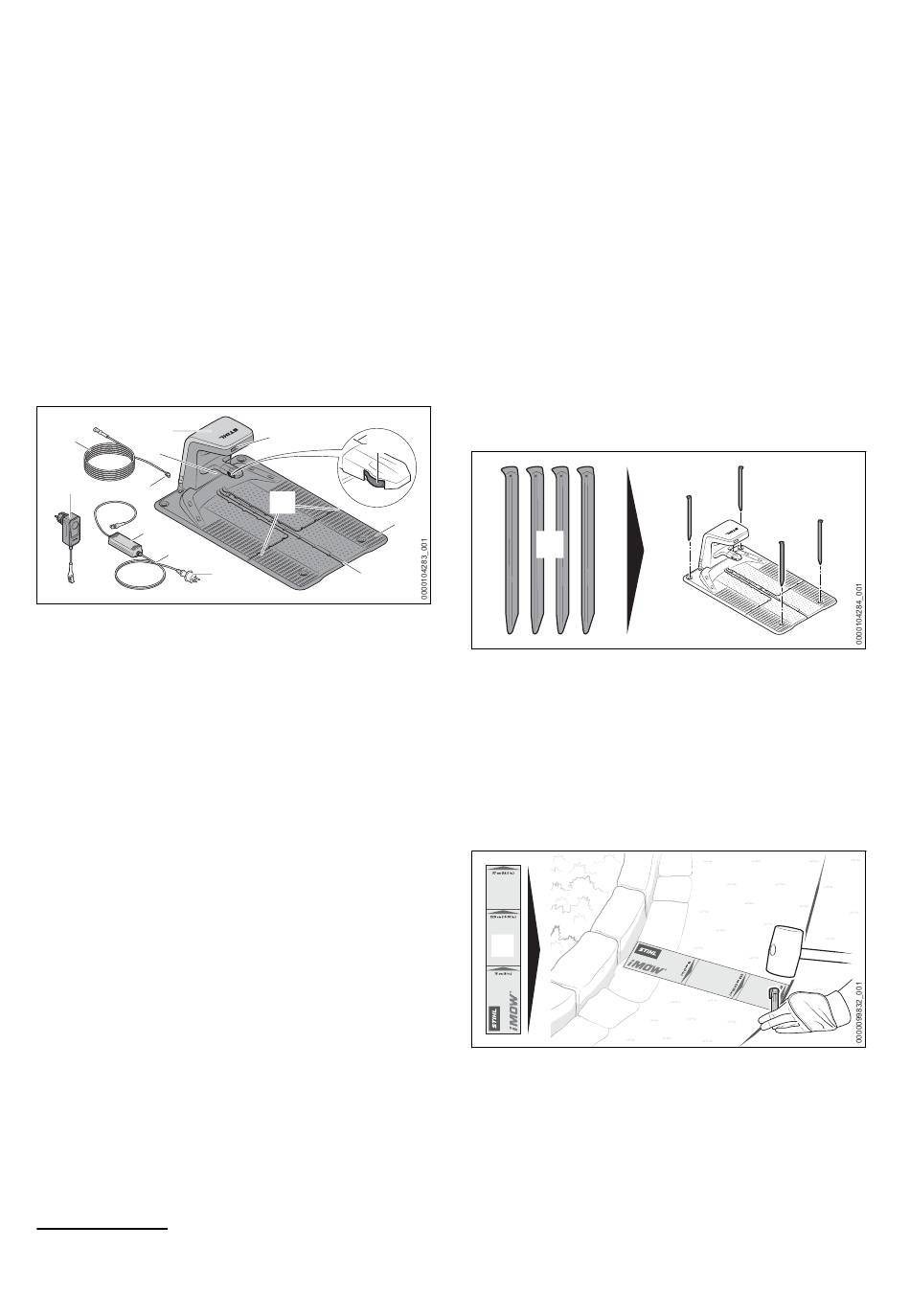

3.4 Docking station and power sup‐
ply
6
4
#
12
5
3
2
1 Mains plug
The mains plug connects the connecting
cable to a wall socket.
2 Connecting cable
The connecting cable connects the power
supply to the mains plug.
3
3 Power supply
The power supply supplies the docking sta‐
tion with energy.
4 Charging cable
The charging cable connects the power sup‐
ply or the plug-in power supply to the docking
station.
5 Plug
The plug connects the charging cable to the
docking station.
6 Cover
The hood covers the docking station and pro‐
tects the internal electronics.
7 LED
The LED indicates the status of the docking
station.
3
The power supply or plug-in power supply is included in scope of delivery, depending on the version
and market
52
7
8
11
1
10
8 Charging contacts
The charging contacts connect the docking
station with the robot mower.
9 Base plate
The base plate is the base for the docking
station.
10 Cable duct
The guide wire is routed in the middle cable
duct.
11 Cable duct
The perimeter wire is routed in the outer
cable ducts.
12 The plug-in power supply
The plug-in power supply supplies the dock‐
ing station with energy.
# Rating plate with machine number
9
13
13 Ground peg
The four ground pegs secure the docking sta‐
tion to the ground.
3.5 iMOW
Kit
®
iMOW Ruler
1
1 iMOW
®
Ruler
The ruler makes it easier to install wires and
serves to maintain the correct distance.
3 Overview
1
Ruler and Installation
®
