OPERATION

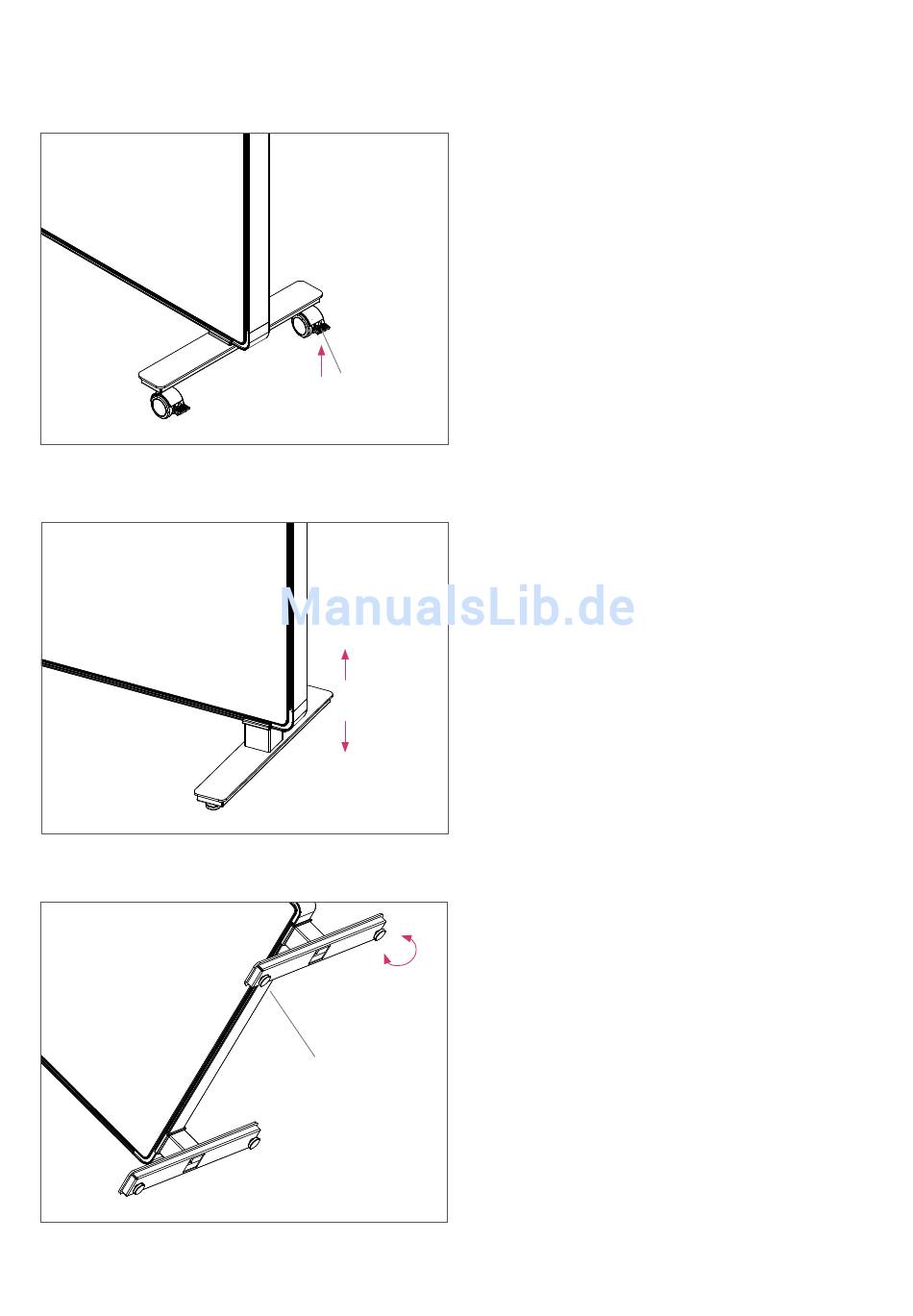

Illustration 31: Operation of the locking brake.
Illustration 32: Height adjustment of the partition wall
Illustration 33: Direction of rotation of the adjustable glide
44
5 1
The castors are fitted with a locking brake. In order to move the
partition wall, the brake lever of the locking brake must be lifted
(see illustration 31).
5 2
Brake lever of the
You can correct unevenness in the floor with adjustable glides on the
locking brake
cantilevers (see illustration 32).
The adjustable glides can be lifted up to 10 mm by turning the screws
out in counter-clockwise direction (+) (see illustration 33). Note: Do
not turn the adjustable glides out by more than 10 mm as otherwise
they will detach from the cantilever and the stability of the partition
wall will be impaired.
+
-
+
-
Adjustable glide
Operation of the partition wall with cantilever on both
sides on castors
Operation of the partition wall with cantilever on both
sides on adjustable glides
