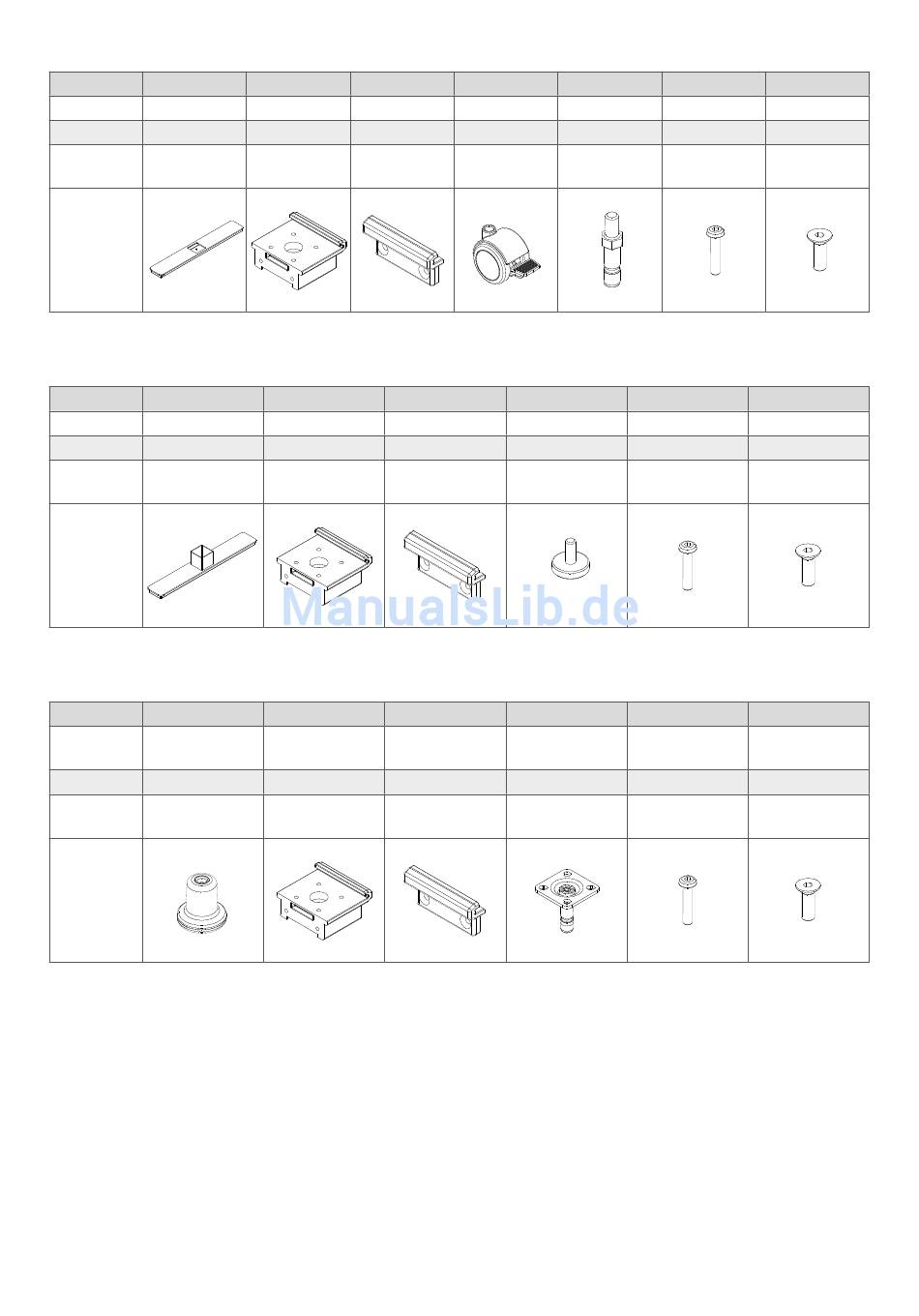

Cantilever on both sides on castors:
Pos B
Designation Cantilever
Quantity 1x
Dimensions 68 x 20.5 x 455
(mm) (W x H x D)
Illustration
Cantilever on both sides on adjustable glides:
Pos J
Designation Cantilever
Quantity 1x
Dimensions 68 x 71 x 455
(mm) (W x H x D)
Illustration
Adjustable feet for interlinking elements:
Pos L
Designation Adjustable foot
with felt
Quantity 1x
Dimensions D55x62
(mm)
Illustration
28
C D
Clamping plate Bracket
1x 1x
59 x 28 x 52 59 x 28 x 16.5
(W x H x D) (W x H x D)
C D
Clamping plate Bracket
1x 1x
59 x 28 x 52 59 x 28 x 16.5
(W x H x D) (W x H x D)
C D
Clamping plate Bracket
1x 1x
59 x 28 x 52 59 x 28 x 16.5
(W x H x D) (W x H x D)
E F
Castor Thread plug
2x 2x
71 x 55 x 51 D10x50
(W x H x D)
K G
Adjustable glide Screw
2x 4x
D29x24 M4x16
M G
Mounting plate Screw
2x 4x
38 x 40 x 38 M4x16
(W x H x D)
G H
Screw Screw
4x 2x
M4x16 M4x12
H
Screw
2x
M4x12
H
Screw
2x
M4x12
