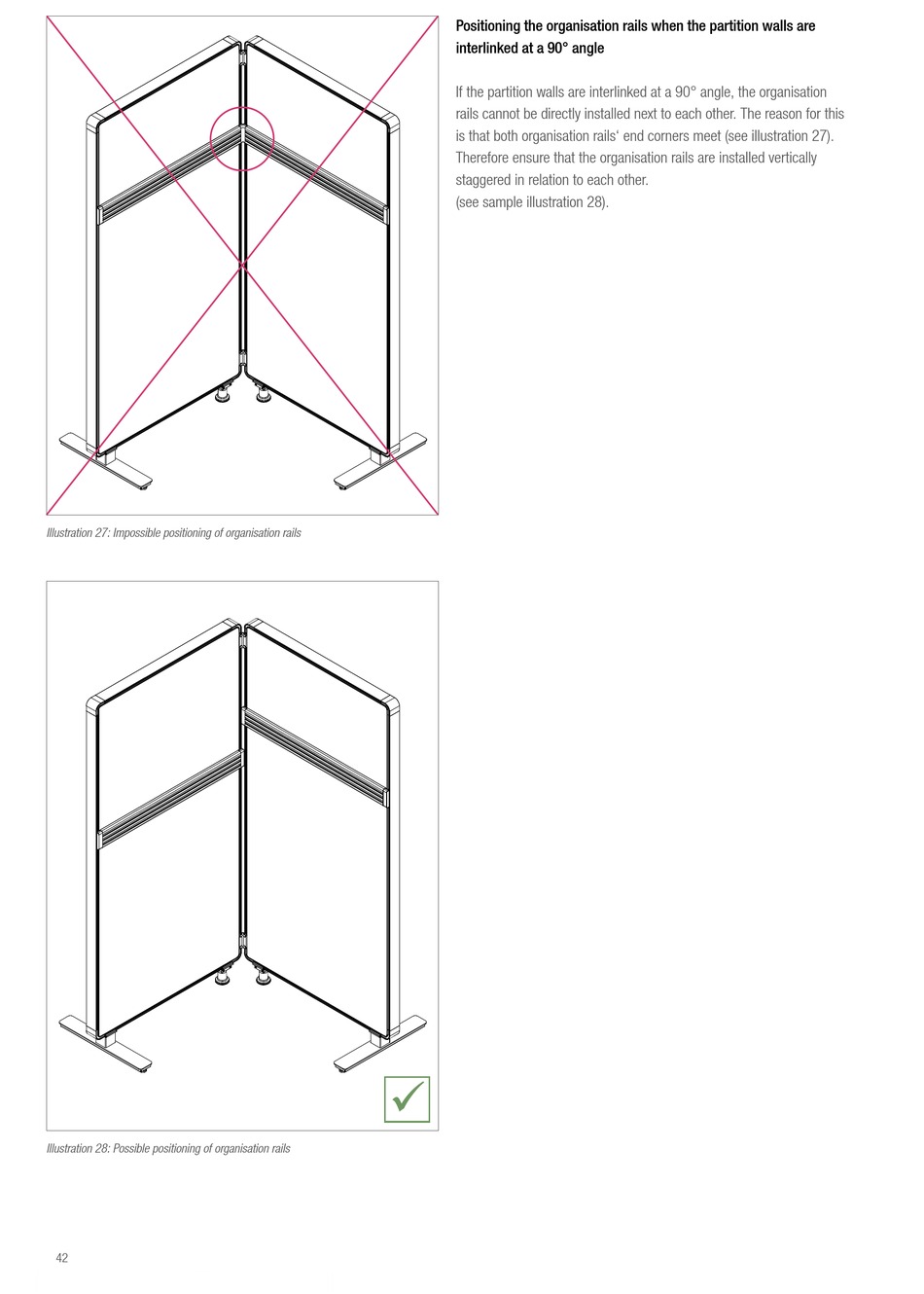

Illustration 27: Impossible positioning of organisation rails
Illustration 28: Possible positioning of organisation rails
42
Positioning the organisation rails when the partition walls are
interlinked at a 90° angle
If the partition walls are interlinked at a 90° angle, the organisation
rails cannot be directly installed next to each other. The reason for this
is that both organisation rails' end corners meet (see illustration 27).
Therefore ensure that the organisation rails are installed vertically
staggered in relation to each other.
(see sample illustration 28).

