A

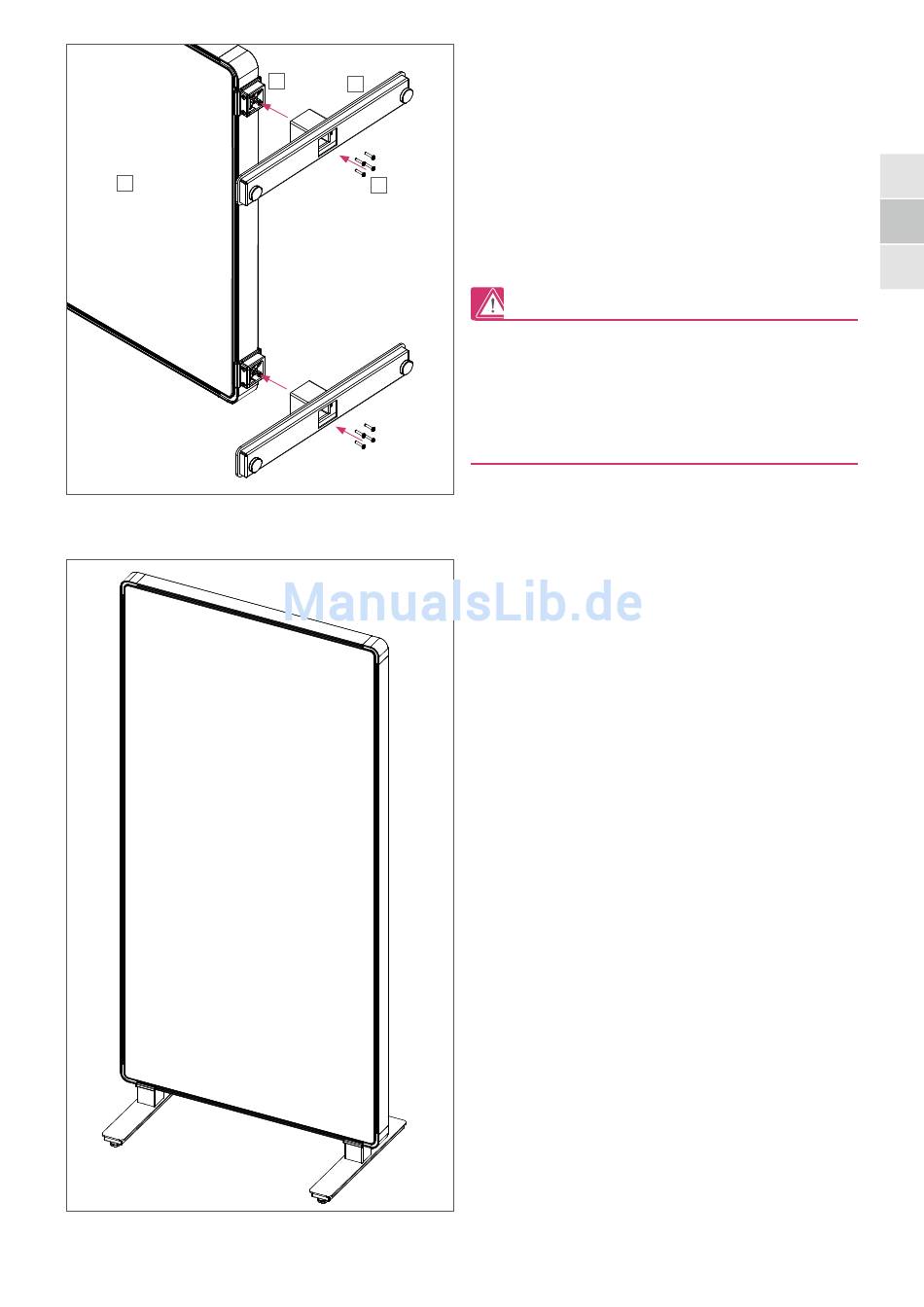

Illustration 11: Assembly of the cantilever
Illustration 12: Fully assembled cantilever
C
J
G
Fitting the cantilever with adjustable glides onto the partition wall
a. Screw the screws (G) through the cantilever (J) into the clamping
plate (C) and firmly tighten them using a 2.5 mm hexagon socket
wrench (see illustration 11). The recommended tightening torque
with a torque wrench is 2.5 Nm ± 0.5 Nm.
b. Repeat step a to fit the second cantilever with adjustable glides.
c. The cantilevers are now fully assembled. Place the partition wall
with the cantilevers in an upright position now (see illustration 12).
Make absolutely sure that the screws are tightened properly (recom-
mended tightening torque: 2.5 Nm ± 0.5 Nm). Failure to observe this
may pose the risk that the cantilevers with adjustable glides are not
sufficiently connected with the partition wall therefore possibly
resulting in the partition wall detaching from the cantilevers and
posing a risk of injury.
