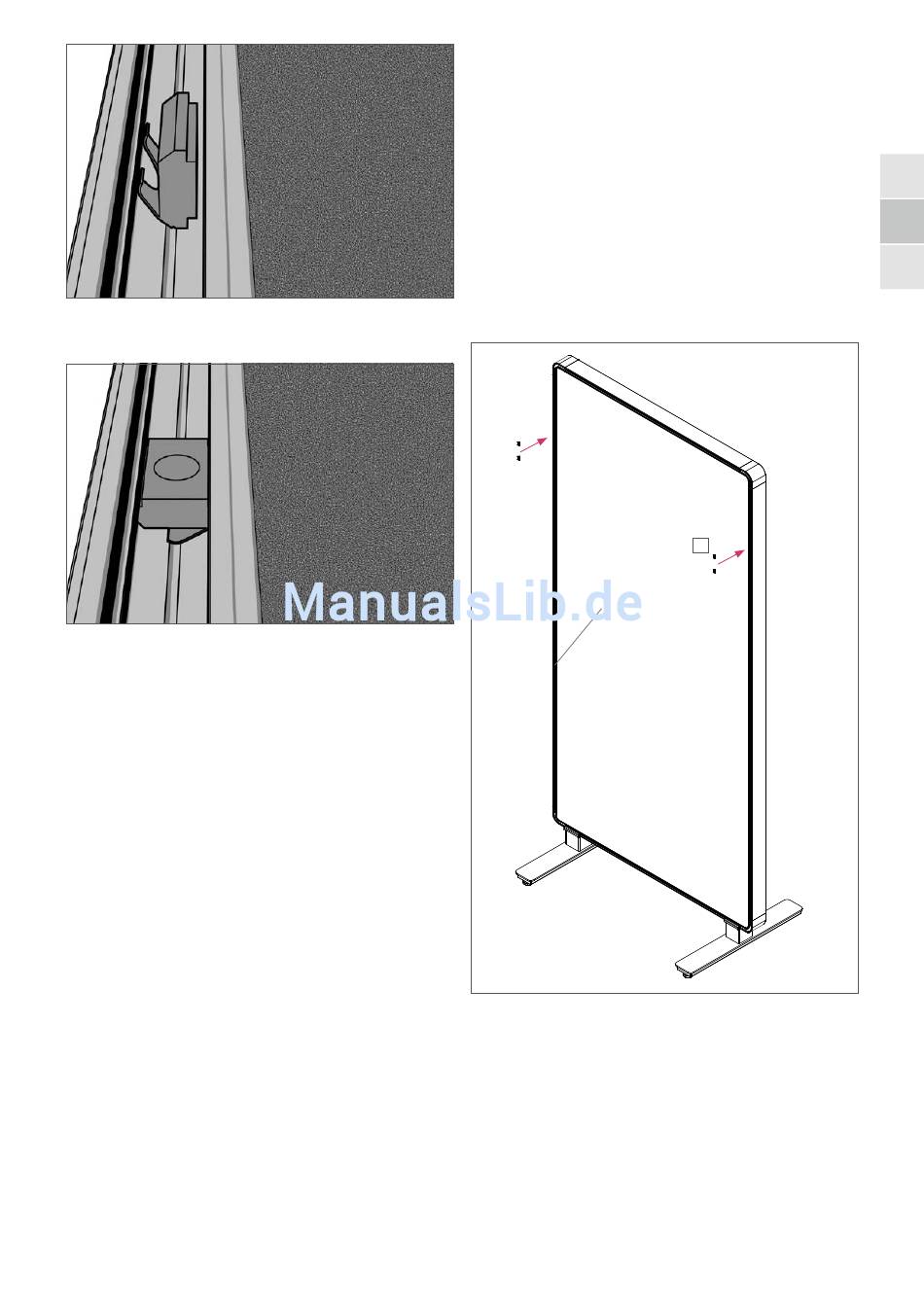

Illustration 22: Inserting the T-block (R)
Illustration 23: Fully assembled T-block (R).
4 3

Assembly of organisation rail

Assembly of T-blocks for organisation rail
a. Insert two T-blocks (R) into the vertical frame profile of the partition
wall in order to assemble the organisation rail. When doing this,
ensure the orientation of the T-blocks so the clamping faces will
be uppermost when assembled. The open side points upwards
(see illustration 22). Press the T-blocks down on the edge for the
final positioning in the frame profile (see illustration 23).
b. Repeat step a for the second pair of T-blocks (on the opposite side
of the vertical frame profile).
vertical frame profile
Illustration 24: Overview for the assembly of T-blocks (R)
R
39
