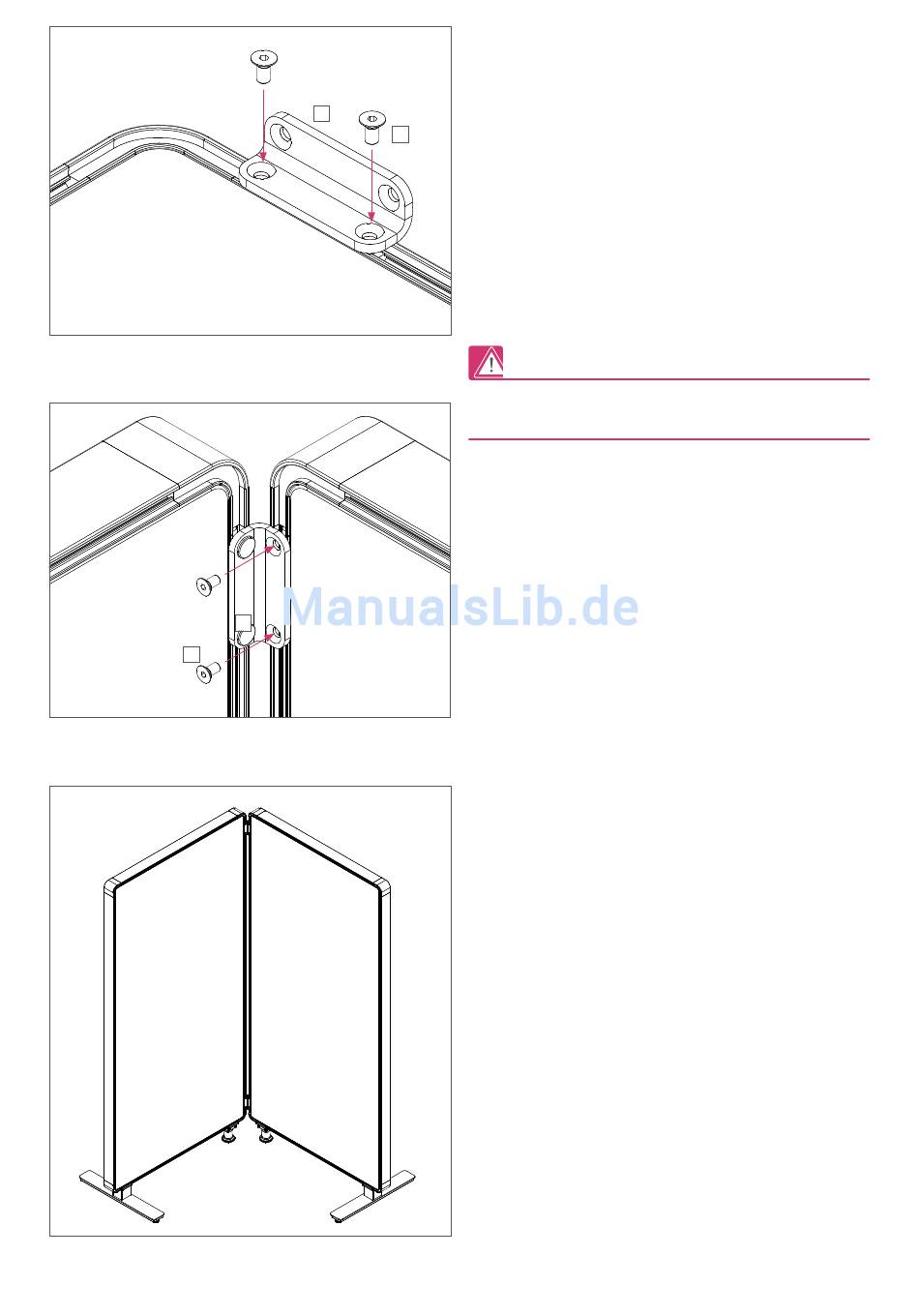

Illustration 19: Screwing down the angle connector (N)
P
Illustration 20: Screwing down the angle connector (N)
Illustration 21: Fully connected partition walls
38
N
P
Q
L
Screwing the angle connectors onto the vertical frame profile of
the partition wall
a. Place the angle connectors (N) onto the prepositioned T-blocks of
the first partition wall.
b. Screw the screws (P) firmly into the T-blocks of the first partition
wall. The recommended tightening torque with a torque wrench is
2.5 Nm ± 0.5 Nm (see illustration 19).
c. Place the partition walls in an upright position if possible with a
second person. A second person facilitates the subsequent
assembly of the angle connectors. Position the partition wall at the
appropriate angle (90°/120°/135°/180°) in relation to each other.
Prior to placing the partition wall in an upright position, ensure that the
relevant adjustable feet (see page 14) are assembled correctly.
d. Screw the screws (P) firmly into the T-blocks of the second/
additional partition wall. The recommended tightening torque with
a torque wrench is 2.5 Nm ± 0.5 Nm (see illustration 20).
e. Push the cover caps (Q) into the screws (P) of the angle connector
(see illustration 20).
f. The partition walls are now joined together at the required angle
(with two angle connectors per joint, see illustration 21).
