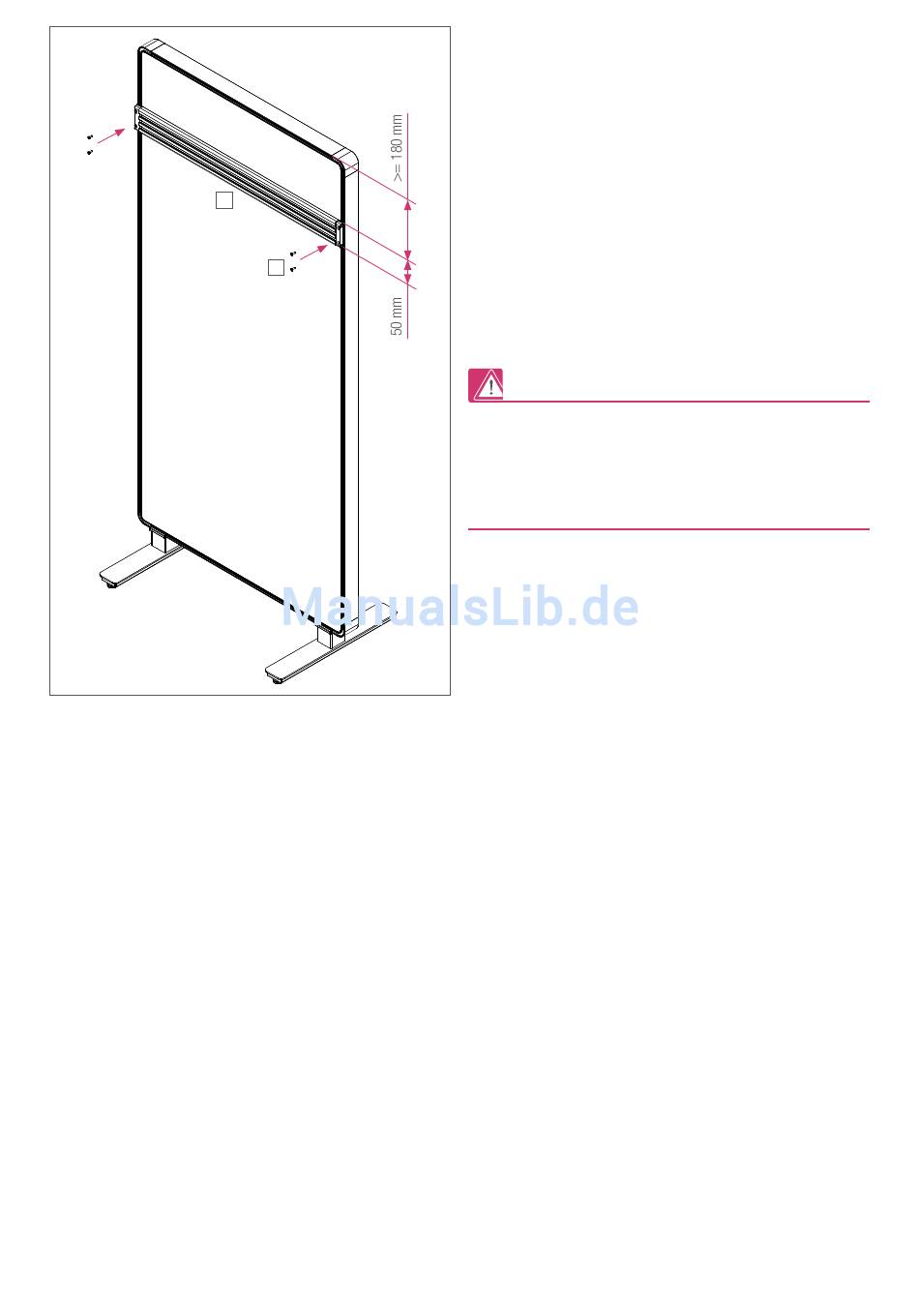

Illustration 25: Screwing together the organisation rail (S)
40
U
Screwing the organisation rail onto the frame profile
a. Place the T-blocks (R) onto the vertical frame profile (see illustra-
tion 25) at a minimum distance of 180 mm to the upper edge of
the frame and at an axle distance of 50 mm.
In order to avoid it being positioned at an angle, it has to be
ensured that both sides of the screen have the same distance to
the upper edge of the vertical frame profile.
b. Place the organisation rail (S) onto the pre-positioned T-blocks (R).
c. Screw the screws (U) lightly into the T-blocks.
d. Set the organisation rail at the same distance to the upper edge of
the partition wall and then firmly tighten the screws (U) (see
warnings!). The recommended tightening torque with a torque
wrench is 2 Nm ± 0.5 Nm.
Ensure that the screws and T-blocks fit firmly (recommended
tightening torque 2 ± 0.5 Nm)! Failure to observe this may pose the
risk that the organisation rail is not sufficiently connected with the
partition wall therefore possibly resulting in the partition wall falling
down and posing a risk of injury.
