4 ASSEMBLY
D
H

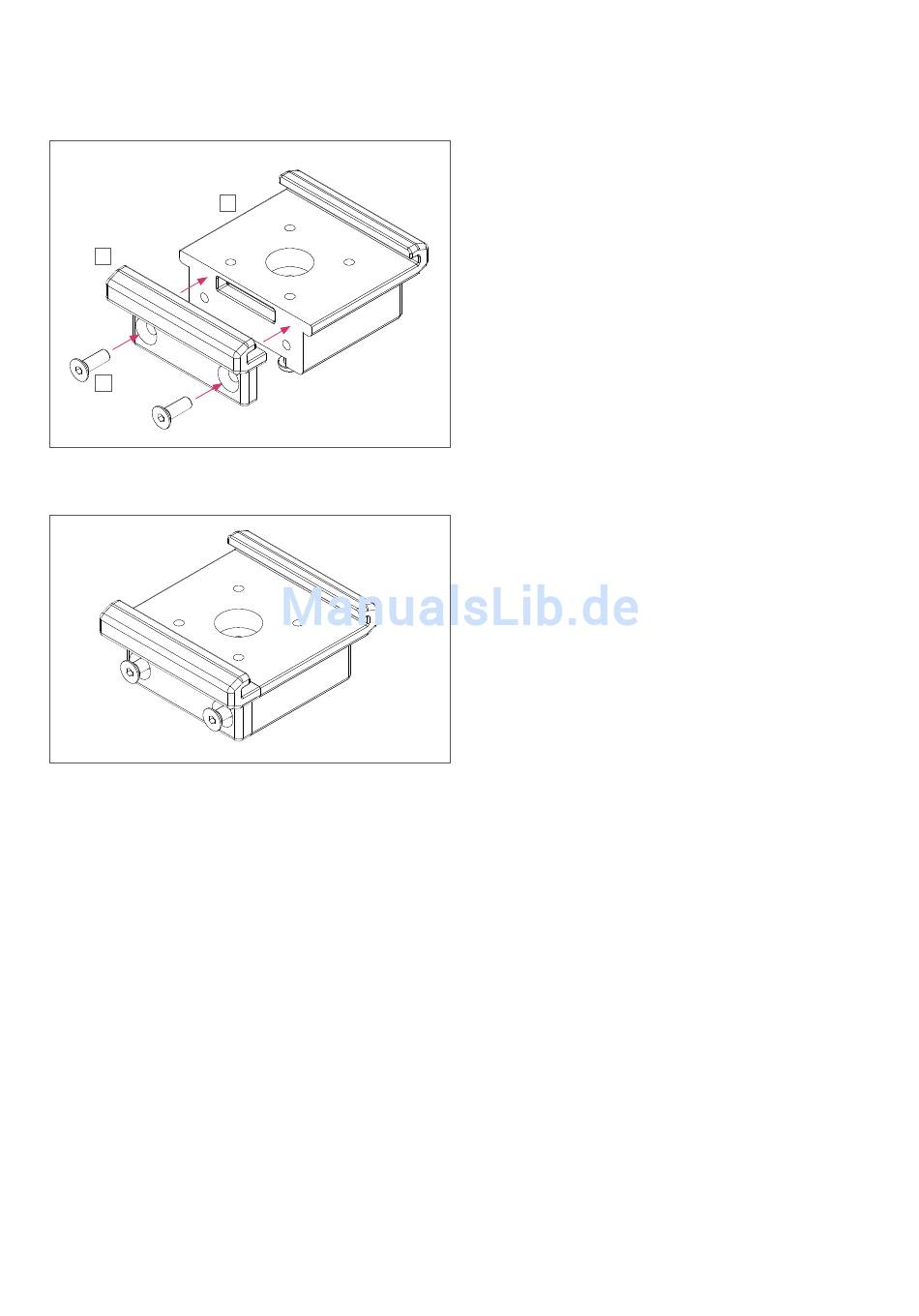

Illustration 1: Joining bracket (D) with clamping plate (C)
Illustration 2: Bracket (D) and clamping plate (C) joined together
30
C
4 1

Assembly of hardware

4 1 1

Assembly of brackets for fixing the hardware

Joining the clamping plate with the bracket
a. Screw two screws (H) lightly through the bracket (D) into the
clamping plate (C) using a 2.5 mm hexagon socket wrench.
b. Repeat step a with the second bracket and clamping plate for
each partition wall.
