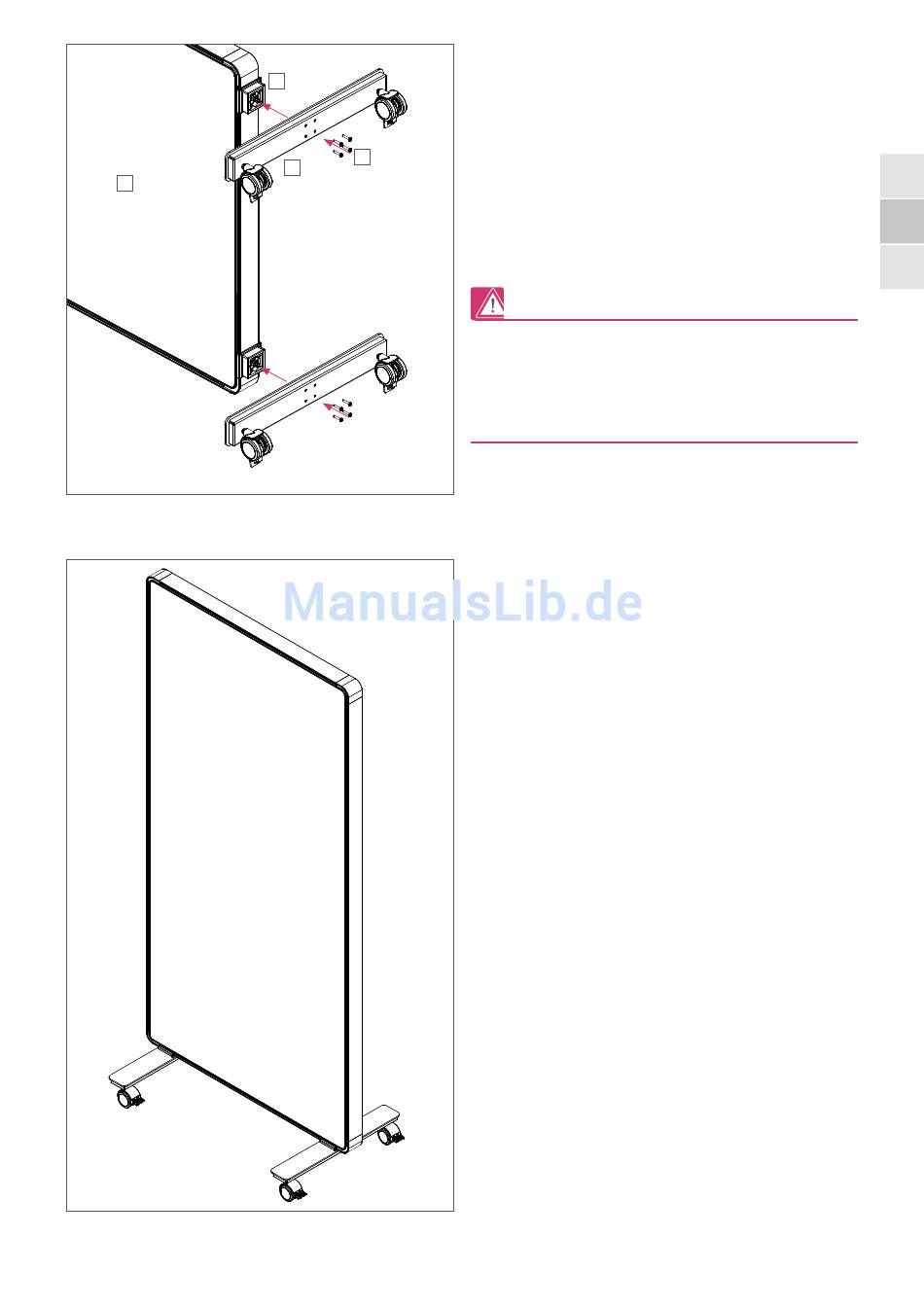

Illustration 7: Assembly of the cantilever
Illustration 8: Fully assembled cantilever
C
G
B
Fitting the cantilever with castors onto the partition wall
a. Screw the screws (G) through the cantilever (B) into the clamping
plate (C) and firmly tighten them using a 2.5 mm hexagon socket
wrench (see illustration 7). The recommended tightening torque
with a torque wrench is 2.5 Nm ± 0.5 Nm.
b. Repeat step a in order to fit the second cantilever with castors.
c. The cantilevers are now fully assembled. Place the partition wall
with the cantilevers in an upright position now (see illustration 8).
Make absolutely sure that the screws are tightened properly (recom-
mended tightening torque: 2.5 Nm ± 0.5 Nm). Failure to observe this
may pose the risk of the cantilevers with castors not being sufficiently
connected to the partition wall consequently resulting in the partition
wall detaching from the cantilevers and posing a risk of injury.
