ROTOCLEAR C PRO

Startup

The camera system is only to be put into
operation when the machine in which it is installed
complies with the provisions of Directive 2006/42/
EC (Machinery Directive).
Commissioning is only to be performed by
qualified specialist personnel. During commis-
sioning, components that are starting up or spin-
ning pose a hazard. Avoid any contact during
operation.
Wear protective equipment, including safety
glasses.
Only connect and disconnect the camera
heads when they are de-powered so that the sys-
tem cannot be damaged. Depending on the
desired use, establish a connection to an HDMI or
DisplayPort monitor or to a network. It is also pos-
sible to use both options in parallel.
The Rotoclear C Pro is only to be put into
operation when it is in an installed state, such that
the heat can be dissipated adequately.
The operation of the camera heads being
mounted in a thermally isolated fashion (small
connecting area in combination with thermo-in-
sulating material) is prohibited. Risk of burns due
to temperatures exceeding 60 °C on the cylinder
barrel surface of the camera head.
The camera head is supplied with a voltage of
48 VDC. According to the IEC 60204-1:2019-06
standard, a maximum of 15 VDC may be applied to
the loose end of the data cable when it is used in
wet areas, such as in the tool spindle. In this case,
the power supply is shut off when the connection
between the control unit and the camera head is
74
severed. It is only when the camera head is recon-
nected that the necessary supply voltage is once
again applied. The camera head is detected via a
test signal at 5 VDC. If this is insufficient according
to the machine manufacturer's risk assessment, a

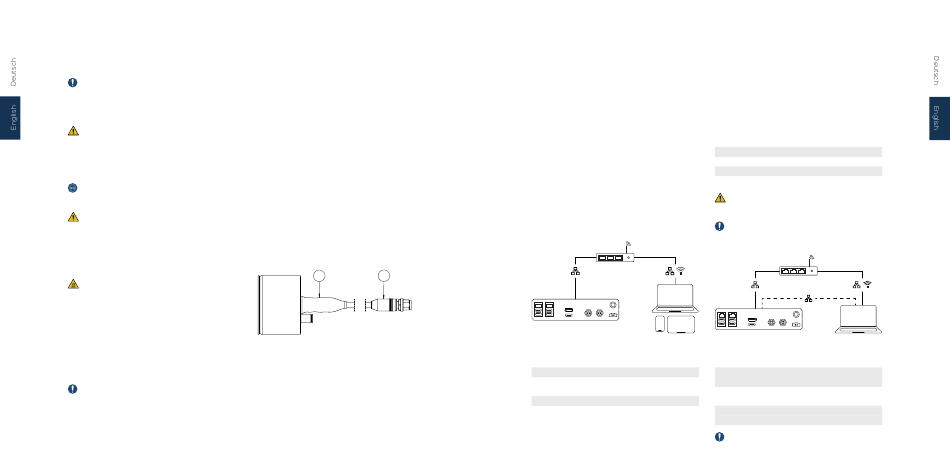

pigtail cable (Fig. 12-A) can be attached to the
connector of the camera head and the connec-
tion made permanent, e.g. by means of a shrink
hose (Fig. 12-B). Thus, an electrically safe connec-
tion for wet conditions is established. Instead of
installing the data cable with two male ends, it is
necessary to replace it with an extension data
cable with a female end pointing towards the
camera head and one male end pointing towards
the control unit. Upon receipt of a direct inquiry,
the manufacturer can provide the camera heads
with a non-reversible pigtail cable and an exten-
sion cable. For organizing the interfaces, data
cables and pigtail cables without the manufac-
turer, please refer to the necessary data cable
specifications see section "Interface" in chapter
"Technical data" in the appendix.
B A
Figure 12
OPERATING MANUAL

Connection options

The user interface (camera image and settings)
can be accessed using one of the browsers listed
in the "System Requirements" section of the tech-
nical specifications for the network connection
types described below.
Network with DHCP server
In most cases, the IP address is assigned to the
control unit by the DHCP server of the network.
The address will be listed in the connection over-
view of the network devices. If you do not possess
the necessary permissions to view the connection
overview, please contact your network adminis-
trator.
Figure 13
User interface (browser)
http://192.168.1.2 *
RTSP address (VLC-Player, Surveillance Software,
etc.)
rtsp://192.168.1.2:1025 *
* IP address is only an example. You can find the
assigned IP address in the router's connection
overview or by using a network scanner (e.g. www.
softperfect.com/products/networkscanner).
75
Network without DHCP Server |
Direct connection
In the case of a direct connection with an end
device or in a network without a DHCP server,
the pre-configured fixed IP address is as fol-
lows: 192.168.214.221 (Network interface 1) resp.
192.168.222.222 (Network interface 2).
For this purpose, enter the IP address or URL
http(s)://192.168.214.221
resp.
http(s)://192.168.222.222
in the address bar of your browser.
Ensure that no other device in your network
can be reached via this address.
Make sure that the end device is located in
the same network with a fixed IP address.
Figure 14
User interface (Browser)
http(s)://192.168.214.221
http(s)://192.168.222.222
RTSP address (VLC-Player, Surveillance Software,
etc.)
rtsp://192.168.214.221:1025
rtsp://192.168.222.222:1025
The Control unit can be reached via the static
IP addresses after approximately one minute if it is
