Components

Control unit

The control unit is typically installed in the control
cabinet or in a protected area meant for electronic
devices, and therefore only has a basic protection
class. The control unit is equipped with a power
supply connection (Fig. 1-A), a switch with a blue
signal light to indicate an active power supply (Fig.
1-B), two interfaces for the camera heads (Fig.
1-C1, 1-C2), an output for connecting an HDMI (Fig.
1-D) and a DisplayPort monitor (Fig. 1-E) and four
USB slots (Fig. 1-F1, 1-F2).

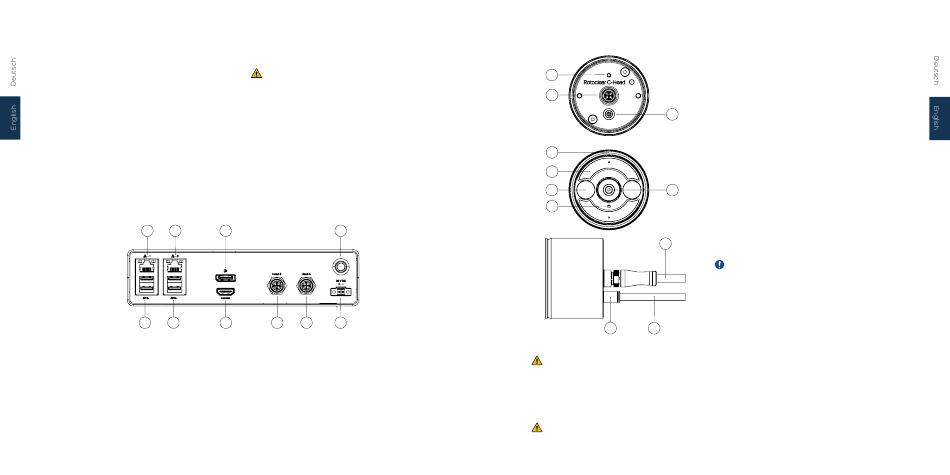

G1 G2 E
F1 F2 D
Figure 1
There are two Ethernet interfaces, each with 1 Gbit
(Fig. 1-G1, 1-G2). This makes it possible to use the
control unit simultaneously to save data on a net-
work drive or for local real-time applications in the
machine network and for remote applications in
the company network.
On the rear of the control unit, there is a clip for
top-hat rail mounting.
60

Camera head

The camera heads are usually installed in the
application area. In assembly situations where the
camera head's connection side on its rear is
unprotected and exposed to fluids, it will be nec-
essary to refer to chapter "Startup".
The connection takes place via the interface to
the control unit on the rear of the camera head
(Fig. 2-A). The data cable (Fig. 2-A1) supplies the
camera head with energy and is designed for con-
trol signals as well as data transfer with very high
bandwidth. Hence, when laying the data cables,
ensure that no interfering signals are introduced,
e.g. due to power cables that are laid in paral-
lel, carrying alternating current and insufficiently
B
C1 C2 A
shielded. Do not pinch or kink the data cable. The
camera head has a ground connection point (Fig.
2-H). For the ground connection, it will be neces-
sary to refer to the chapter "Startup".
At the plug connector (Fig. 2-B), the camera
head is supplied with sealing air so that the area
between the window and the cover is kept free of
the media in the environment.
The sealing air tube (Fig. 2-B1) has a diameter of
6 mm.
OPERATING MANUAL
H
A
B
C
D
E G
F
A1
B B1
Figure 2
In the event of incorrect adjustment, contam-
ination of the sealing air or damage to the spinning
window, liquid might contaminate the area
between the spinning window and the front of the
camera head, impairing the view and invalidating
the warranty.
Included in the scope of delivery is a covering
cap. Use it to cover the front of the camera head
temporarily in the event of damage if the machine
61
is to be put into operation before it is repaired.
When the covering cap is in use, deactivate the
sealing air.
The rotor (Fig. 2-C) is on the front, which is affixed
via a center screw (Fig. 2-G) to the motor shaft,
under which the LED lighting (Fig. 2-D) is located.
Located between the LED modules is the lens (Fig.
2-E), which is protected by the protective window.
On the opposite side, a second lens may be
installed depending on the model and configura-
tion variant. The sealing air is fed through the drill
hole (Fig. 2-F) into the intervening rotor space.
This drill hole must be kept free and must not be
covered or closed in any way.
The device must not be operated constantly
under water or cooling lubricant, neither com-
pletely nor partially. If liquid enters the device,
please check the installation parameters.
Use Rotoclear C Pro only as intended.
Rotoclear shall not be liable for any use that is not
as intended.
