ROTOCLEAR C PRO

Preparing the parts

Remove the camera system from the packaging.
When unpacking, pay attention to cleanliness.
Store all parts on a clean, shock-absorbing sur-
face or in the original packaging. Handle the prod-
uct with care. Do not touch the lens cover of the
camera head (E, 2) or the safety glass of the rotor
to ensure unimpeded viewing conditions.
The camera head, especially the glass-cov-
ered front, must not be subjected to impacts, oth-
erwise the bearing unit, the rotor or other parts
may be damaged.
The camera head is covered by a plastic cap.
Remove the cap and keep it in a safe place where
it is readily available for covering the camera head
in the event of damage, thereby protecting it from
further damage.
Rotor assembly
Remove the rotor from its packaging and place it
on the center flange of the camera head. Carefully
hold the rotor in place using your hand and tighten
the screw using a torque of 0,6 Nm. Never lock
the rotor in place using a sharp object, such as a
screwdriver. To remove the rotor, use the suction
cup provided.
Depending on the specific variant, the camera
head is pre-configured for a particular focus posi-
tion. Please refer to the nameplate of the camera
head for the focus position. The focus position
can only be changed by the manufacturer later
on because it is sealed to keep out media, partic-
ularly if the rotor fails due to damage from broken
tool or workpiece parts.
64
The rotor must be able to rotate freely; seal-
ing is achieved by the sealing air. Therefore, do not
install the enclosed sealing rings in the labyrinth of
the rotor outer ring under any circumstances!
These are intended for sealing at the holders. This
will impair the function and the system may be
damaged.
If adjustment of the focus is required, please
contact the manufacturer. Any attempt to open
the housing of the camera heads in order to adjust
the focus position yourself will invalidate the war-
ranty.
OPERATING MANUAL

Installation

Before beginning the installation work, it
must be ensured that the machine is switched off
by qualified specialist personnel and properly
secured against being switched back on. Failure
to observe this will result in a risk of injury.
When performing tasks in the working area of
the machine tool, there may be a risk of injury from
slippery surfaces and sharp edges. Wear suitable
protective equipment.
Before beginning work, ensure that compressed
air components to be connected are switched off
and ensure that the system is completely depres-
surized. Failure to observe this will result in a risk
of injury.
The assembly of the camera head can be
performed in various ways. Ensure that you install
the camera head such that heat can be ade-
quately dissipated by a metallic, heat-conducting
surface. Installation in a sheet metal panel is suffi-
cient for this purpose.
Please note that the camera head in particu-
lar should only be mounted in places that can be
safely accessible later, i.e. for maintenance pur-
poses.

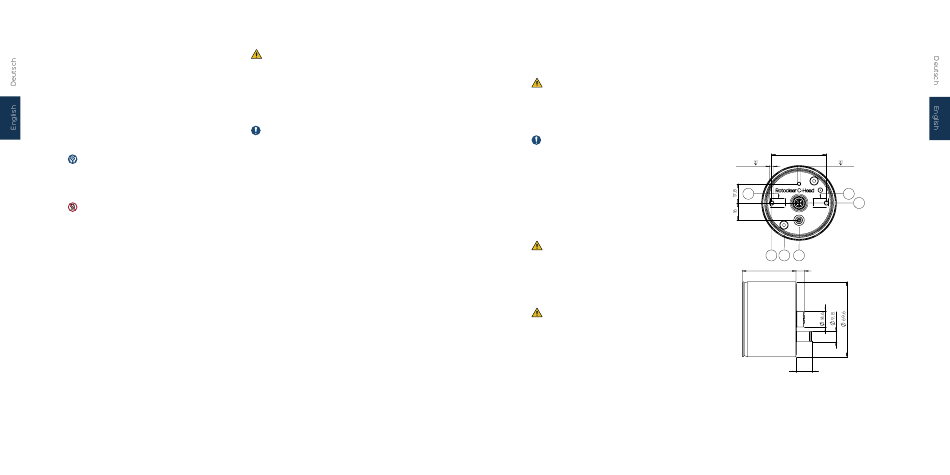

The screw threads are located in a line with the
positions of the camera lens(es) (Fig. 3-E1, or
depending on configuration Fig. 3-E2). For output
in landscape format, the screw positions (Fig. 3-C)
must be located along a horizontal line. For por-
trait format, they must be along a vertical line.
65
Mounting the camera head
In addition to the optionally available mount-
ing accessories (also see the sections "Flex arm
mount", "Ball mount" and "Spindle mounting"),
the camera head can be mounted according to
individual requirements. To seal the opening in
the housing wall, insert the sealing ring into the
groove (Fig. 3-D) provided (enclosed).
51
2× M4 4.0 M3 3.0
E2 E1
A
C D B
50 7,8
14,6
Figure 3
As described above, two M4 threads (Fig. 3-C) are
provided on the back of the housing as a mount-
ing interface.
For mounting, use the two M4 threads (Fig. 3-C)
on the rear side at a distance of 51 mm.
