Flex arm mount (through-wall mounting)
For installation, a round hole must be drilled in a
suitable location to accept a M32 × 1.5 thread.
H G1 G3 G2 C E B A
+ 0,5
32,5
- 0,3

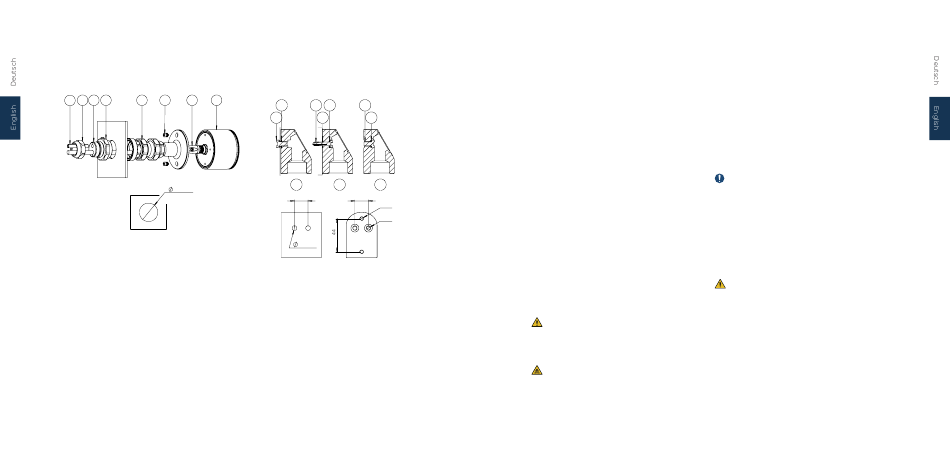

Figure 8
Feed the data cable (Fig. 8-B) through the hole
and fit the mount (Fig. 8-C) with inserted seal (Fig.
8-F).
From the opposite side, fit the metal parts of the
cable gland (Fig. 8-G1, G2) over the data cable.
Now screw the housing (Fig. 8-G2) of the cable
gland into the mount (Fig. 8-C) fitted from the
opposite side.
Fit the seal (Fig. 8-G3) between the metal parts
over the data cable. Make sure to select the corre-
sponding hole for the data cable.
Screw the cable gland together. Before it is tight-
ened, insert the sealing air tube (Fig. 8-H) into the
6 mm hole.
D D
70
Flex arm mount (pre-wall mounting)
There are several options for fixing the flex arm
mount (pre-wall mounting) in place:
B C D E
A D B
1. 2. 3.
18 18
M5
M6
+ 0,3
6,2
- 0,1
Figure 9
1. In sheet metal: Insert the M6 screws through
the sheet metal from the rear (Fig. 9-A) and fit
the M6 Usit ring (Fig. 9-B) over them. Use it to
screw the adapter in place.
2. In solid material with M5 thread: In this case, in-
sert the M5 × 20 screws (Fig. 9-C) with the M5
Usit ring (Fig. 9-D) fitted from the inside of the
adapter and screw it to the receiving part via
the prepared M5 threads.
3. M5 threads are available on the rear for other
types of mounting, see Figure 9. For this pur-
pose, seal the holes on the rear of the adapter
from the inside using the M6 screw (Fig. 9-E)
with the M6 Usit ring (Fig. 9-B) attached, as de-
scribed in 1, making sure that they are airtight.
Now feed the data cable through the adapter from
the angled side and screw the jointed section of
the mount onto the adapter. Use the enclosed
OPERATING MANUAL
sealing ring to properly seal the screw connec-
tion. On the flat side, mount the cable gland as
described in the previous section. Connect the
sealing air tube to the 6 mm hole.
An insertion depth of approx. 20-30 mm is suf-
ficient; the sealing air tube does not have to be
pulled through the flex arm mount to the cam-
era head. The sealing air flows freely through the
entire flex arm mount to the camera head.
The sealing air tube is fixed in place by clamping
the cable gland closed.
Alternatively, a protective hose can also be
mounted between the cable gland and the
adapter. Cable glands are available separately for
feeding the supply line through the machine wall.
Flex arm mount (magnetic mounting)
The flex arm mount is available with a magnetic
shoe for flexible and simple or temporary installa-
tion, for example for test purposes. As described
in the previous section under point 3, the adapter
must be sealed airtight using the M6 screws.
For permanent installation, fixed mounting is
recommended. To do this, remove the magnetic
shoe; the holder then corresponds to the "pre-
wall mounting" version.
Please note that extremely powerful forces
(( ))
may result from the neodymium magnets used.
Opposing poles attract and can strike each other.
There is a risk of injury, e.g. of fingers getting
clamped. Wear suitable protective equipment,
such as gloves.
Pay attention to the magnetic forces if you have
medical circulatory support implanted. Do not
71
hold the components directly in front of your body.
Keep a minimum distance of 20 cm between the
implant and the magnetic saddle.
Protective hose
A protective hose is available for the flex arm
mount variants (Fig. 10-A) pre-wall mounting and
magnetic mounting in order to be able to route the
data cable and sealing air line in the machine inte-
rior protected from chips and cooling lubricants.
The protective hose is not 100% protected
against the penetration of cooling lubricants or
oils. It mainly protects the internal lines from
mechanical damage.
The protective hose can also be combined with
the Flex arm mount for through-wall mounting,
however, for this mount it is intended that the
supply lines are routed directly through the sheet
metal wall into a protected area.
If the protective hose is combined with the
flex arm mount (magnetic mounting) for tempo-
rary installation, make sure that the protective
conduit is routed appropriately and fastened in
such a way that the camera head is held securely.
For installation, the mount is put into operation as
described above. Instead of the nut (Fig. 10-B) of
the cable gland, the side of the protective hose
with hose gland (Fig. 10-C) is screwed onto the
sealing rubber (Fig. 10-D) of the cable gland with-
out lock nut and clamped in the process.
Make sure that the sealing air hose (Fig. 10-E) and
data cable (Fig. 10-F) are correctly seated in the
sealing rubber.
