1.0 INTRODUCTION
The MaxBlend 2 is a compact air/oxygen gas mixing device which incorporates the use of a
battery powered oxygen monitor. The gas mixing device (blender) provides precise mixing of
medical-grade air and oxygen, while the monitor measures the selected oxygen concentra-
tions from the blender's gas flow and displays these measured concentrations on a digital
display. The monitor provides high and low alarm limits which, when exceeded, cause an
audible and visual alarm.
1.1 Indication for Use
The MaxBlend 2 is designed to provide a continuous air/oxygen gas mixture and to continu-
ously monitor the concentration of oxygen being delivered to infant, pediatric, and adult
patients. It is a restricted medical device intended for use by qualified, trained personnel,
under the direction of a physician, in professional healthcare settings, i.e., hospital, subacute,
and nursing-care facilities where the delivery and monitoring of air/oxygen mixtures is
required. This is not intended as a life supporting device.

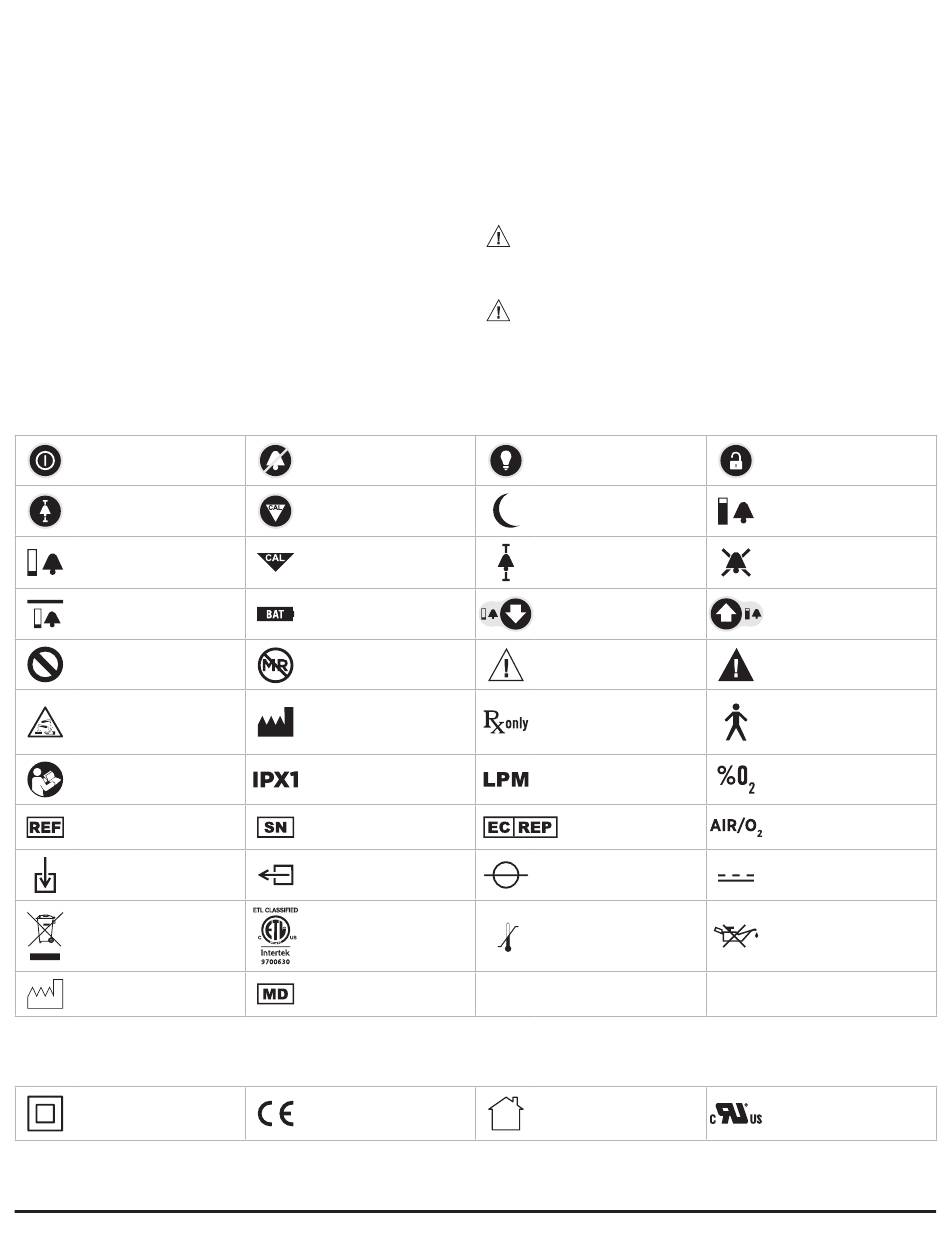

1.3 Symbol Guide
The following symbols and safety labels are found on the MaxBlend 2 and/or labeling:
ON/OFF Key
Smart Alarm Key
Low Alarm Indicator
Below 18% Alarm Indicator
Do Not
Corrosive
Attention, consult
accompanying documents
Catalog Number
Inlet
Do not throw away. Follow
local guidelines for disposal
Date of Manufacture
POWER SUPPLY SYMBOL GUIDE
The following symbols and safety labels are found on the MaxBlend 2 power supply (sold separately):
Two means of patient
protection (double insulated)
WWW.MAXTEC.COM • (800) 748-5355
1.2 MAX-550E Oxygen Sensor
The MAX-550E is a galvanic, partial pressure sensor that is specific to oxygen. It consists of two
electrodes (a cathode and an anode), a teflon membrane and an electrolyte. Oxygen diffuses
through the teflon membrane and immediately reacts electrochemically at a gold cathode.
Concurrently, oxidation occurs electrochemically at a lead anode, generating an electrical cur-
rent and providing a voltage output. Electrodes are immersed in a unique gelled weak acid
electrolyte, which is responsible for the sensor's long life and motion insensitive characteristic.
Since the sensor is specific to oxygen, the current generated is proportional to the amount of
oxygen present in the sample gas. When no oxygen is present, there is no electrochemical
reaction, and therefore, negligible current is produced. In this sense, the sensor is self-zeroing.
lyte and lead (Pb). These materials are hazardous waste constituents and should be disposed
of properly, or returned to Maxtec for proper disposal or recovery.
tion point enough to require recalibration.
Silent Key
CAL (Calibration Key)
Calibration Reminder
Low Battery Indicator
MR Unsafe
Manufacturer
Ingress Protection Rating
Serial Number
Outlet
Meets ETL standards
-15°C
(5°F)
Medical Device
Conforms to EU requirements.
Combined UL / CSA Mark
5
CAUTION: The MAX-550E oxygen sensor is a sealed device containing a mild acid electro-
CAUTION: Dropping or severely jarring the sensor after calibration may shift the calibra-
Backlight Key
Sleep Mode Indicator
Smart Alarm Mode Indicator
DOWN (Low Alarm Key)
Caution
Federal law (USA) restricts
this device to sale by or
on order of a physician.
Liters Per Minute
Authorized Representative
in the European Community
Read Flow at Center of Ball
50°C
(122°F)
Storage Temperature Range
For use in dry indoor
locations.
Unlock Key
High Alarm Indicator
Alarm Silence Indicator
UP (High Alarm Key)
Warning
Type B Applied Parts
Oxygen Percent
Oxygen Enriched Air
Direct Current
Use No Oil
Combined UL / CSA Mark
