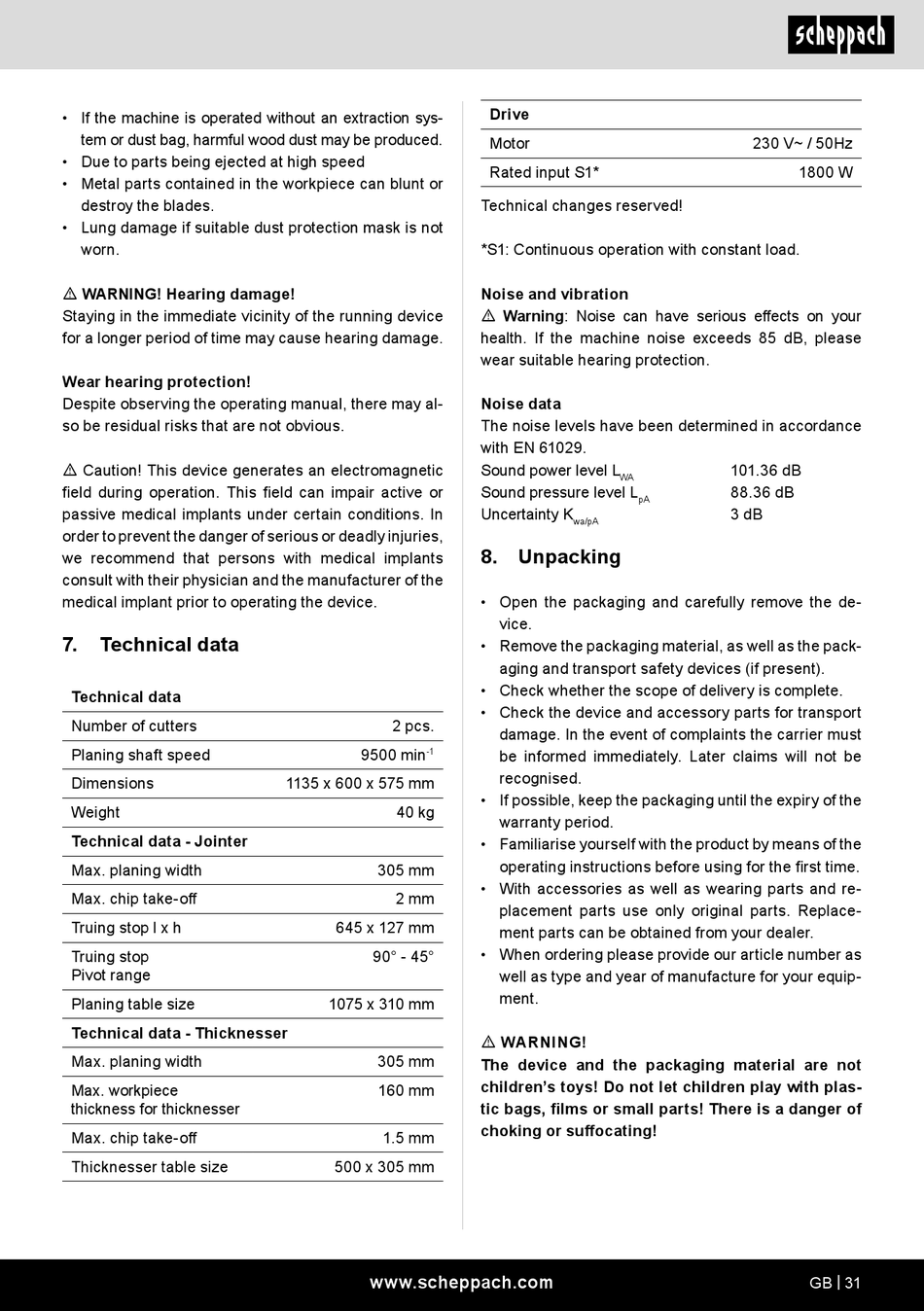

Scheppach HMS1250 Originalbetriebsanleitung Seite 31

• If the machine is operated without an extraction sys-
tem or dust bag, harmful wood dust may be produced.
• Due to parts being ejected at high speed
• Metal parts contained in the workpiece can blunt or
destroy the blades.
• Lung damage if suitable dust protection mask is not
worn.
m WARNING! Hearing damage!
Staying in the immediate vicinity of the running device
for a longer period of time may cause hearing damage.
Wear hearing protection!
Despite observing the operating manual, there may al-
so be residual risks that are not obvious.
m Caution! This device generates an electromagnetic
field during operation. This field can impair active or
passive medical implants under certain conditions. In
order to prevent the danger of serious or deadly injuries,
we recommend that persons with medical implants
consult with their physician and the manufacturer of the
medical implant prior to operating the device.
7. Technical data
Technical data
Number of cutters
Planing shaft speed
Dimensions
Weight
Technical data - Jointer
Max. planing width
Max. chip take-off
Truing stop l x h
Truing stop
Pivot range
Planing table size
Technical data - Thicknesser
Max. planing width
Max. workpiece
thickness for thicknesser
Max. chip take-off
Thicknesser table size
2 pcs.
9500 min
-1
1135 x 600 x 575 mm
40 kg
305 mm
2 mm
645 x 127 mm
90° - 45°
1075 x 310 mm
305 mm
160 mm
1.5 mm
500 x 305 mm
www.scheppach.com
Drive
Motor
Rated input S1*
Technical changes reserved!
*S1: Continuous operation with constant load.
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please
wear suitable hearing protection.
Noise data
The noise levels have been determined in accordance
with EN 61029.
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
8. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating instructions before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
230 V~ / 50Hz
1800 W
101.36 dB
88.36 dB
3 dB
