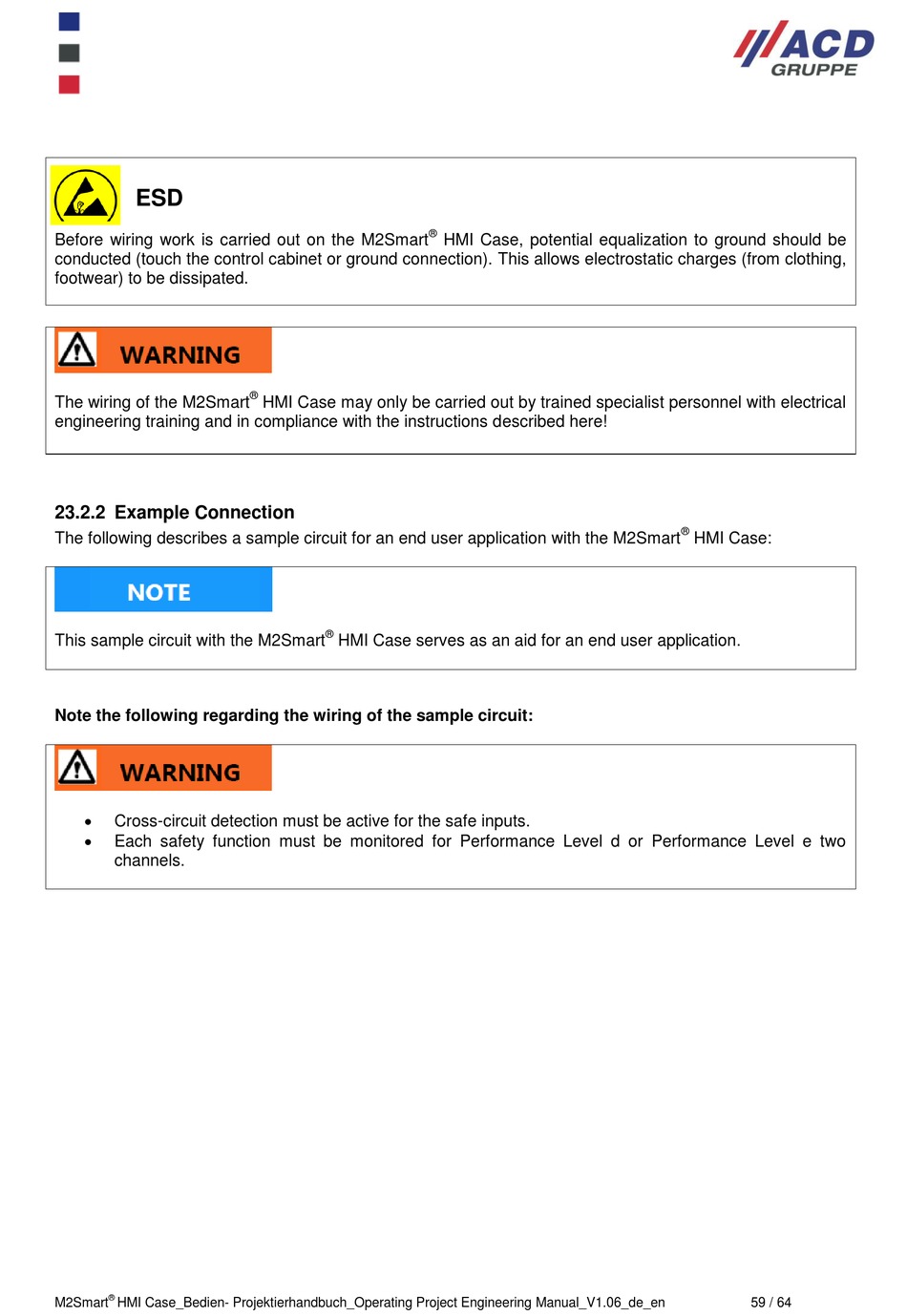

ACD GRUPPE M2Smart HMI Case Projektierungshandbuch Seite 59

ESD
Before wiring work is carried out on the M2Smart
conducted (touch the control cabinet or ground connection). This allows electrostatic charges (from clothing,
footwear) to be dissipated.
The wiring of the M2Smart
engineering training and in compliance with the instructions described here!
23.2.2 Example Connection
The following describes a sample circuit for an end user application with the M2Smart
This sample circuit with the M2Smart
Note the following regarding the wiring of the sample circuit:

Cross-circuit detection must be active for the safe inputs.

Each safety function must be monitored for Performance Level d or Performance Level e two
channels.
®
M2Smart HMI Case_Bedien- Projektierhandbuch_Operating Project Engineering Manual_V1.06_de_en
®
HMI Case may only be carried out by trained specialist personnel with electrical
®
HMI Case serves as an aid for an end user application.
®
HMI Case, potential equalization to ground should be
®
HMI Case:
59 / 64
