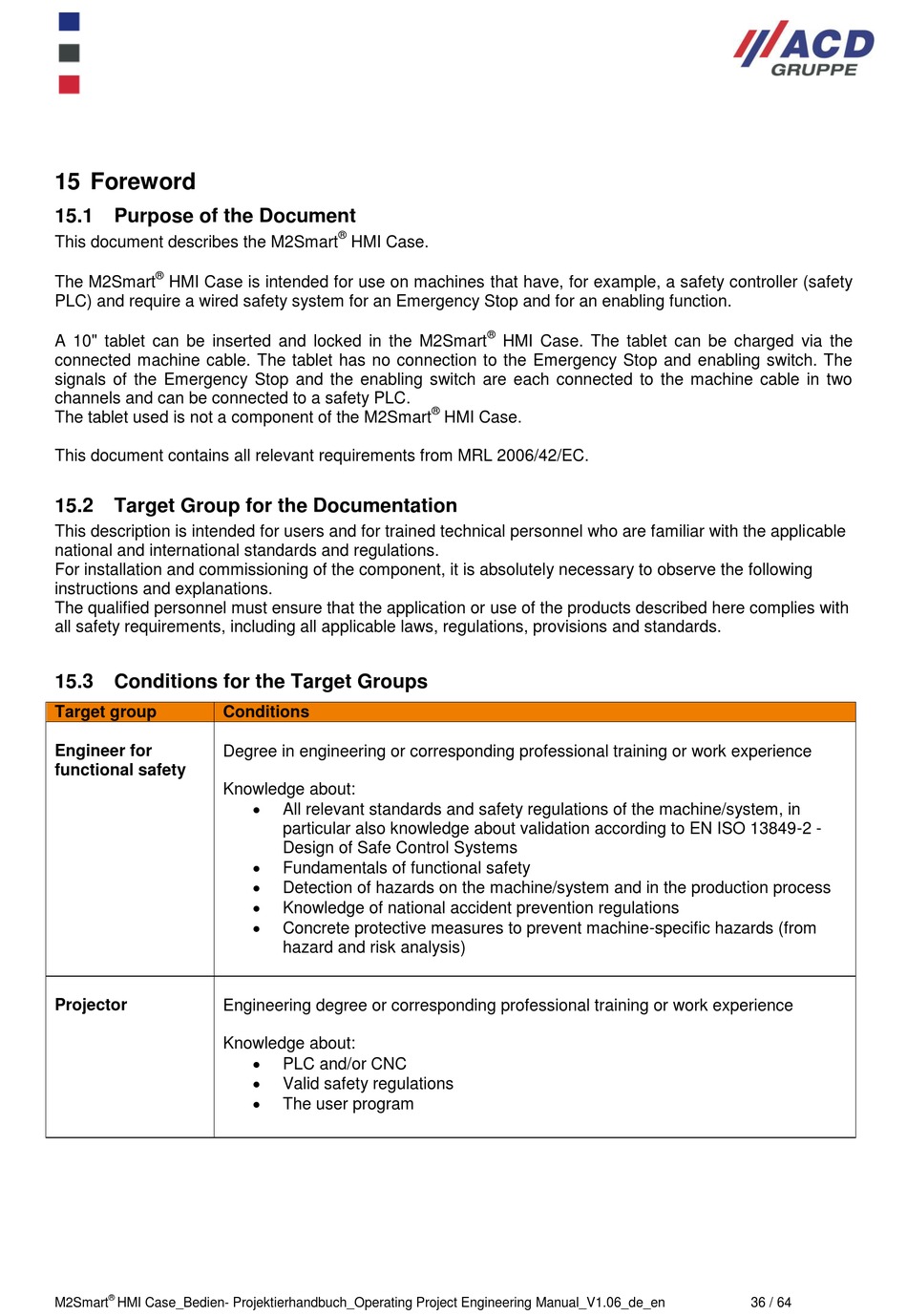

ACD GRUPPE M2Smart HMI Case Projektierungshandbuch Seite 36

15 Foreword
15.1 Purpose of the Document
This document describes the M2Smart
®
The M2Smart HMI Case is intended for use on machines that have, for example, a safety controller (safety
PLC) and require a wired safety system for an Emergency Stop and for an enabling function.
A 10" tablet can be inserted and locked in the M2Smart
connected machine cable. The tablet has no connection to the Emergency Stop and enabling switch. The
signals of the Emergency Stop and the enabling switch are each connected to the machine cable in two
channels and can be connected to a safety PLC.
The tablet used is not a component of the M2Smart
This document contains all relevant requirements from MRL 2006/42/EC.
15.2 Target Group for the Documentation
This description is intended for users and for trained technical personnel who are familiar with the applicable
national and international standards and regulations.
For installation and commissioning of the component, it is absolutely necessary to observe the following
instructions and explanations.
The qualified personnel must ensure that the application or use of the products described here complies with
all safety requirements, including all applicable laws, regulations, provisions and standards.
15.3 Conditions for the Target Groups
Target group Conditions
Engineer for Degree in engineering or corresponding professional training or work experience
functional safety
Knowledge about:
Projector Engineering degree or corresponding professional training or work experience
Knowledge about:
®
M2Smart HMI Case_Bedien- Projektierhandbuch_Operating Project Engineering Manual_V1.06_de_en
®
HMI Case.

All relevant standards and safety regulations of the machine/system, in
particular also knowledge about validation according to EN ISO 13849-2 -
Design of Safe Control Systems

Fundamentals of functional safety

Detection of hazards on the machine/system and in the production process

Knowledge of national accident prevention regulations

Concrete protective measures to prevent machine-specific hazards (from
hazard and risk analysis)

PLC and/or CNC

Valid safety regulations

The user program
®
HMI Case. The tablet can be charged via the
®
HMI Case.
