2. Turn the handle to the left-handed position and tighten the screw again.
The tightening torque is 5 Nm.
®

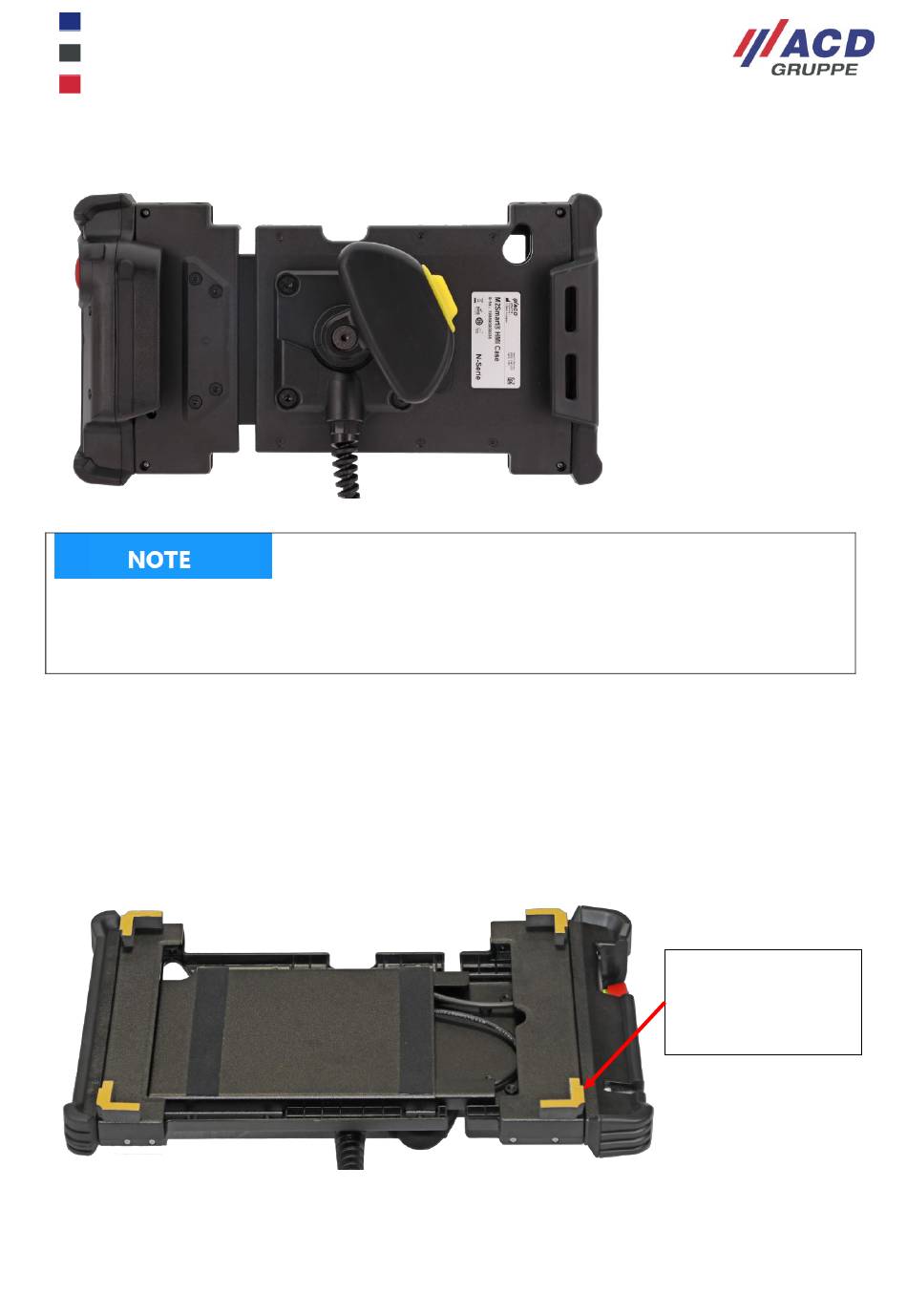

Figure 23: M2Smart HMI Case rear adjustment handle 2
Turn the handle only within the two stops for left/right-handed operation to avoid damaging the cable to the
enabling switch. Only loosen the screw, do not remove it completely. After the screw has been opened and
closed 10 times, the inserted seal must be replaced to ensure the specified protection class IP65.
21.2 Inserting the Tablet
®
The M2Smart HMI Case is designed for the iPad 8th generation. The iPad 8th generation can be inserted
directly into the case. When using the Samsung Galaxy Tab A7 Wi-Fi or the Lenovo Tab M10 Full HD Plus,
®
the M2Smart HMI Case tablet buffer corners must be attached first.
21.2.1 Attaching the M2Smart
Samsung Galaxy Tab A7:
Positioning of the M2Smart
Figure 24: Alignment of the M2Smart
®
M2Smart HMI Case_Bedien- Projektierhandbuch_Operating Project Engineering Manual_V1.06_de_en
®
HMI Case Tablet Buffer Corners
®
HMI Case tablet buffer corners:
®
HMI Case tablet buffer corners for Samsung Tab A7
The widening of the
four tablet buffer
corners must point to
the left or right outside.
