20.3 Device Overview
®

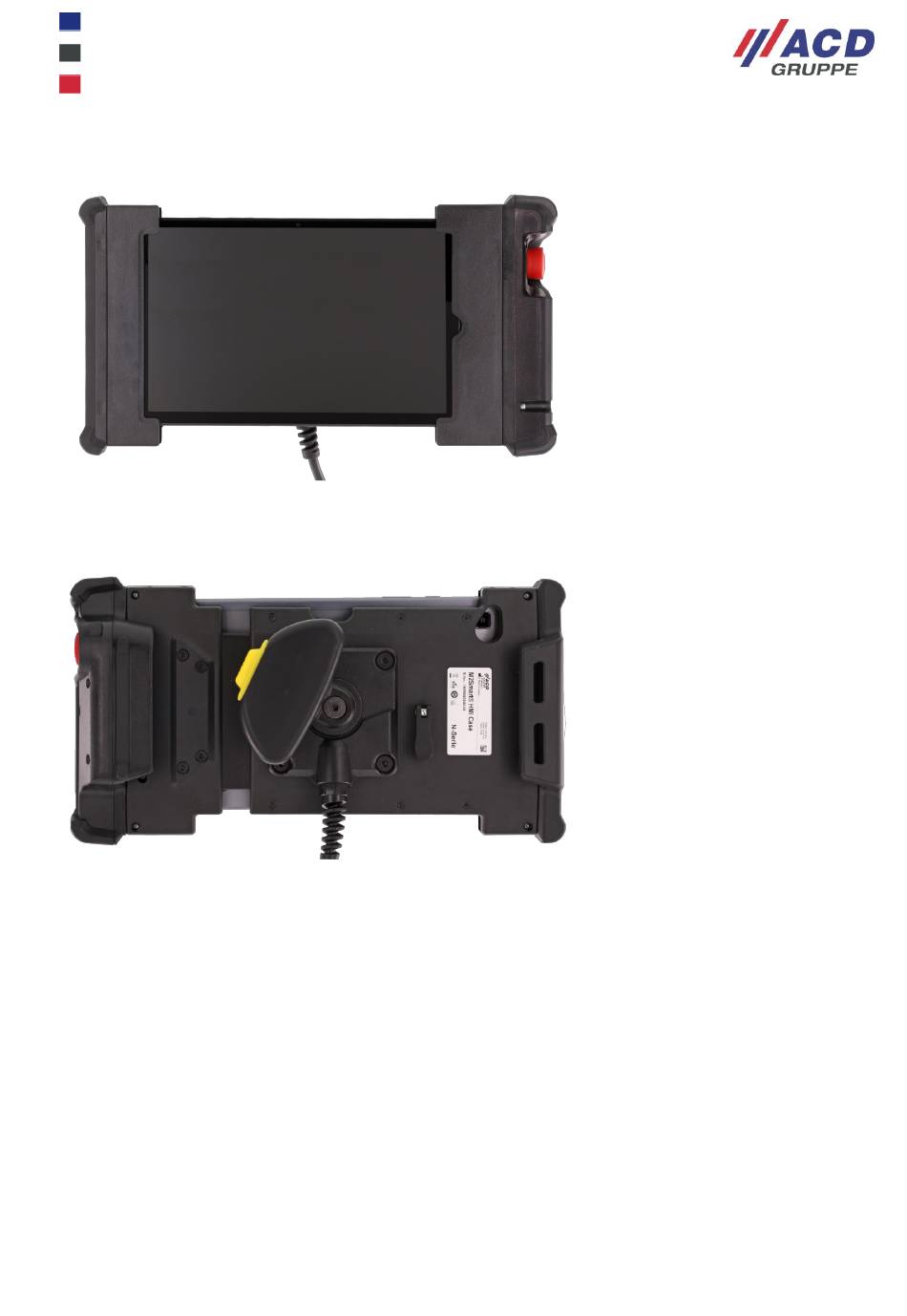

Figure 19: M2Smart HMI Case with Emergency Stop
®
Figure 20: Rear of M2Smart
®
M2Smart HMI Case_Bedien- Projektierhandbuch_Operating Project Engineering Manual_V1.06_de_en
HMI Case with enabling switch
The adjacent figure shows the
®
M2Smart HMI Case with
inserted tablet and Emergency
Stop module on the right side.
The adjacent figure shows the
®
M2Smart HMI Case with the
enabling switch on the back.
The position of the enabling
switch can be ergonomically
adjusted by rotating the
handle.
