21.2.2 Unlocking the M2Smart HMI Case
®
To unlock the M2Smart HMI Case, first open the eccentric lever:
®

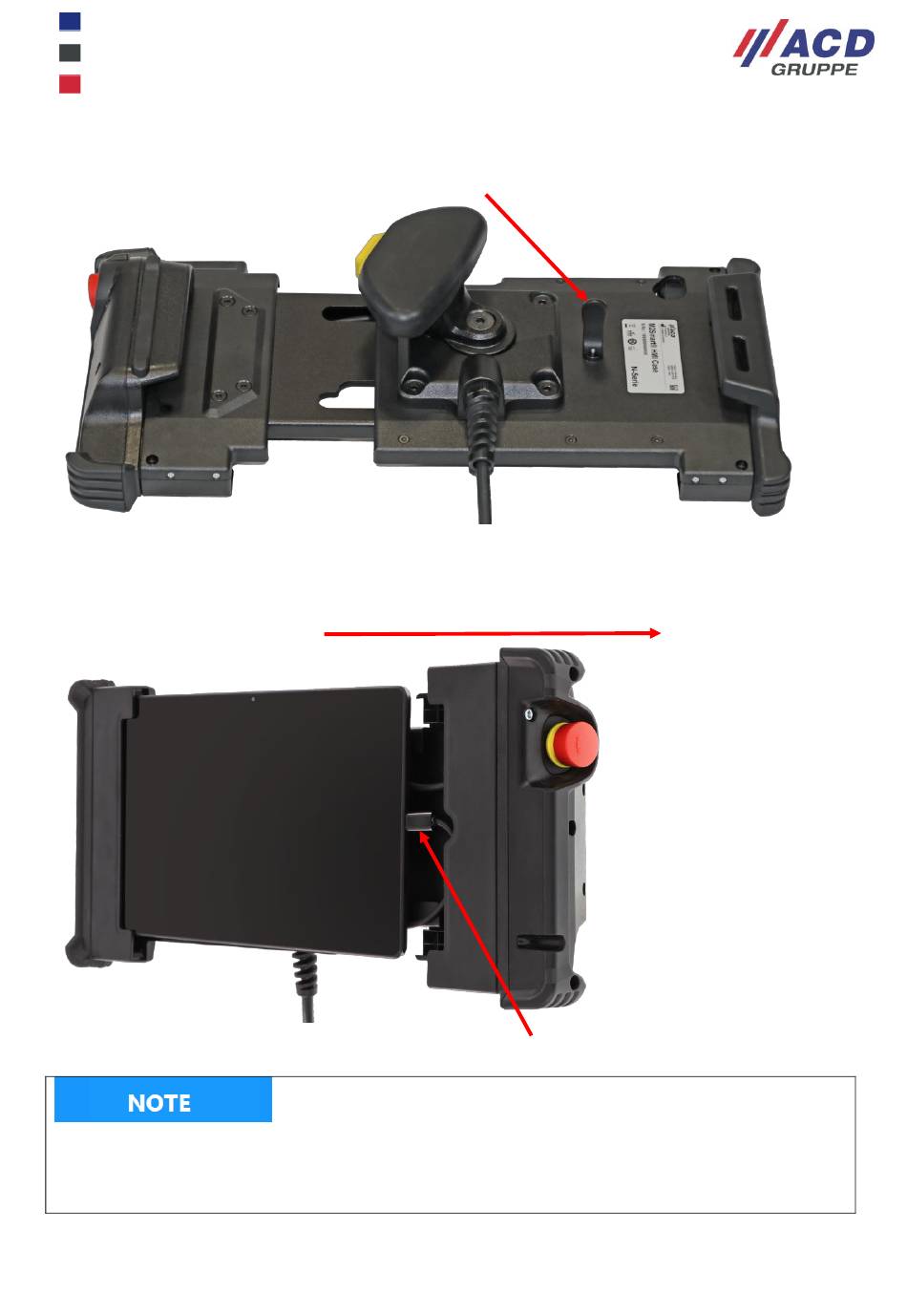

Figure 27: Unlocking the M2Smart HMI Case
21.2.3 Inserting the Tablet and Connecting the USB Cable
®
First pull apart the M2Smart HMI Case and insert the tablet. Plug the USB cable into the tablet.
®
HMI Case – inserting the tablet
Figure 28: M2Smart
Plug the USB cable into the tablet
When using the iPad 8th generation, an adapter from USB-C socket to Lightning is required.
This is not included in the scope of delivery.
The USB plug is only used for charging and is not a data interface on any tablets.
®
