Lenovo Tab M10 Full HD Plus and Huawei MatePad SE:

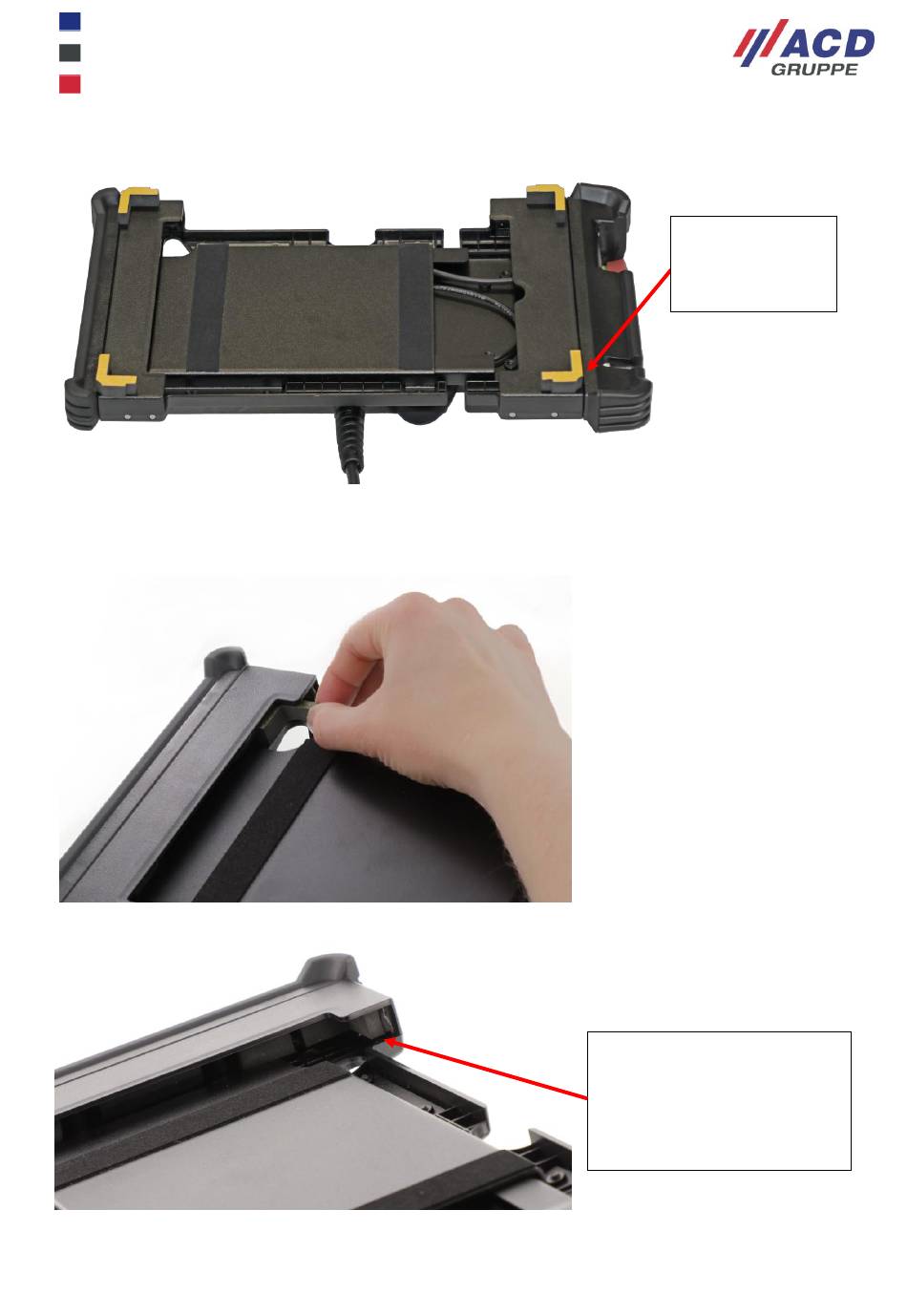

Positioning of the M2Smart
Figure 29: Alignment of M2Smart
Now peel off the adhesive surface protection and attach the four tablet buffer corners:
Figure 25: Attaching the M2Smart
Figure 26: Attaching the M2Smart
®
M2Smart HMI Case_Bedien- Projektierhandbuch_Operating Project Engineering Manual_V1.06_de_en
®
HMI Case tablet buffer corners:
®
HMI Case tablet buffer corners for Lenovo Tab M10 Full HD Plus and Huawei MatePad SE
®
HMI Case tablet buffer corners
®
HMI Case tablet buffer corners
Widening of the
four tablet buffer
corners must point
up or down.
Peel off the adhesive surface
protection and attach the tablet
buffer corners. Push the tablet
buffer corners back as far as
they will go. Press the adhesive
surface upwards.
