ACD GRUPPE M2Smart HMI Case Projektierungshandbuch Seite 48

20.5 Technical data for M2Smart
Housing
Protection class
Equipment class
Overvoltage Category
Pollution Degree
Fall protection
(without tablet)
Operating temperature
Operating temperature
USA and Canada
Storage temperature
Environmental
conditions
Device dimensions
Weight
Approvals
Table 18: Technical data
21 Handling of the M2Smart
21.1 Right and Left-Handed Operation
®
The M2Smart HMI Case is designed for right- and left-handed operation. The device is always delivered
ready for right-handed operation.
To change to left-handed operation, change the position of the handle:
1. Loosen the screw of the handle with a Torx T30 screwdriver.
®

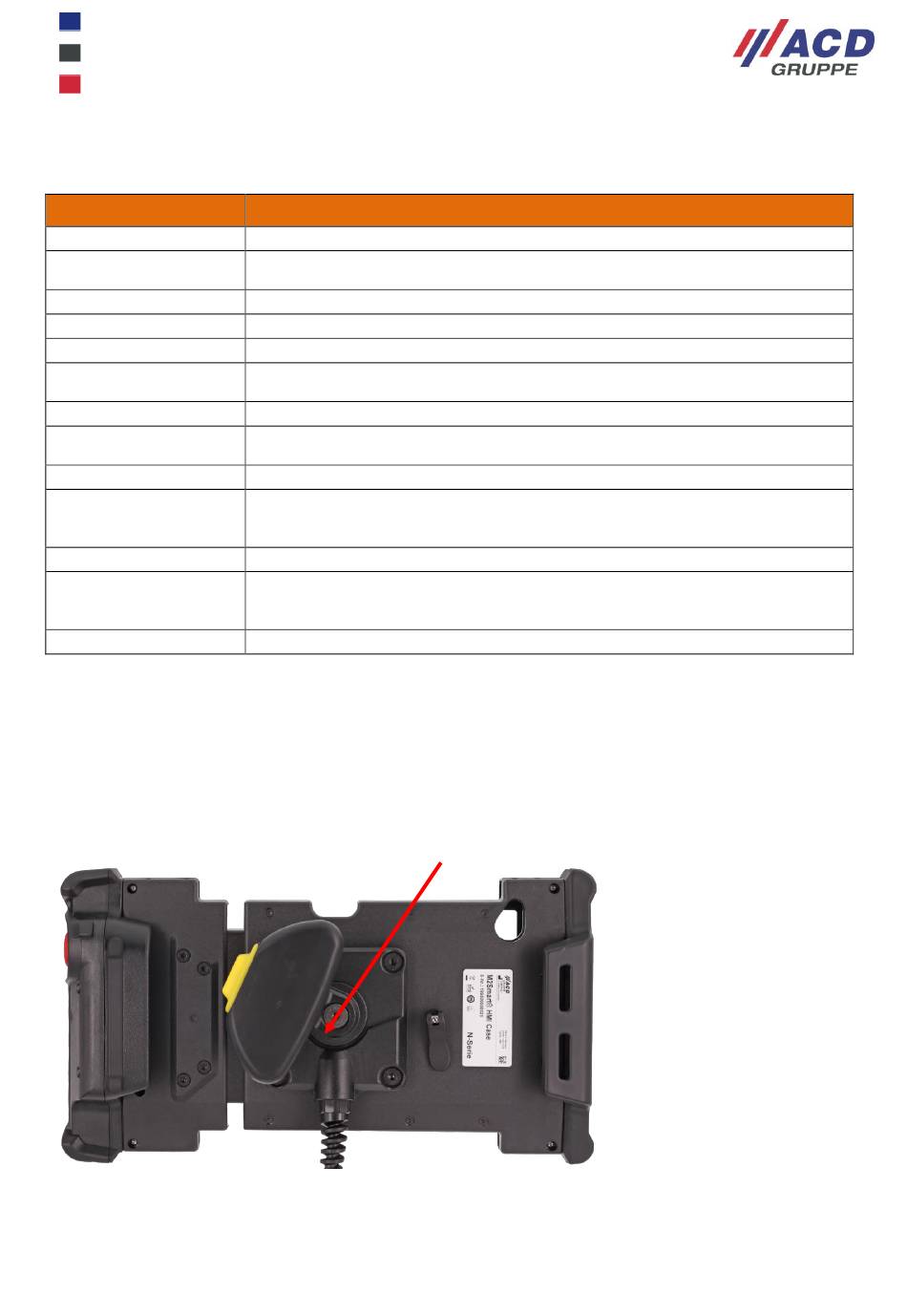

Figure 22: M2Smart HMI Case rear adjustment handle 1
®
M2Smart HMI Case_Bedien- Projektierhandbuch_Operating Project Engineering Manual_V1.06_de_en
®
HMI Case
ABS/aluminum
IP65 according to EN 60529
UL50/50E Type: 1
III (Selv)
II
2
Drop height: 1.2 m on concrete
-25 °C to 50 °C (no icing)
-25 °C to 40 °C (no icing)
-25 °C to 50 °C (no icing)
Rel. humidity: 45% - 80% non-condensing
Altitude: Max. 2000 m
Indoor use
355 – 416 mm x 197 mm x 93 mm
1050 g (without cable)
1400 g (with 5-meter cable)
1750 g (with 10-meter cable, optional)
CE, UKCA, UL E527611
®
HMI Case
Technical data
