If the device is not used as intended or as specified by the manufacturer, the protective devices could be
impaired or even become inoperative.
18 Standards and Directives
18.1 Information in Relation to the MRL 2006/42/EC
This operating and project engineering manual is structured in accordance with the Machinery Directive
2006/42/EC.
The Machinery Directive 2006/42/EC sets out safety requirements for machinery and installations placed
on the market in the European Union.
18.2 Information on Functional Safety according to EN ISO 13849/Performance
Level
The graph for determining the required Performance Level (PL) is based on the identification of the risk and
the resulting need to reduce it to an acceptable level.

Low risk results in PL = a (low risk mitigation measures)

High risk results in PL = e (comprehensive risk mitigation measures)

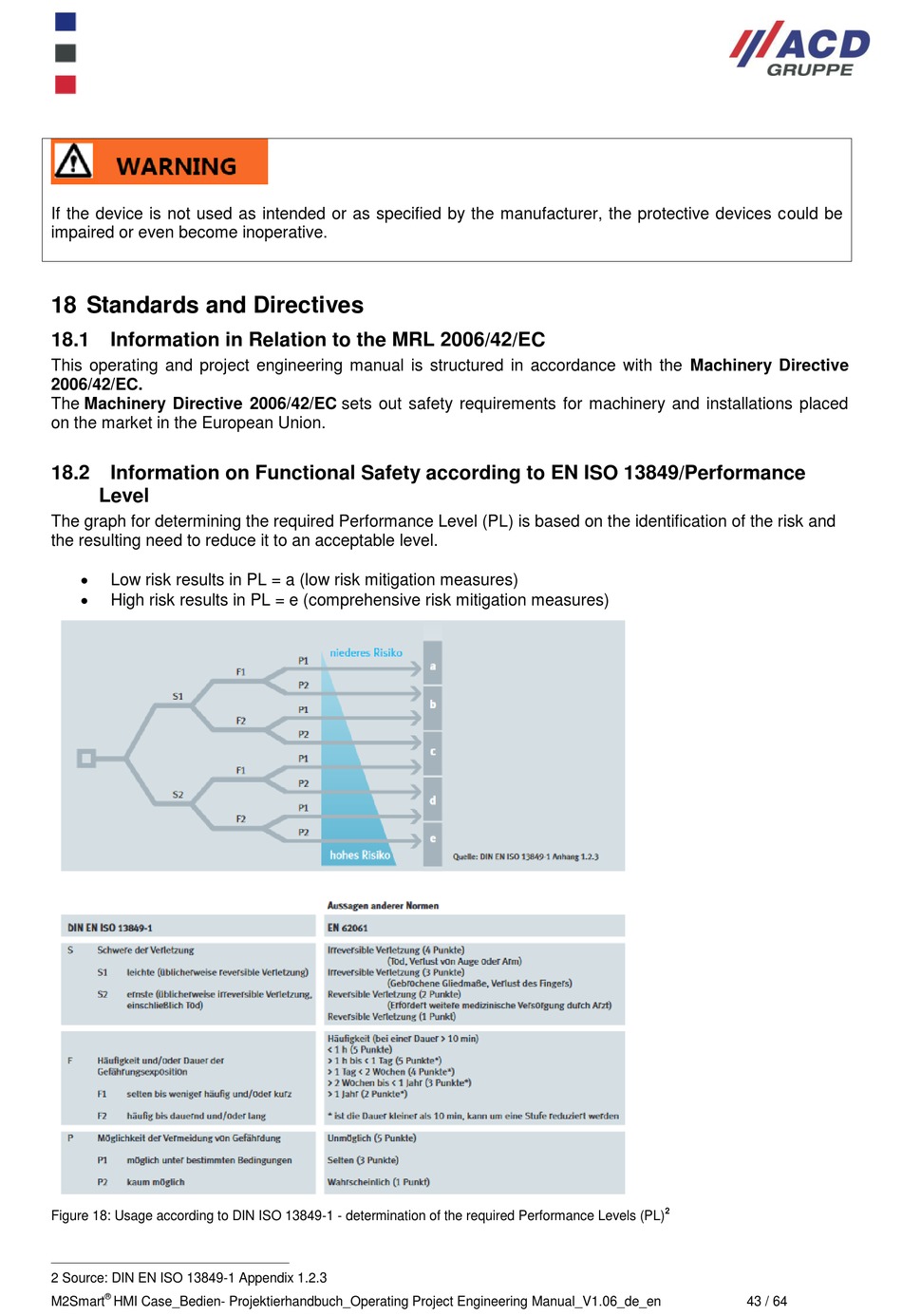

Figure 18: Usage according to DIN ISO 13849-1 - determination of the required Performance Levels (PL)
2 Source: DIN EN ISO 13849-1 Appendix 1.2.3
®
