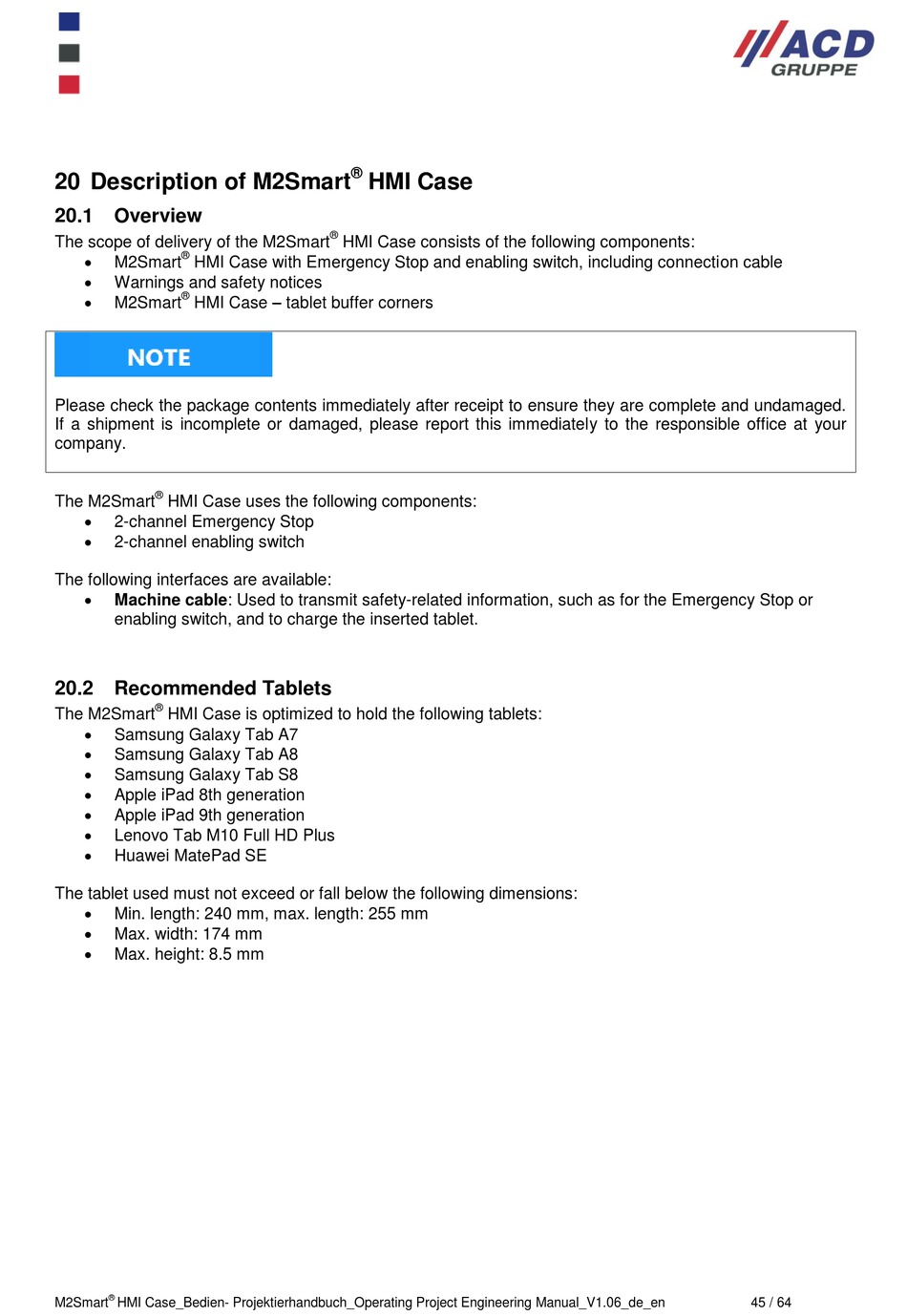

20 Description of M2Smart
20.1 Overview
The scope of delivery of the M2Smart
 ®
M2Smart HMI Case with Emergency Stop and enabling switch, including connection cable

Warnings and safety notices
 ®
HMI Case – tablet buffer corners
M2Smart
Please check the package contents immediately after receipt to ensure they are complete and undamaged.
If a shipment is incomplete or damaged, please report this immediately to the responsible office at your
company.
®
The M2Smart HMI Case uses the following components:

2-channel Emergency Stop

2-channel enabling switch
The following interfaces are available:

Machine cable: Used to transmit safety-related information, such as for the Emergency Stop or
enabling switch, and to charge the inserted tablet.
20.2 Recommended Tablets
®
The M2Smart HMI Case is optimized to hold the following tablets:

Samsung Galaxy Tab A7

Samsung Galaxy Tab A8

Samsung Galaxy Tab S8

Apple iPad 8th generation

Apple iPad 9th generation

Lenovo Tab M10 Full HD Plus

Huawei MatePad SE
The tablet used must not exceed or fall below the following dimensions:

Min. length: 240 mm, max. length: 255 mm

Max. width: 174 mm

Max. height: 8.5 mm
®
M2Smart HMI Case_Bedien- Projektierhandbuch_Operating Project Engineering Manual_V1.06_de_en
®
HMI Case
®
HMI Case consists of the following components:
