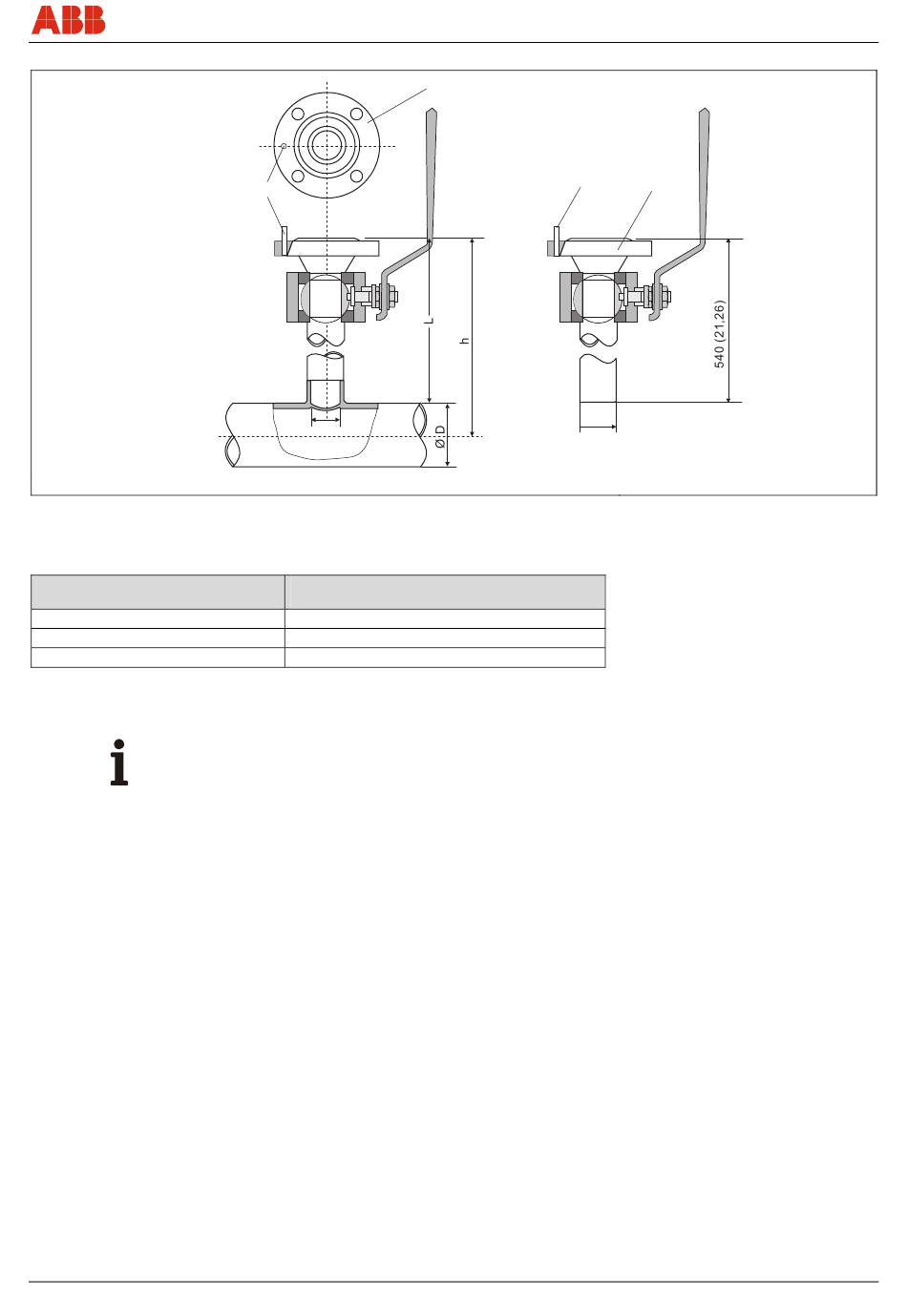

Fig. 5: Dimensions in mm (inch)
1 Centering pin
2 Sealing ring groove
Flowmeter sensor length h
in mm (inch)
263 (10.35)
425 (16.73)
775 (30.51)
1) This maximum pipe diameter specification is only valid when installing the sensor unit centrically in the pipe.
For larger diameters or angular ducts a non-centric sensor position is taken into account for calibration.
Important (Notice)
Deviations from the stated dimension and position tolerances cause additional measuring
uncertainty.
CI/FMT400-VTS/VTCS-X1
2
1
Ø d
min. 28 (1,10)
← Direction of flow
Outer pipe diameter min. / max.
in mm (inch)
100 ... 150 (3.94 ... 5.91)
> 150 ... 500 (5.91 ... 19.69)
> 500 ... 1150 (19.69 ... 45.28)
Sensyflow FMT400-VTS, FMT400-VTCS
1
Ø 48,3 (1,90)
3 Connection flange DN 25 (1")
D Outer pipe diameter
1)
Mounting
3
G00803
EN - 15
