2Machine description

2.1.0

Technical features

TECHNICAL FEATURES
Width 340 mm
Height 300 mm
Depth (Length) 415 mm
Weight 19 Kg
Power voltage 90-130V 50-60 Hz / 220-240V 50-60 Hz
Absorption 250W (35W in stand-by)
Motor DC electronic motor
Cutter End milling cutter in widia
Cutter speed 10000 rpm
Movements/Axes 3 stepper motor-operated axes
Input / Output 2 USB ports, 2 RS232 serial ports, 1 LAN port
Mainboard with ARM Cortex A8 CPU, 256
Electronic Equipment MB RAM, NAND 1 GB memory, high resolu-
tion axes control
Key Re a d i n g /
Electric contact
Decoding System
Lighting LED - lighted cutting bay
O p e ra t i n g
0°C ÷+ 40°C
temperature
Acoustic pressure
78,5
level Lp (A)dB(A)
CONSOLE TECHNICAL FEATURES
7" industrial colour touch screen, 16:10, res-
User Interface olution 800x480 px, VGA
Power Supply DC 24V (fed by the key cutting machine)
4 Keyline S.p.A.
MACHINE DESCRIPTION
2.2.0

Main features

The NINJA VORTEX professional key-cutting machine is an
electronic machine that operates to decode, code and engrave
the heads of high security laser and dimple keys.
The NINJA VORTEX technology, based on the combined action of
three axes and on a wide database, guarantees state-of-the-art per-
formance and high decoding and cutting speed. Moreover, its engrav-
ing system makes it possible to customise the key metal head
through graphic etching, without the need to remove the key from the
jaw.

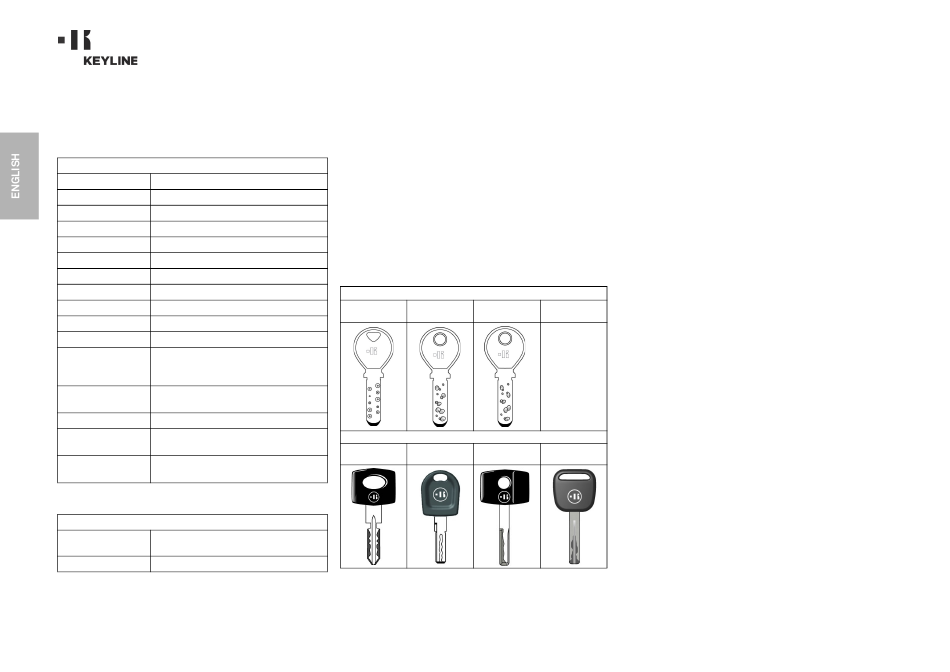

The key cutting machine NINJA VORTEX is used to duplicate the fol-
lowing types of keys:
Dimple keys with flat and inclined bitting
Flat bitting 15°-inclined 45°-inclined
bitting bitting
Laser-type keys
4 External bit- Double internal Double external
ting bitting bitting
NINJA VORTEX
2.2.1

Machine accessories supplied with the machine

• 1 pc. - 4 mm T-shaped Allen key
• 1 pc. - d. 1,5 mm hexagonal key
• 1 pc. - d. 2 mm hexagonal key
• 1 pc. - d. 2,5 mm hexagonal key
• 1 pc. - d. 3 mm hexagonal key
• 1 pc. - d. 4 mm hexagonal key
• 1 pc. - T10 torx key
• 1 pc. - Brush
2.3.0

Jaws supplied with the machine

The machine is supplied with the following jaws:
• Model BI998: C01 jaw for dimple keys
• Model BI998-I: C01 jaw for dimple keys and jaws A01, A02,
A03 for laser car keys
Note: Keyline offers a wide range of jaws for special purposes,
that can be requested by the user at need.
2.4.0

Supplied cutters

The machine is supplied with the following cutters:
• Model BI998: V001 cutter for dimple keys
• Model BI998-I: V001 cutter for dimple keys and V003 cutter
4 internal bit-
for laser keys
ting
Note: Keyline offers a wide range of cutters for special purpos-
es, that can be requested by the user at need.
Man. cod. B409959FG Copyright by Keyline - Italy
