Selecting a temperature for the time phase:
• Use the handwheel to set the required temperature. Alterna-
tively, you can use the moon/sun button to select the comfort
temperature or reduction temperature as the required tem-
perature.
• Confirm your setting using the OK button.

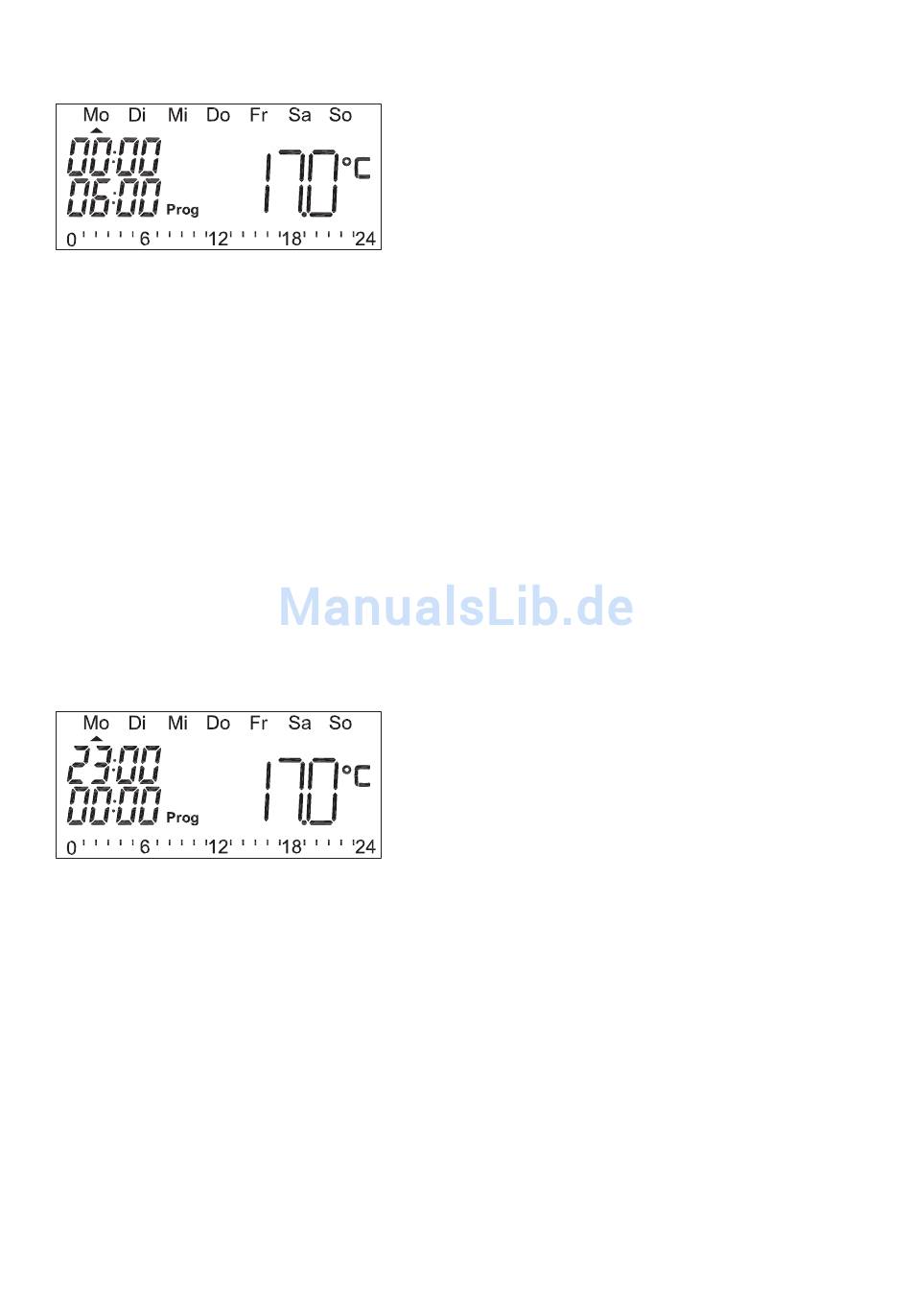

The display now shows the next time phase, beginning with
the end time of the previous phase. Once again, the top line
shows the start time, which cannot be changed, and the bottom
line shows the end time, which can be changed. You can now
change the time and temperature as described above. You can
repeat this process until you have set 24 switching times or until
you have defined temperatures up to 24:00 or 00:00.
The scale at the bottom of the display follows the changes that
are taking place at any given time, so you can see the effects on
the day's profile directly. The blocks in the scale are displayed
whenever the temperature value of the program is higher than or
equal to the comfort temperature.
You can conclude a time program by setting 0:00 as the end
time. Once you have created 24 time phases, 0:00 is automatic-
ally set as the end time. "OK" is then shown on the display to
signal that the program has been concluded.
