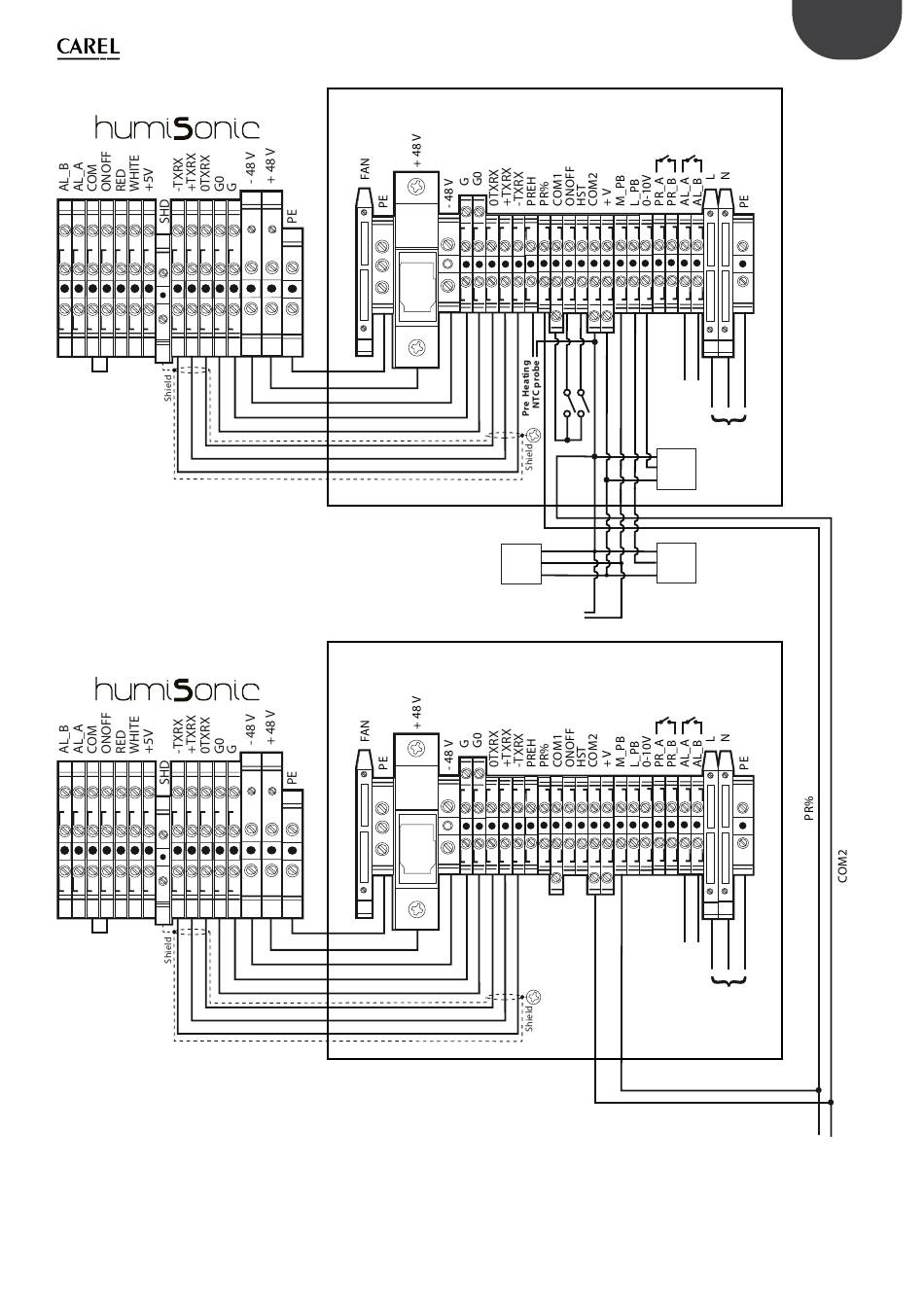

Serial connection
Serial connection
Fig. 12.o
MAIN (1)
MASTER (1)
Complete panel terminal block
Regulation probe
(0 to 1 VDC,
M - G0
0 to 5 VDC)
OUT H/T
(G+)
NTC probe
MAIN (2)
MASTER (2)
Complete panel terminal block
47
"humiSonic ventilation" +0300063DE - rel. 1.4 - 25.10.2022
GER
Alarm
Power Supply
Regulation
M - G0
probe (*)
OUT H
(G+)
(0 to 10 VDC)
Limit probe (*)
M - G0
(0 to 1 VDC,
OUT H
(G+)
0 to 5 VDC)
Alarm
Power Supply
PR%
COM2
until n.4 MASTER MAIN
