EP 6PTX HR

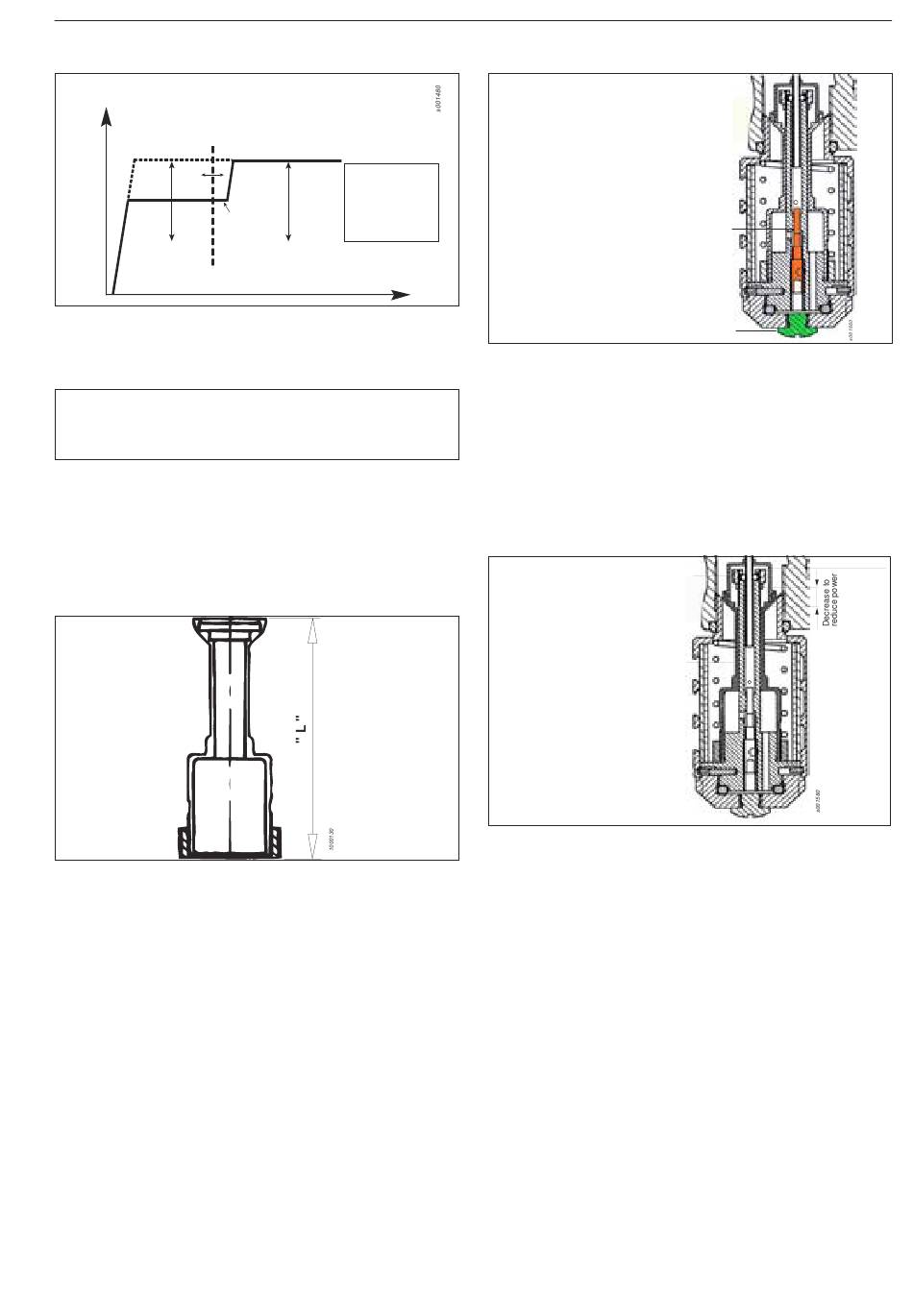

Fig. 9 AutoTrim general
Speed/
power
Free speed
..............................................................................................................................
100%
1
2
...............................................................................................................................
70%
A
1-2 pulses
.....................................................................................................................................
~50%
The AutoTrim valve gives a reduced speed during rundown. After 1-2
pulses on a joint it shifts automatically to full speed/power for the rest
of the tightening.
Note
In most cases the factory settings give best performance.
Only experienced users should adjust the AutoTrim valve.
Possible adjustments:
Free speed (factory set to approx 70% of full speed). Switch point
from reduced to full power (factory set to 1-2 pulses) for standard,
non reporting (RE) applications. Power during pulsing (factory set to
full power).
Fig. 10 Adjustment of free speed
Further speed reduction could be needed on very hard joints (<30°) at
low torque levels. Less or no speed reduction could be used when
tool is used only on soft joints.
The factory setting 'L' is depending on size of tool:
Increase 'L' for increased free speed
Reduce 'L' for reduced free speed
Factory setting of 'L' (±0.1) mm = 39.2 mm on 6 PTX
Pulsing
Adjustments
B
C
3
A = Free speed
B = Switch point
C = Pulsing power
Switch point alternatives:
1 - direct shift
2 - shift after 1-2 pulses
3 - no shift
Atlas Copco Tools - No. 9836 1948 00
Fig. 11 Adjustment of switch point
• Remove the plug (1)
• Adjuste valve (2)
(with 1.5 mm Allen key)
• Restore plug (1) (without plug
the AT-valve will not switch)
If the valve is too much closed
the Auto Trim valve with not shift to
open position when pulsing starts.
If the valve is too much open
the Auto Trim will directly open to full
speed and power
Time
Target Tool should switch from reduced to full power after 1-2
pulses. The AT-valve is factory set for proper operation
for use between 4-7 bar.
Clockwise (+) rotation delays the switch point (closes the needle
valve) and vice versa.
From fully closed (+) position, normal operation is with the needle
valve between 6 and 8 turns open (–) depending on tool size.
Note The plug must be in place, otherwise AT-valve will not
switch.
Fig. 12 Adjustment of pulsing power
• Factory set to full power
(nut, black plastic (1), flush
with upper end of shaft (2)
• Turn nut CW to reduce power.
The AT-valve is factory set to full power. Pulsing power can be
reduced on low or medium torque levels on hard or medium hard
joints to improve accuracy (more pulses before shut of).
If the tool is used for reporting applications (RE) the needle valve has
to be turned more open (–) to compensate for the air volume in the
signal hose.

Technical Instructions

2
1
Flush = max power
1
2
