EP 6PTX HR

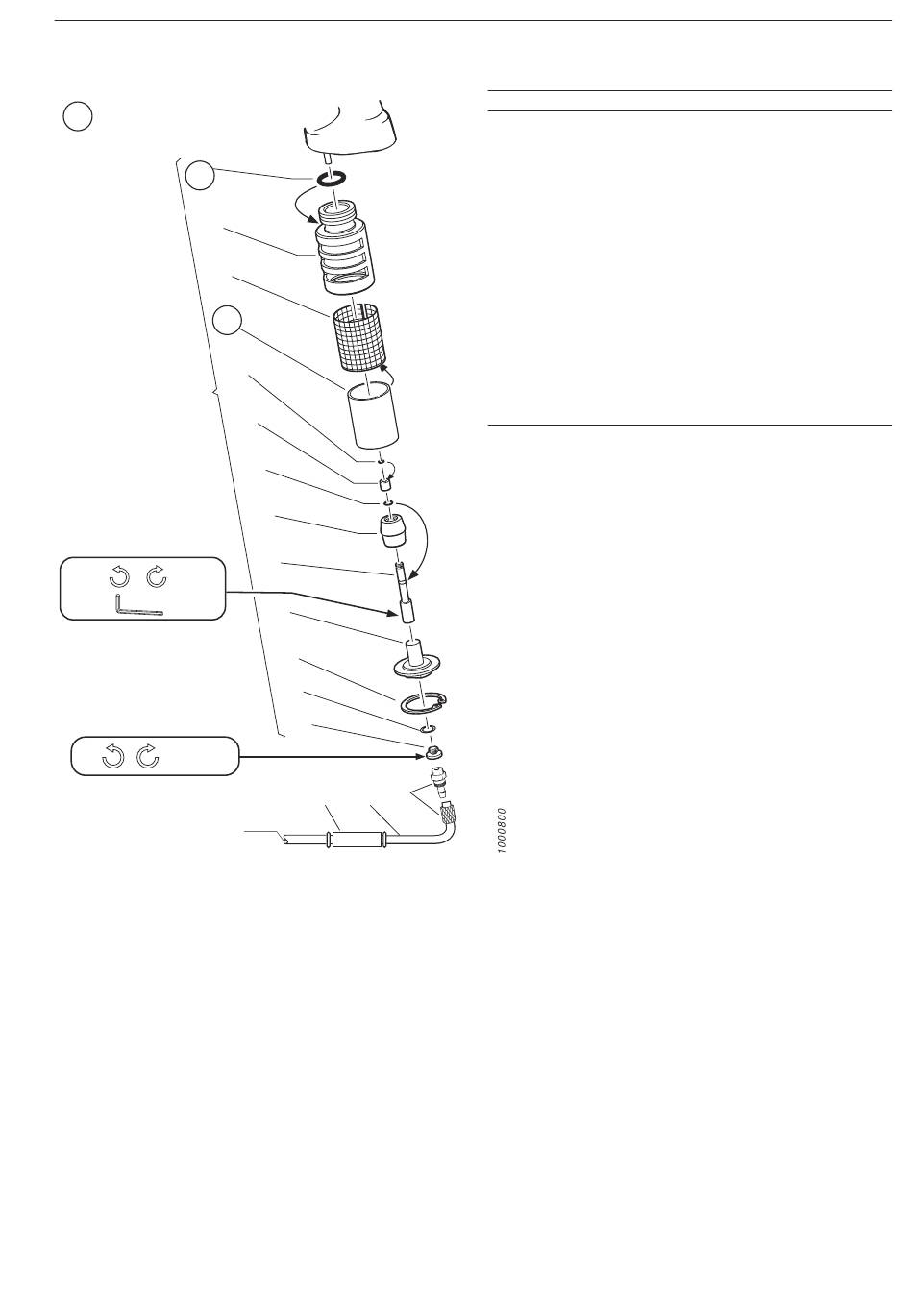

Fig. 6 Silencer with Trim valve
= Included in Service Kit
51
52
53
54
59
50
Increase Decrease
3 mm
OFF max. 0.2 Nm
To air pressure sensor
58
62
60
61
65
66
69
67
307 306 304
Atlas Copco Tools - No. 9836 1948 00
Ref. No. Ordering No.
50 (51-67) 4250 1878 81
51 –
52 –
53 4250 1881 00
54 –
58 4250 2021 11
59 0663 2102 46
60 4250 2019 00
61 4250 2021 01
62 0663 9003 00
65 4250 1894 00
66 0335 2125 00
67 4250 2222 00
69 4250 2313 00
Accessory Included – For The Re-Signal
304 0583 8100 60
306 4250 1854 00
307 0583 8100 11
a Included in Service Kit – 4081 0252 90
Spare parts list
NB Qty Description
1 Silencer with Trim valve,
compl. (steel)
a 1 O-ring (12.37x 2.62)
1 Casing
1 Wire netting
a 1 Filter
1 Sleeve
1 O-ring (1.8x1.2)
1 Valve
1 Screw
1 O-ring (3x1)
1 Screw support
1 Circlip (SgH 23)
1 Plug
1 Ring
1 Hose nipple
1 Hose (4/2 mm)
1 Connection (4 mm)
