Atlas Copco ErgoPulse 6PTX HR-Serie Bedienungsanleitung Seite 34

Spare parts list

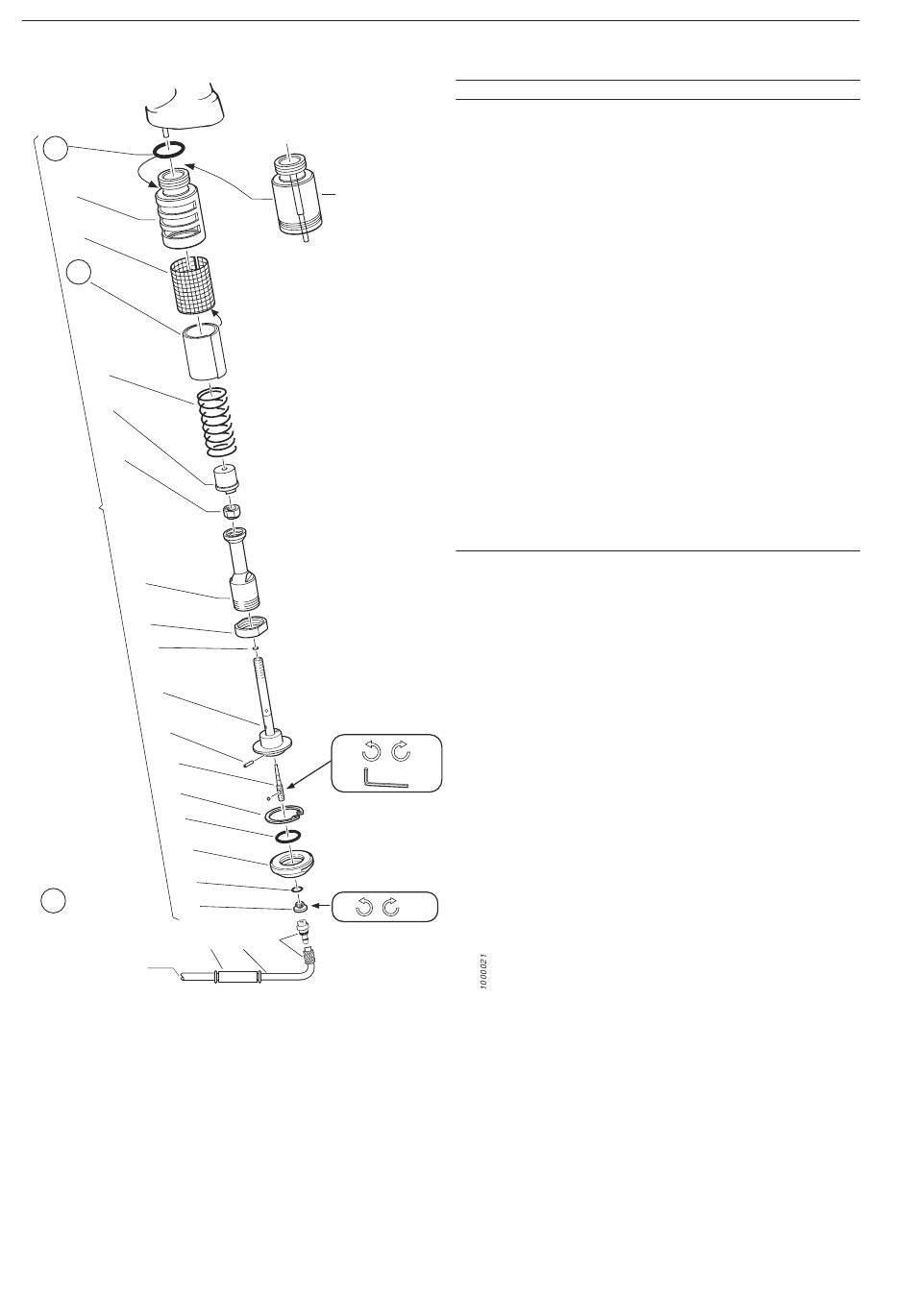

Fig. 7 Auto Trim valve for AT-versions
51
52
53
54
62
59
58
50
60
61
63
65
71
64
66
67
68
69
= Included in
70
Service Kit
To air pressure sensor
34
72
Open
OFF
307 306 304
Atlas Copco Tools - No. 9836 1948 00
Ref. No.
50 (51-71)
51
52
53
54
58
59
60
61
62
63
64
65
66
67
68
69
70
71
304
306
307
Accessory included
Optional accessory
72
a Included in Service Kit – 4081 0252 90
e To be placed between tool handle and Auto Trim valve when checking
function of valve
Close
1.5 mm
max.
0.2 Nm
Ordering No. NB Qty Description
4250 1878 90 1 Auto Trim valve, compl
(steel)
– a 1 O-ring (12.37x 2.62)
4250 1878 02 1 Casing
4250 1881 00 1 Wire netting
– a 1 Filter
4250 2181 00 1 Nut
4250 2308 00 1 Cover
4250 2177 00 1 Valve
4250 2180 00 1 Support ring
4250 2132 00 1 Spring
0663 2109 51 1 O-ring (1.6x1.3)
4250 2175 80 1 Throttle valve
4250 2178 00 1 Bracket
0335 2125 00 1 Circlip (SgH 23)
0663 2118 00 1 O-ring (11.3x2.4)
4250 2179 00 1 Cover
4250 2313 00 1 Seal washer
4250 2222 00 1 Plug
0108 1691 16 1 Spring pin (1.5x6)
0583 8100 60 1 Hose nipple
4250 1854 00 1 Hose (4/2 mm)
0583 8100 11 1 Connection (4 mm)
0462 3500 45 1 Hex. wrench
4080 1151 80 e 1 Sight glass
EP 6PTX HR
